Ubiquiti EdgeRouter 12 User Manual

Hardware Overview

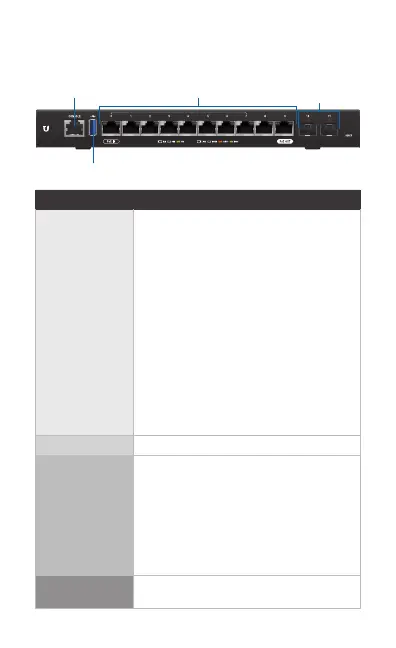

Front Panel Ports
Console
RJ45 (Ports 0-9)
SFP Ports
USB
Interface Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use an
RJ45-to-DB9, serial console cable, also
known as a rollover cable, to connect the
Console port to your computer. (If your
computer does not have a DB9 port,
then you will also need a DB9 adapter.)
Then configure the following settings as
needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
USB Reserved for future use.
RJ45
(Ports 0 - 9)
All RJ45 ports can be used for routing
and support 10/100/1000 Mbps Ethernet
connections. Ports 0 - 7 can be configured
for switching functions using the EdgeOS
Configuration Interface. Port 0 supports
24V Passive PoE In and port 9 supports
optional Passive PoE Out (disabled by
default).
SFP Ports
(Ports 10 - 11)
SFP routing ports are hot-swappable and
support Gigabit fiber SFP modules.

Ubiquiti EdgeRouter 12 Specifications

General

RAM	1 GB DDR3
Flash Storage	4 GB eMMC
Total Ports	12
Gigabit RJ45 Ports	10
SFP Ports	2
Max Power Consumption	20W
Operating System	EdgeOS
Layer 3 Forwarding Performance	3.4 million pps
Total Non-Blocking Throughput	10 Gbps
Certifications	CE, FCC, IC
Power Supply	24V, 1A
Supported Voltage Range	100-240V
Operating Humidity	10 to 90% Noncondensing
Operating Temperature	-10 to 45° C
