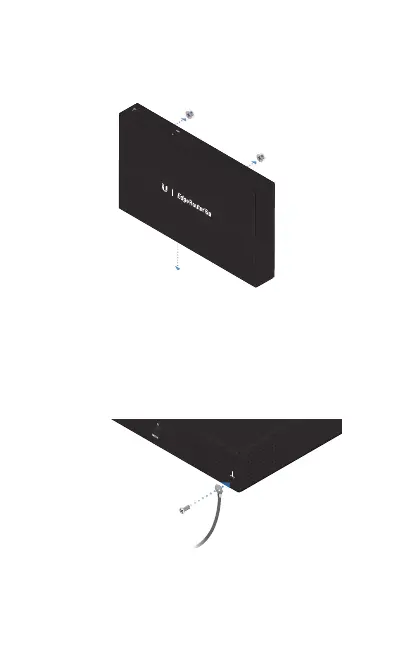

3. Position the EdgeRouter with the Ethernet ports facing
down. Place the wall-mount slots of the EdgeRouter over
the screw heads on the wall. Then slide the EdgeRouter
down to lock it into place.
Grounding the EdgeRouter (Recommended)
The EdgeRouter is grounded through the Power Adapter;
however, you can add optional ESD grounding for enhanced
ESD protection.
1. Attach the Ground Screw to secure a ground wire (not
included) to the Grounding Point.
2. Optional: To secure the Power Adapter cord, insert it into
the Cable Clip and secure the Cable Clip using the Ground
Screw.
3. Secure the other end of the ground wire to a grounding block.
