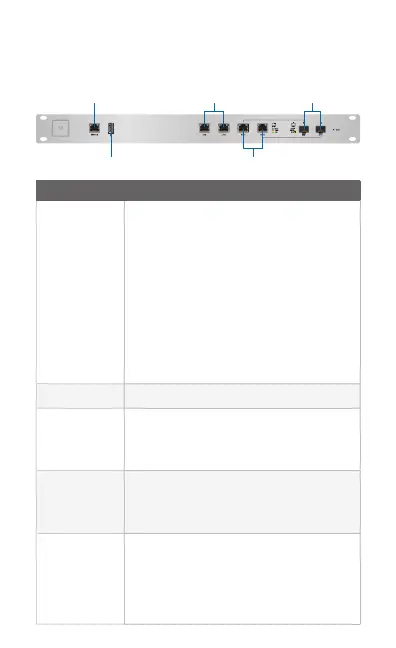

Hardware Overview
Front Panel Ports
Console
SFP
USB
LAN
WAN
Interface Description
Console
RJ45 serial console port for Command
Line Interface (CLI) management. Use
an RJ45-to-DB9 serial console cable, also
known as a rollover cable, to connect
the Console port to your computer. Then
configure the following settings as needed:
• Baud rate 115200
• Data bits 8
• Parity NONE
• Stop bits 1
• Flow control NONE
USB Reserved for future use.
LAN
RJ45 ports support 10/100/1000 Ethernet
connections. By default, the LAN1 port is
set to DHCP Server, and its IP address is
192.168.1.1/24.
WAN
RJ45 ports support 10/100/1000 Ethernet
connections. A WAN port is active only if
the corresponding SFP port is empty. By
default, the WAN1 port is set to DHCP Client.
SFP
SFP ports are hot-swappable and support
10/100/1000 fiber SFP modules. If an SFP
module is plugged in, then the SFP port is
active, and the corresponding WAN port is
deactivated. By default, the SFP1 port is set
to DHCP Client.
