Smart WIFI Robot Car Kit for Arduino
11
www.uctronics.com
2.4.1 Contents
 4pcs Wheels
 4pcs Geared Motors (1:48)
 8pcs T-type Fastener
 1pcs 18650 Battery Container
 1pcs Acrylic Car Chassis
 Screws+ Nuts

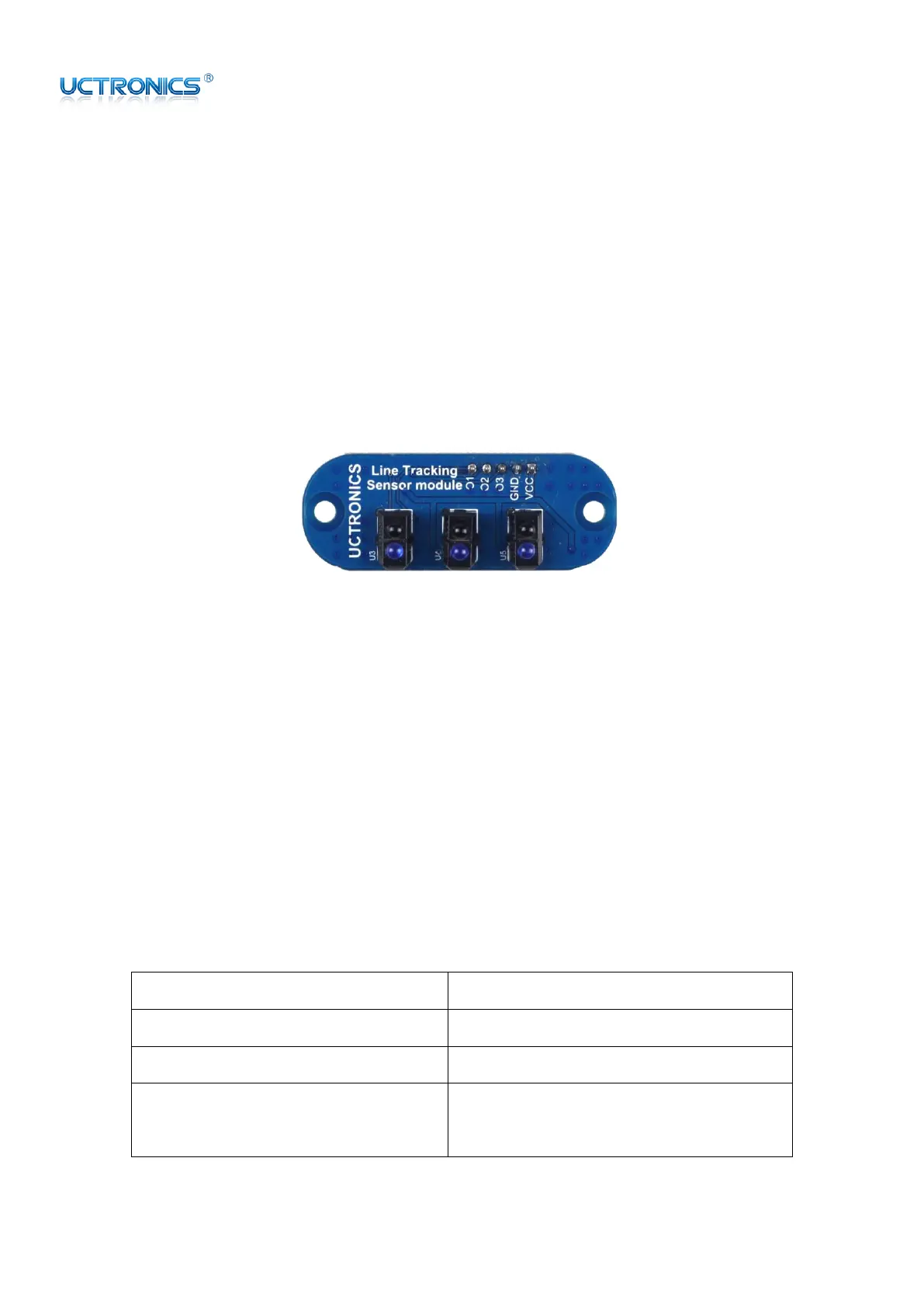

2.5 Line Tracking Module
The line tracking module detects lines in the surrounding environment, and transfers the
data to the processor. The processor analyzes the data, and sends a command to control the
movement of the wheels.
2.5.1 Working Principle
The TCRT5000 IR sensor on the line follower has a TX and RX inside. If a bright color surface
is detected in front of the sensor, such as a white paper (about 1cm away), most of the IR
rays will be reflected; if a dark color like black surface is detected, most of the rays will be
absorbed, while only a small amount will be reflected. The RX will output different analog
signals according to the intensity of the reflected IR light.
2.5.2 Specification
Working voltage: DC 5V
Detecting range: 1~20mm
Working temperature: 0°C ~ + 50°C
Detector type: phototransistor
Emitter wavelength: 950 nm
PCB dimension: 20mm×54mm
3 output channel
Output level: TTL level (black line of low
effective, high efficient white line)
