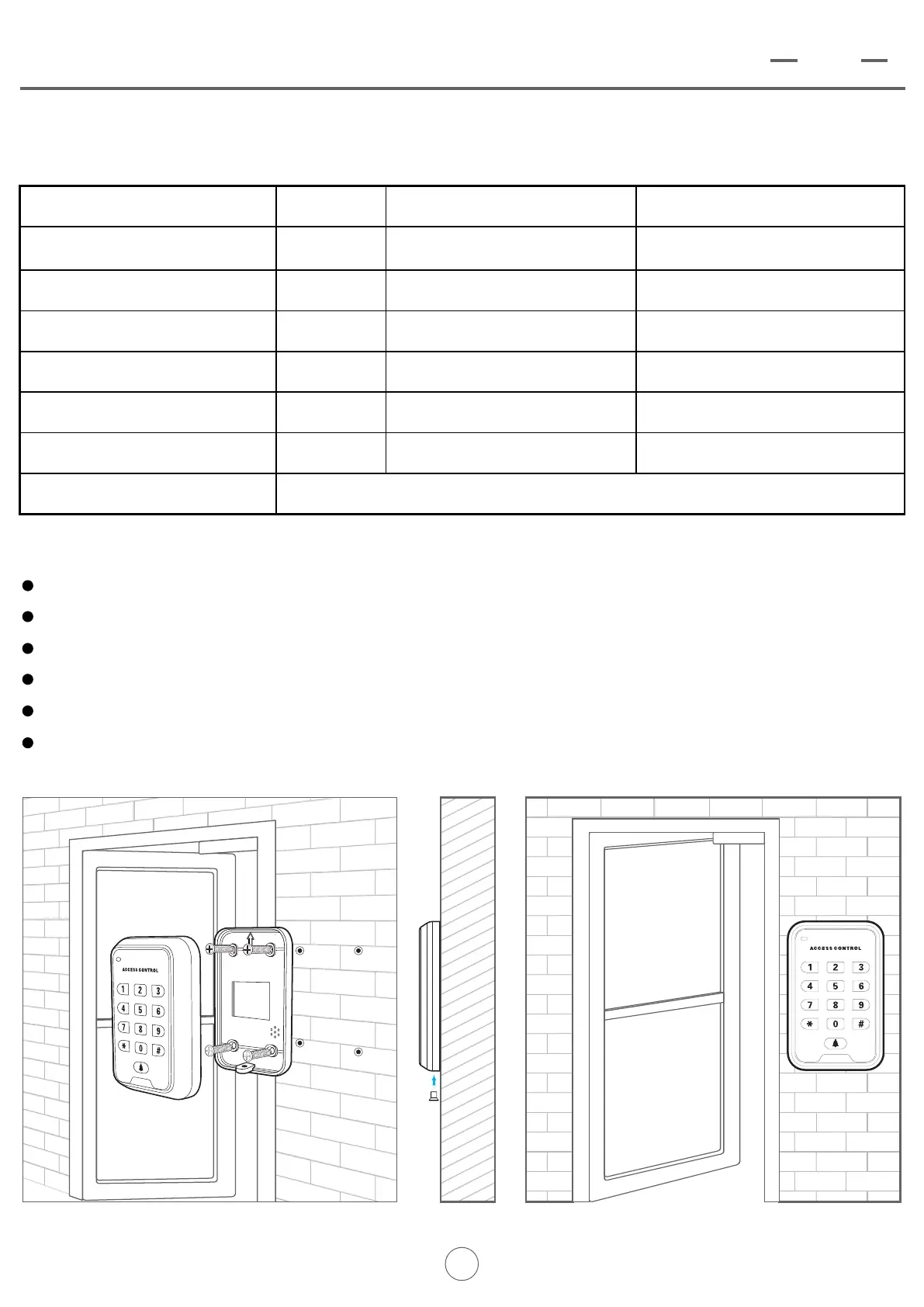

Remove the back cover from the keypad
Drill 4 holes on the wall for the self-tapping screws and 1 hole for the cable
Put the supplied plastic anchors into the 4 holes
Fix the back cover firmly on the wall with 4 self-tapping screws
Thread the cable through the cable hole
Attach the keypad to the back cover
5 Installation
4 Specifications
Operating Voltage
12VDC
Lock Output Load
Max. 1.5A
Card Capacity
1000
Card Type
Standard 125KHz EM
PIN Capacity
500
Door Open Time
0-99 seconds
Card Reading Distance
Max. 6cm
Operating Temperature
-40°F-140°F
Operating Humidity
10%-90%RH
Waterproof Enclosure Material ABS Plastic
Product Weight
Dimensions
Wiring Connections
Electric Lock, Exit Button, Bell
3.53oz
Idle Current
50mA
No
4-21/64″x2-51/64″x29/32″
2
Wall
