T2-602 T2-604 T2-5001
T2-SERIES

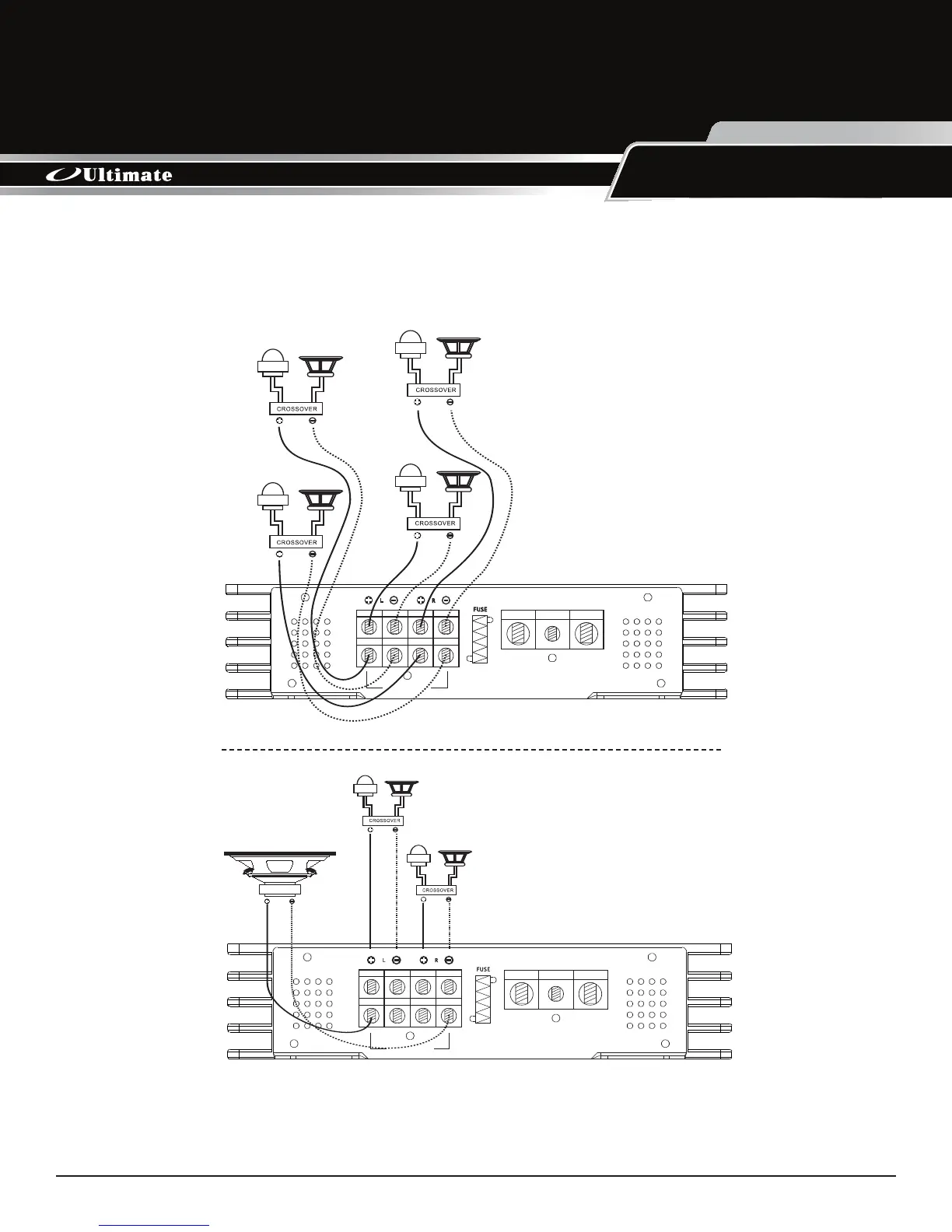

T2-604 – Wiring Configuration
4 OHM BRIDGED
REM
+12v
GND
FRONT
REAR
4 channel configuration
Note: Use a minimum of 8ga power and ground on this amplifier.
