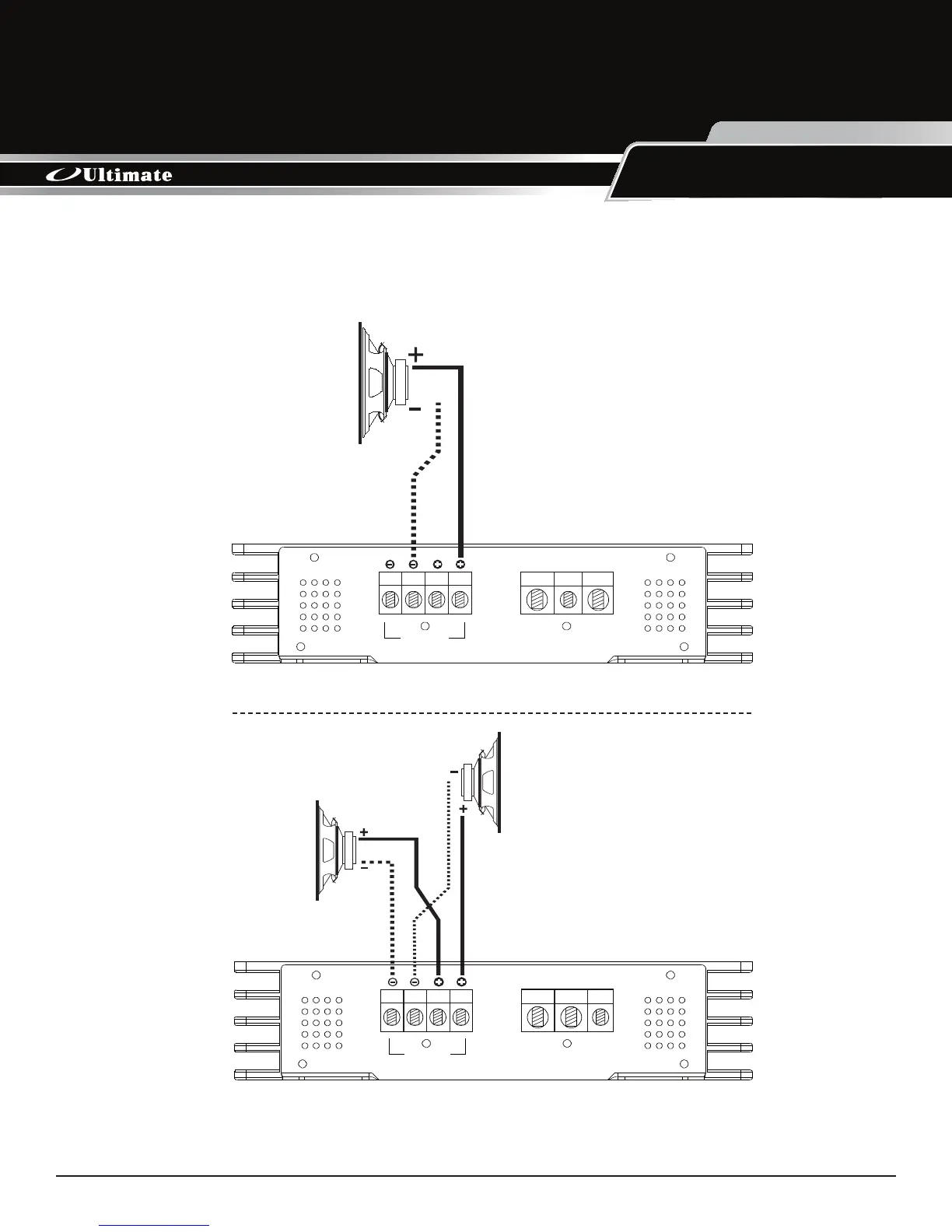

T2-5001 – Wiring Configuration
REM
+12v GND
2 OHM MINIMUM
1 woofer configuration
2 ohm minimum
positive and negative terminals in parallel with each other
REM
+12v GND
2 OHM MI NIMUM
4 ohm woofer
4 ohm woofer
2 woofer configuration
Note: Use a minimum of 4ga power and ground on this amplifier. A 40 amp fuse is required.
