HIGH LEVELHIGH LEVEL

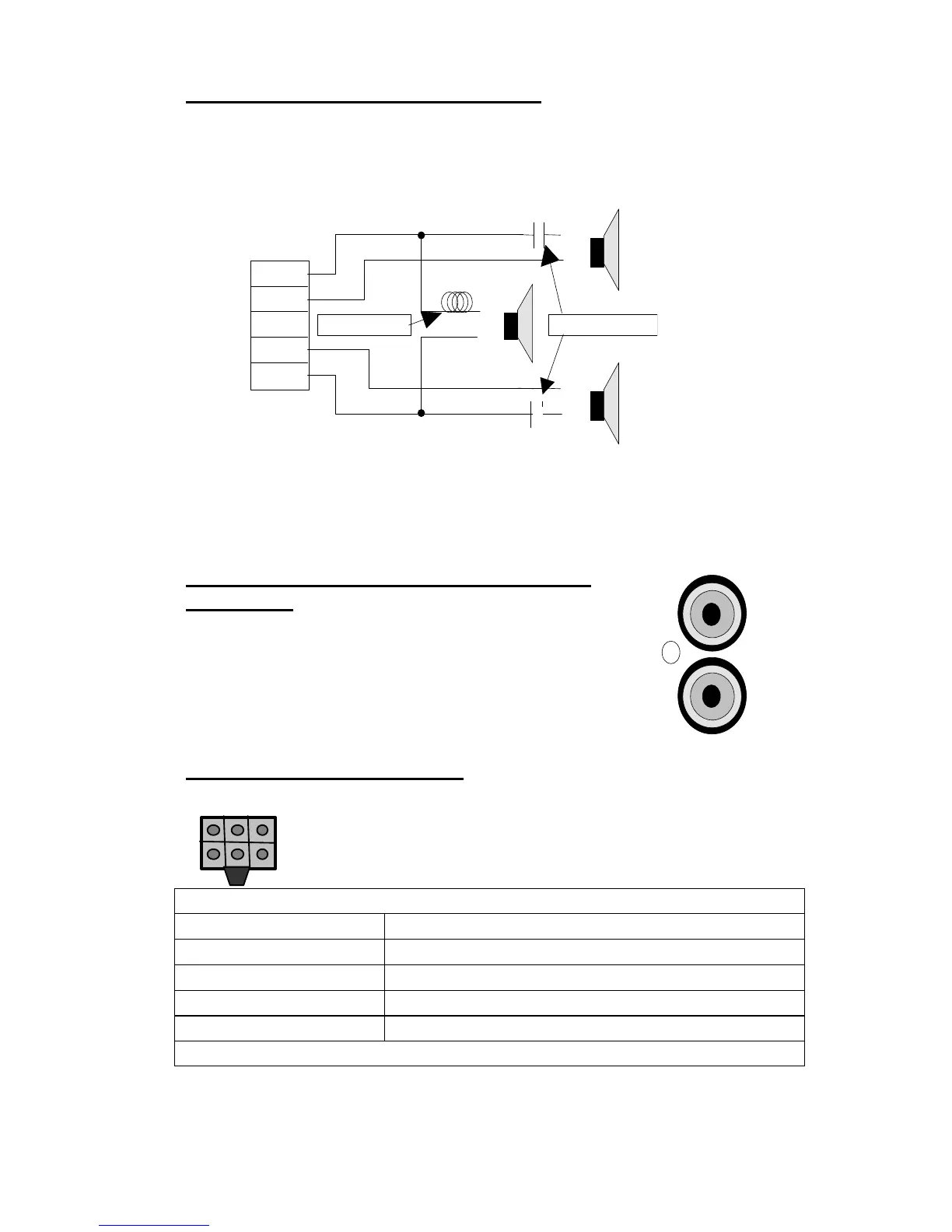

2+1 MODE WIRING DIAGRAM-
Use 100 Volt, non-polar capacitors, and connect them in series with the
stereo speakers as shown in the diagram. Connect the inductor in series
with the mono speaker as shown in the diagram. Be sure the inductor is
rated to handle the power of your amplifier.
1.5 Installation- Input
Connections
Low Level, High Impedance, Gold Plated RCA
Input Jacks-
For connecting to a source providing preamp level
outputs. Use heavy duty RCA patch cords designed
for mobile applications . Run the patch cables
carefully, maintaining as much distance as possible
from power, speaker, and accessory wiring. Make
sure the RCA plugs fit tightly for a secure connection.
Speaker Level Input Connector-
Use the supplied wiring harness to connect the speaker
outputs from the source unit(AM/FM/CD/DVD or Cassette)
to the “HIGH LEVEL” input.
Wiring Harness Color Code- 2 Channel
White Wire
A Channel Positive( + )
White/Black Wire
A Channel Negative( - )
Gray Wire
B Channel Positive( + )
Gray/Black Wire
B Channel Negative( - )
Black Wire Ground
No Other Connection
(+)
(
-
)
(+)
(
-
)
(+)
(
-
)
(A+)
(A-)
(B+)
(B-)
CAPACITORSINDUCTOR
