Ulvac GLD-040 - Changing the Voltage Class; Fig. 6 Changeover Switch in the Terminal Box

-9-
3.4 Changing the voltage class
Voltage class of power sources is changed by the changeover switch in the terminal box.
100-120V class and 200-240V class are prepared.
When shipping from the factory, the Voltage class is set for 100-120V class.
Fig.6. shows how to approach the changeover switch and to change voltage class.
Unplug cords for power supply before changing the voltage class. Otherwise an
electric shock occurs.
1-phase, 100-120V class power source 1-phase, 200-240V class power source

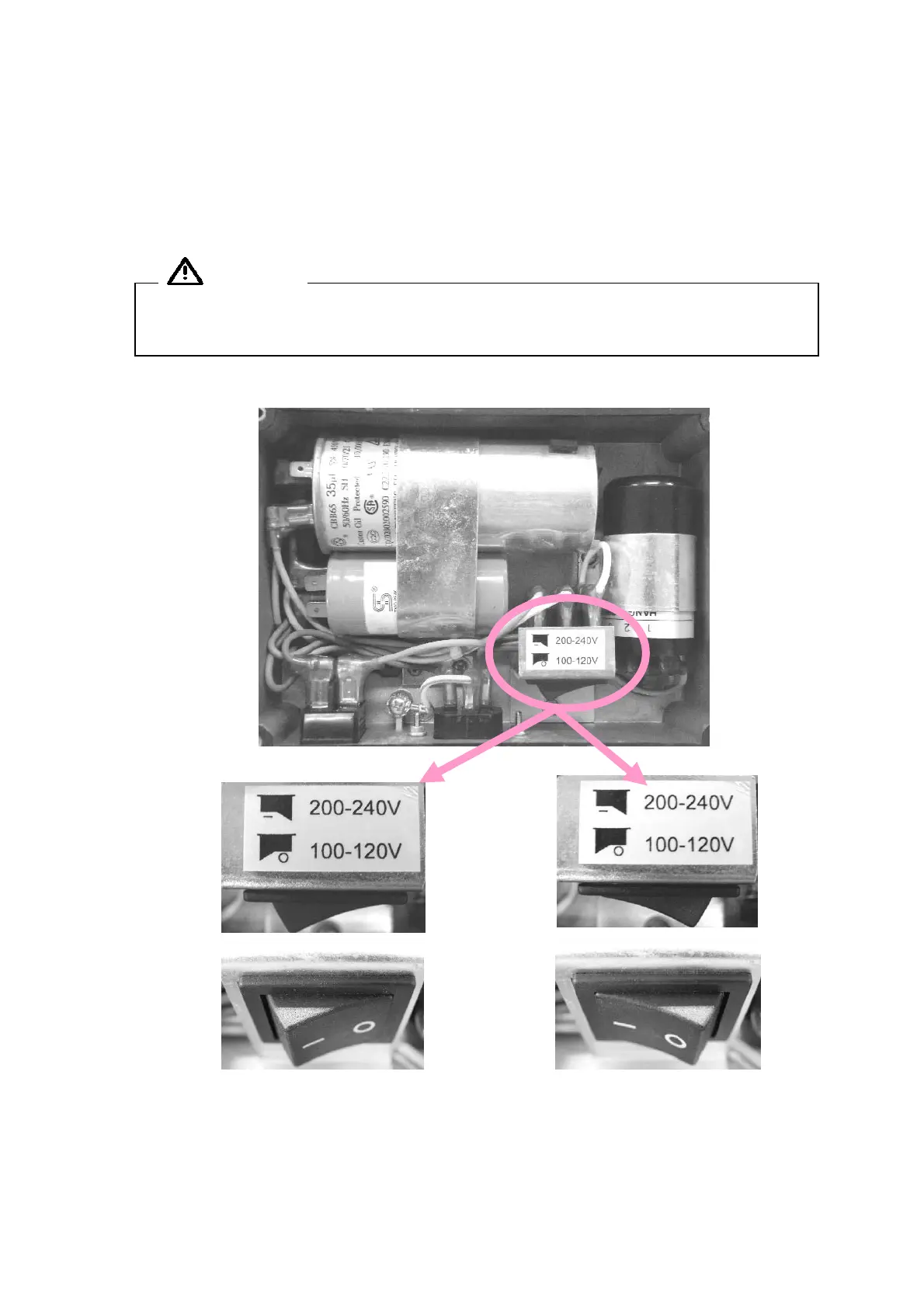

Fig. 6 Changeover switch in the terminal box
Warning
