QED USER MANUAL 8
Hardware Install
Mounting Bracket
The QED Sensor and bracket
come attached together in the
box. Slightly loosen the black M6
15 mm screws that are holding
the sensor to the bracket so
you can remove it. Please make

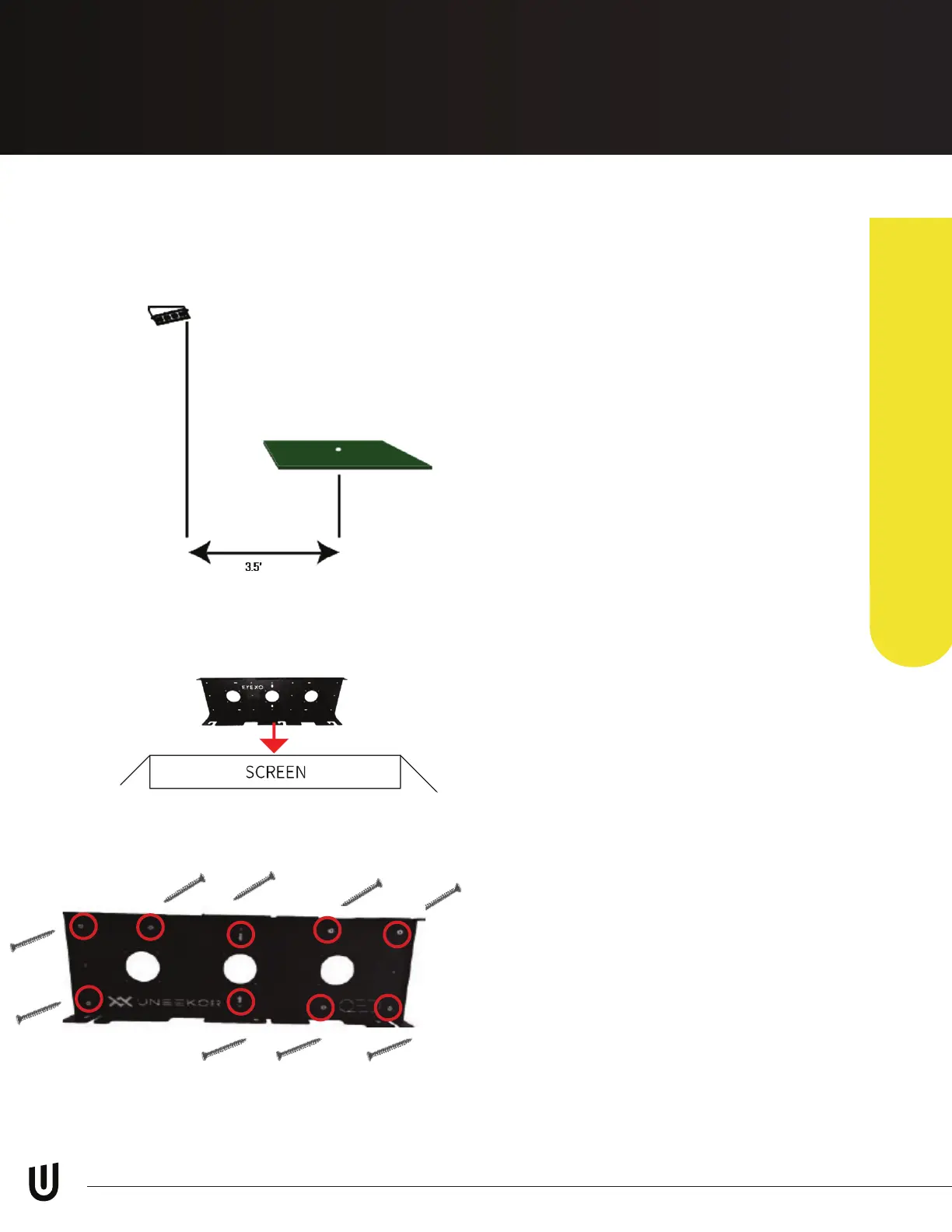

sure you have measured 3.5
feet from the front of the sensor
to your tee position. Do NOT
align to the bracket. The QED is
mounted 3.5’ behind the center
of the hiting arera.
1
Place the ladder under the
location on the ceiling where
the bracket will be mounted.
Place the bracket at against
the ceiling with the hinges
facing down toward the ground.
The side with the Uneekor logo
should be closest to the impact
2
With the bracket in position, grab
the 10 silver M4 32mm screws
and screw them in the locations
below in the diagram.
3
Step 1: Mount Bracket
