UNI-T UT39A User Manual

F. The Model UT39C: Frequency Measurement

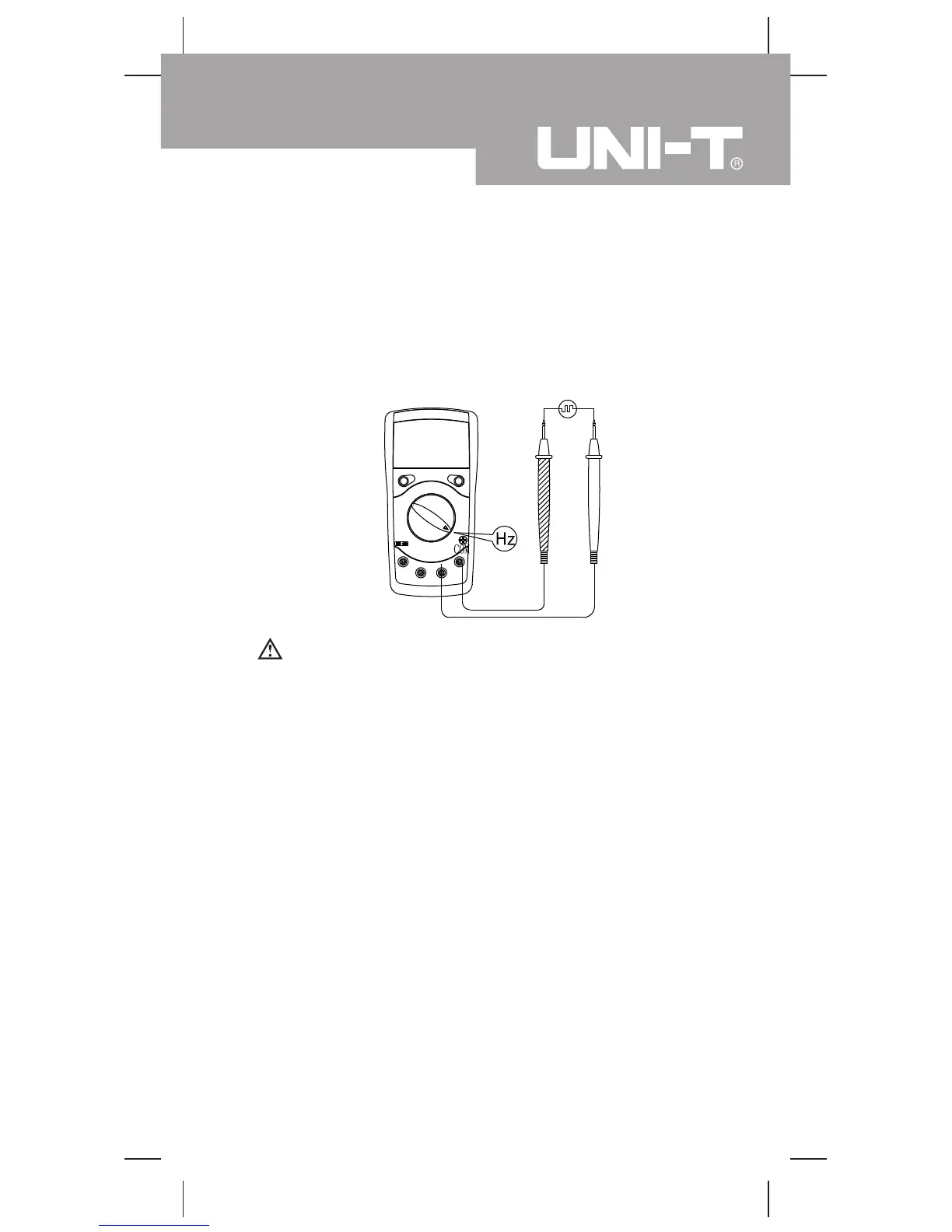

(see figure 6)
Warning
To avoid harm to you or damages to the Meter, do
not attempt to measure voltages higher than 60V in
DC or 30V rms in AC although readings may be
obtained.
When the frequency signal to be tested is higher
than 30V rms, the Meter cannot guarantee accuracy
of the measurement.
When there is no input, for example in open circuit
condition, the Meter displays “1”.
When resistance measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test.
l
l
(figure 6)
To measure frequency, connect the Meter as follows:
1. Insert the red test lead into the VΩ terminal and the
black test lead into the COM terminal.
2. Set the rotary switch to an appropriate measurement
position in kHz range.
3. Connect the test leads across with the object being
measured.
The measured value shows on the display.
Note
l
When Hz measurement has been completed,
disconnect the connection between the testing leads
and the circuit under test.
Black Red
15
Model UT39A/B/C: OPERATING MANUAL

UNI-T UT39A Specifications

General

Diode test	Yes
Product type	Digital multimeter
AC current range	0.0002 - 10 A
AC voltage range	2 - 750 V
DC current range	0.00002 - 10 A
DC voltage range	0.2 - 1000 V
Capacitance range	2000 nF
Basic accuracy (DC current)	±(0.8%+1)
Basic accuracy (DC voltage)	±(0.5%+1)
Dimensions (WxDxH)	83 x 38 x 172 mm
Battery voltage	9 V

Weight and Dimensions

Weight	310 g
