l When frequency measurement has been completed, disconnect the connection
between the testing leads and the circuit under test, and remove the testing leads
away from the input terminals of the Meter
.

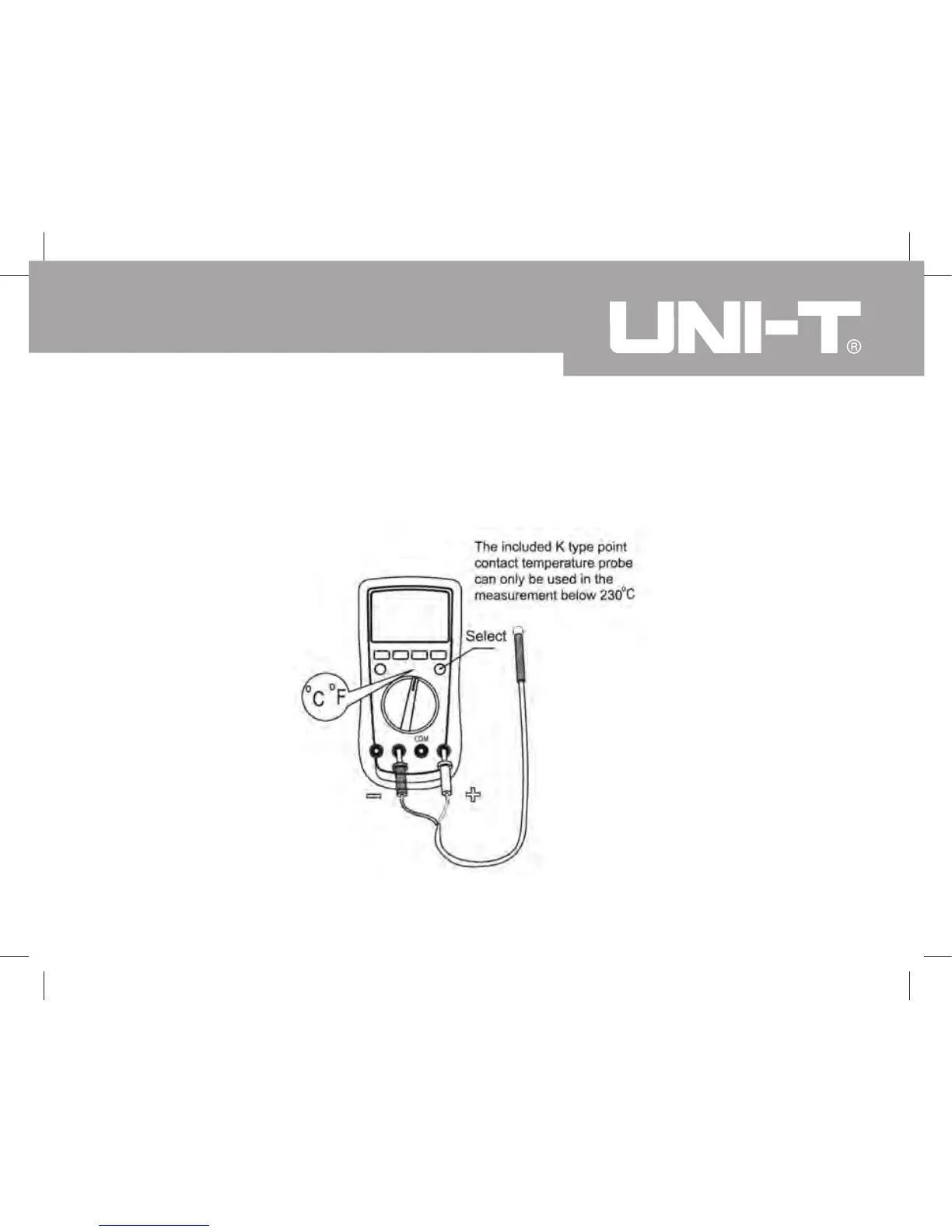

H. Temperature Measurement (UT61B and UT61C only) (See figure 9)
figure 9)
Model UT61A/61B/61C/61D/61E: OPERATING MANUAL
33

UNI-T UT61C Specifications

General

Backlight	Yes
Product type	Digital multimeter
Frequency range	0.01 - 10000 kHz
AC current range	0.6 - 10 A
AC voltage range	0.06 - 750 V
DC voltage range	0.06 - 1000 V
Temperature measurement range	-40 - 1000 °C
Dimensions (WxDxH)	87 x 180 x 47 mm
Battery voltage	9 V

Weight and Dimensions

Weight	370 g
