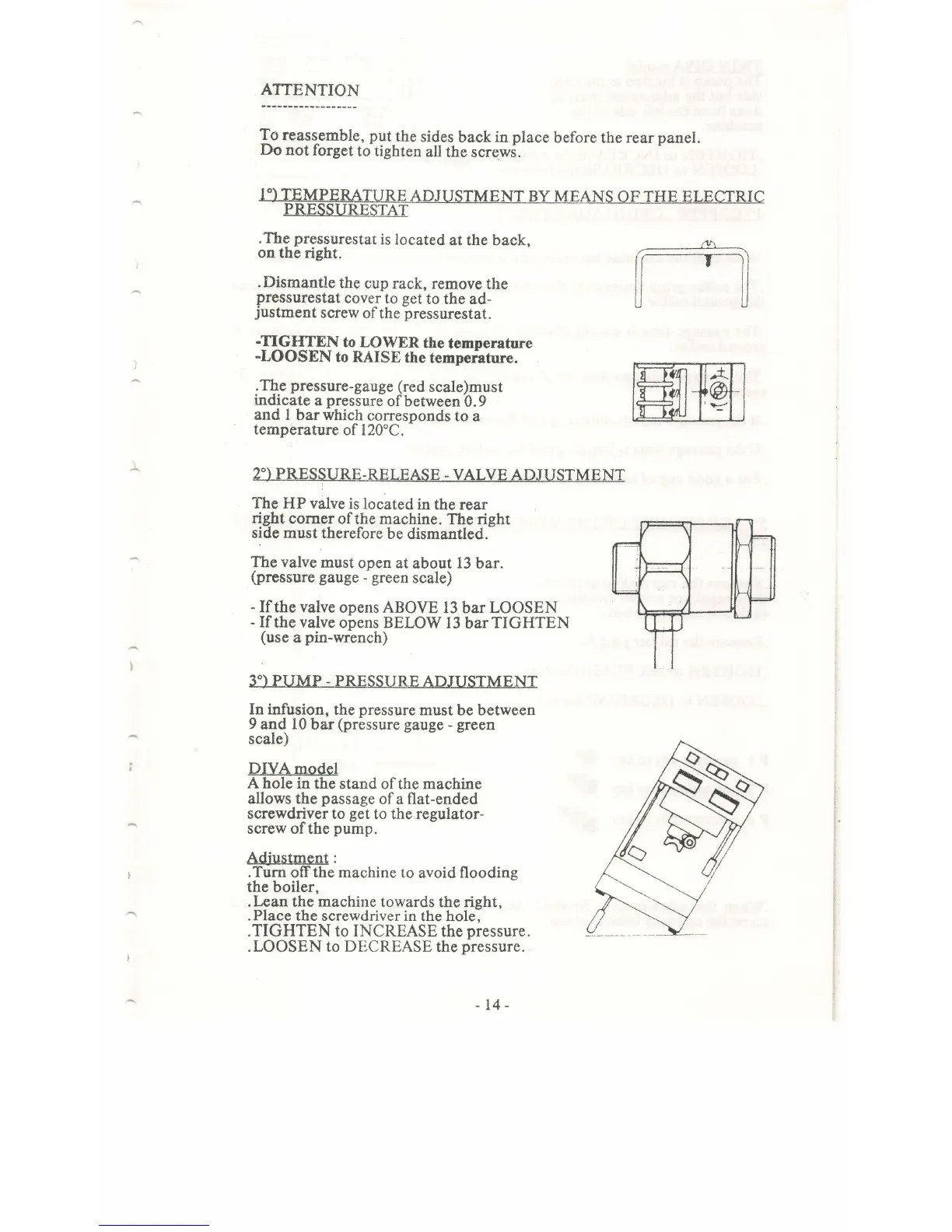

ATTENTION
To
reassemble, put
the
sides
baok
in
place
before the rear
panel.
Do
not
forget
to
tighten
all
the screws.
.The
pressurestat
is
located
at the
back,
on
the
right.
.Dismantle
the
cup
rack,
remove
the
pressurestat
cover
to
get
to the ad-
justment
screw
of the
pressurestat.
-TIGI{TEN
to LOWER
the
temperature
-LOOSEN
to RAISE
the
tempeiature.
,Tle
pressure-gauge
(red
scale)must
indicate
a
pressure
of
between
0.9
and
I
bar
which
corresponds
to
a
temperature
of
tzC
C.
ruRESSURE-RELEAS
The
HP valve
is
located
in
the rear
right
corner of
the machine.
The right
side
must
therefore
be
dismantled.
The valve
must
open at
about
13
bar.
(pressure
gauge
-
green
scale)
-
If
the
valve
opens ABOVE
13
bar
LOOSEN
-
If
the
valve
opens
BELOW
13
bar
TIGHTEN
(use
a
pin-wrench)
3')
PUMP
.
PRESSURE
ADJUSTMENT
In infusion,
the
pressure
must be between
9
ug4
l0
bar
(prOssure
gauge
-
green
scale)
DIYA.moslel
A
hole in
the stand
of the
mashine
allows the
passage
of a flat-ended
screwdriver to
get
to the regulator-
screw of
the
pump.
Adjustment:
.Turn
offthe machine
to avoid flooding
the boiler,
.Lean the machins towards
the
right,
.Place
the screwdriver in
the hole,
"TIGHTEN
to
INCREASE
the
pressure,
.LOOSEN
to
DE,CREASE
the
pressure.
I
c
I
i
?n
)ll
at-
rtl
*tu
+
(A
v,/
jJ
t4-
