Tango 0060 11-2019
Assemble the spring and
lower plate
Reinstall the 3 Allen screws
The screws will compress the
spring; no locktite needed.
Install the new seals with
the orange side up
Apply a thin coat of
Molykote grease to the
new lower seal
Install the seal
Apply a small amount of
IKV-Fluor grease to the
ends of the spring
Rotate the pieces until all 4
holds line up
Make sure the holes in
the seal line up with the
holes in the piston!

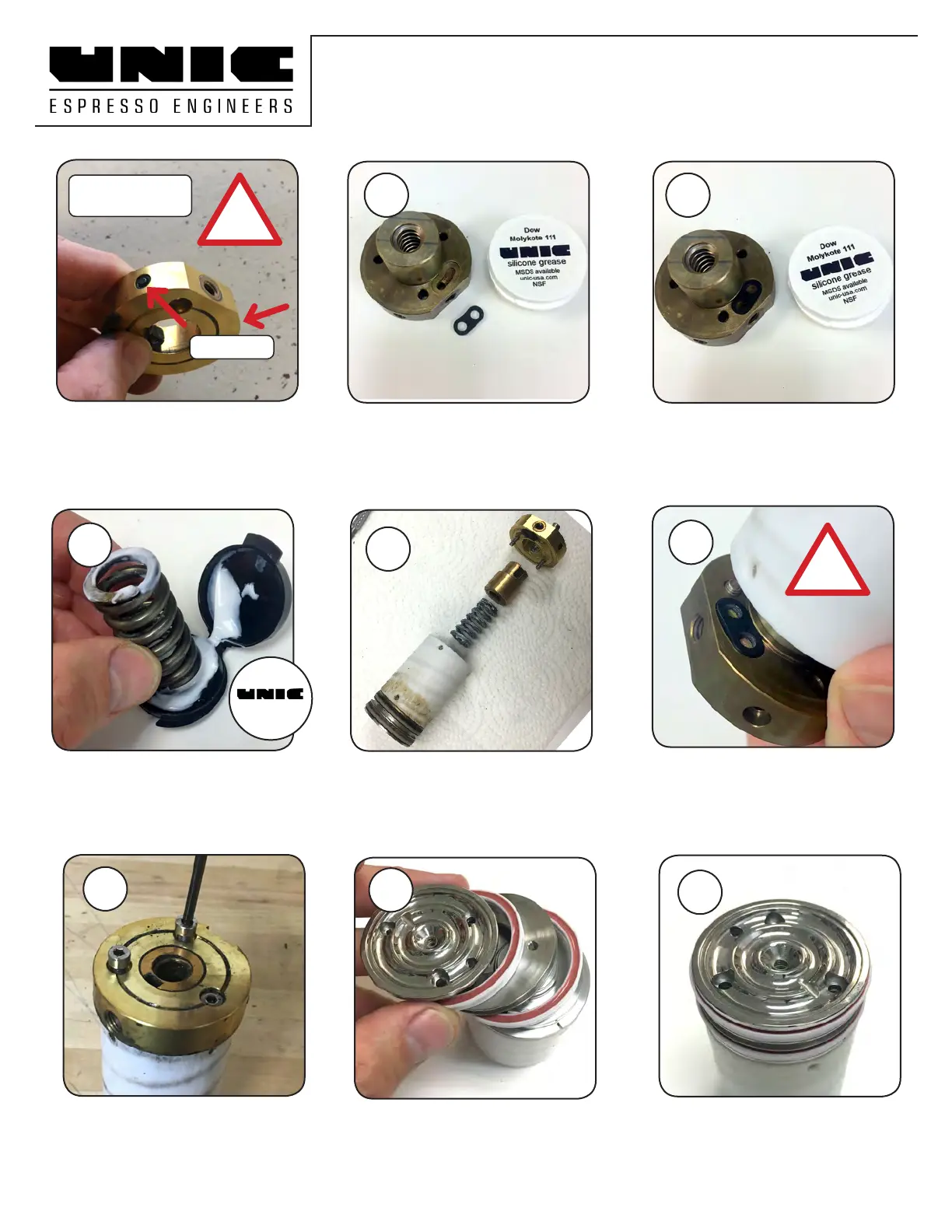

Tango Piston Re-Assembly
!
10
14
15
13
12
11
17
16
DO NOT soak the lower
ring in cleaner. It has 2
press-t magnets!
!
DO NOT soak
in cleaner
Magnets
IKV-Fluor
MPA-0H
Turntable Bearing
Grease NSF
