Instructions for the installer
3.9 - ASSEMBLY
INSTRUCTIONS
Fan assembly
Fit the fan to the smoke chamber.
(n° 2 fan for models AIREX 65 2S
and AIREX 80 2S).
Insulation and mantle
assembly
- Detail “A”: Fit the knob. 4 on the
wheel closing top door . Fit nut and
screw the top door and tighten the
knob (pos. 1, 2, 3).
- Detail “B”: install the air collector.(n°
2 collectors for the model AIREX 65
2S and AIREX 80 2S) . Verify that
the clap of the inside collector is
not blocked, by manually operating
on the extenal lever to air manifold.
The draft regulation of primary and
secondary air is described on page.
29 and 30.
- Detail “C” Assembly the bolt and nut
on the lower door and tighten the
knob (pos 1, 2 and 3).
- Detail “D” Assembly the boiler on
the lower sole support feet
- Detail “E” Assembly the inspection
door smoking chamber
- Hang the mirror flame control
(pos.5) to the light on the lower
door.

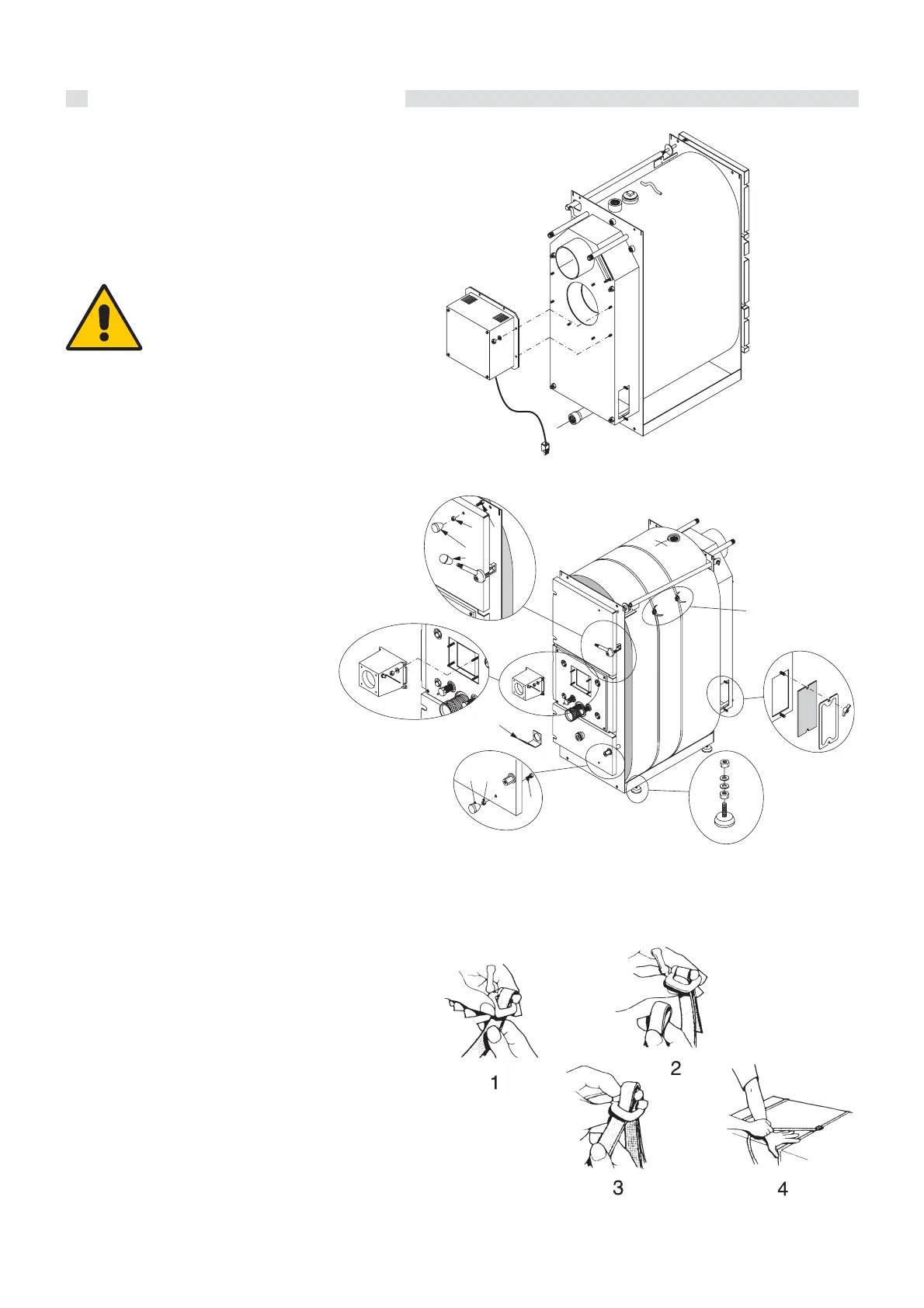

fig. 11
fig. 12
fig. 13
IMPORTANT:
When installing the fan should check
the tightness of the seal on the smoke
chamber, otherwise it would cause
the deformation of the wall resulting
in severe damage to the impeller
and / or fan motor.
This shortcoming is all the more rapid
the more frequent the opening of the door
loading wood.
Fit the insulation of the boiler by performing a suitable
cut near the upper connection flow.
- Wrap on the wood the plastic strap and insert one end
of the same lock slot as indicated in the part. 1.
- Hold the ends of the strap already inserted, proceed
to the other end by folding inward the plastic as
shown in part.2.
- Pull the two ends of the strap (as shown in part. 3 and
4) until this result in adherence to all the mineral wool
lining the boiler body. It is recommended not to over
stretch the strap, unnecessary crushing of mineral
wool, would cause an isolation not homogeneous
In case of maintenance it is possible to remove the
strap by acting on the locking slots.
