23
Instructions for the installer
32 Working thermostat
41 Main fuse (4A)
42 Boiler thermometre
11 Mains switch
12 Fan switch
13 C.H.pump switch
31 Safety overheat thermostat

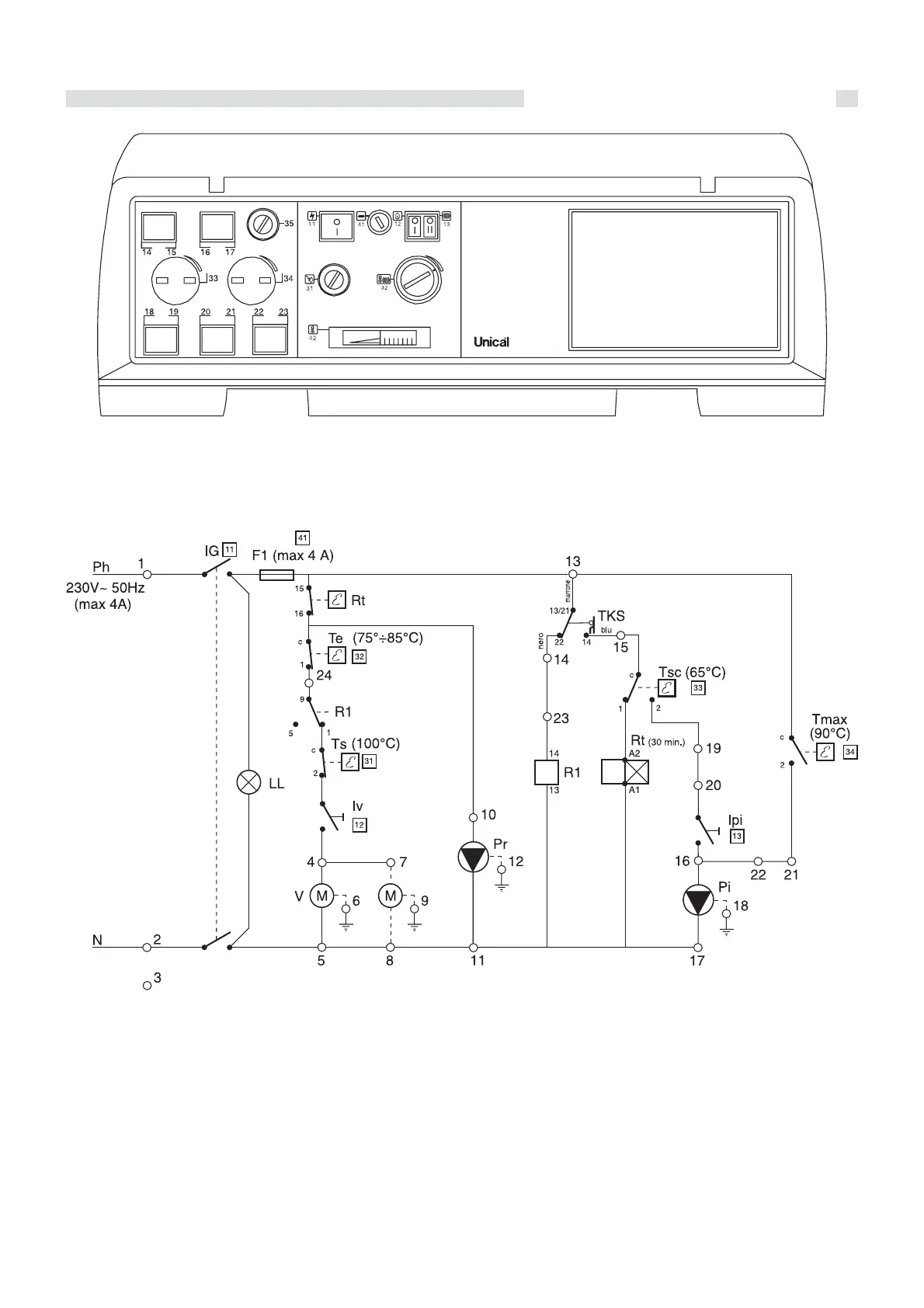

LEGEND WIRING DIAGRAM
Ph Phase (230V ~ 50Hz)
N Neutral
F1 General fuse (max 4A)
IG Mains switch with warning light
Ipi C .H. pump switch
Iv Fan switch
LL Power ON lamp
Pi C.H.system pump
Pr Recirculation pump
Rt Temporized relay
R1 Relay
Te Working thermostat (75°C÷85°C)
TKS By-pass shaft microswitch
Tmax Limit thermostat (90°C
Ts Safety overheat thermostat (100°C)
Tsc Minimum thermostat for wood fired boiler (65°C)
V Fan (s)
34
... reference to front view facia panel
fig. 41
fig. 42
