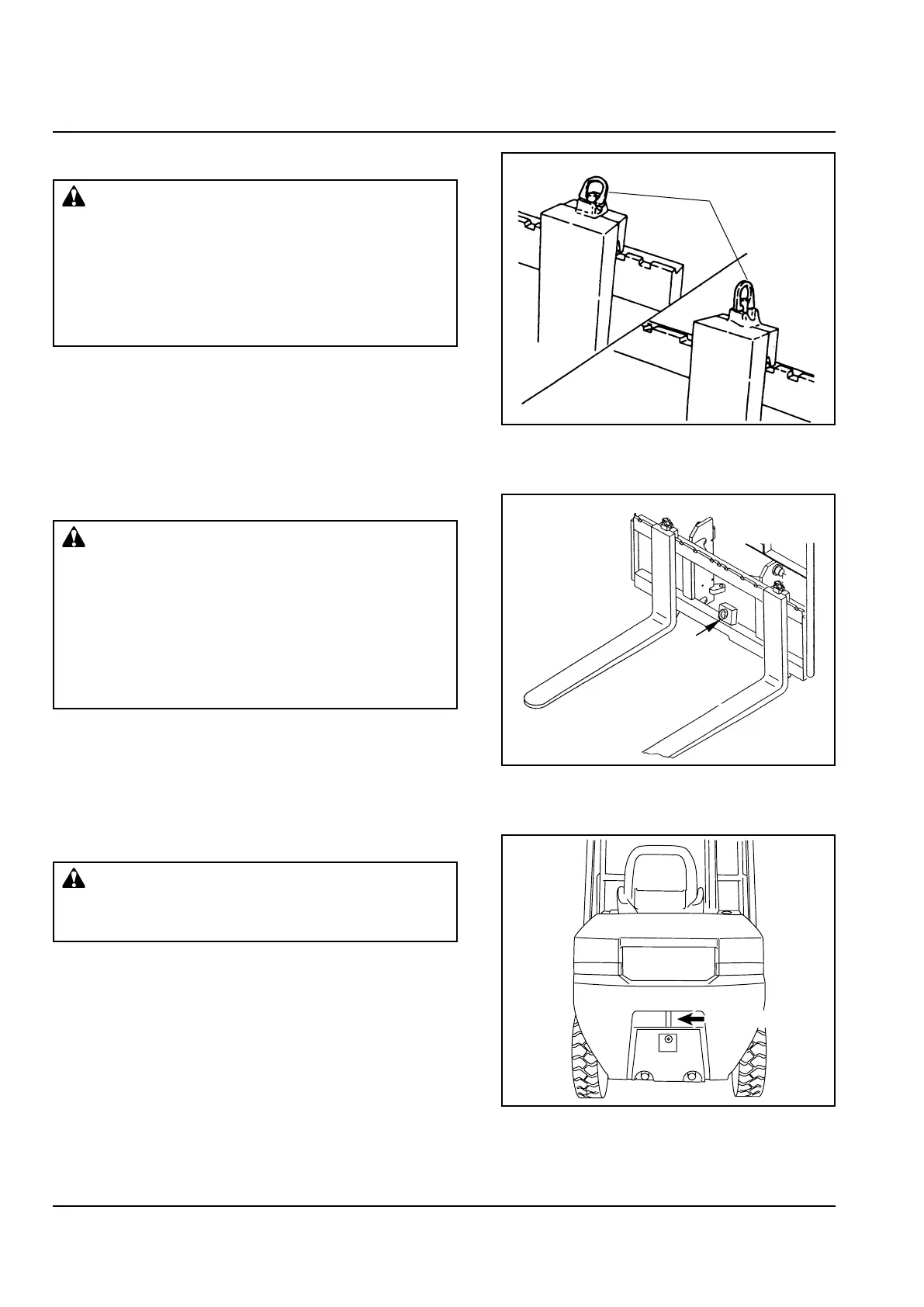

FORK STOPPER
CAUTION
The forks should be set symmetrically to the
•
truck centerline, and fork stoppers should always
be set.
When adjusting fork spacing, hold the load
•
backrest and push the forks with your foot. Do
not use your hand.
Secure the forks with the fork stoppers.
Pull up the fork stoppers a little and turn 90° to unlock.
Then adjust the fork spacing using your foot according
to the size of the load you are going to carry.
FORK LOCK BOLT
CAUTION
Do not remove the fork lock bolt other than
the following cases; otherwise the forks might
disengage from the carriage, causing personal
injury.
When removal of the forks is needed.
•
When gathering the right and left forks together
•
to the center for some reason.
When a fork prong is moved to the center, it will come
off the carriage. This bolt prevents the fork from being
used at the center of the carriage.
DRAWBAR
CAUTION
Do not use the drawbar for towing another vehicle
or for being towed by another vehicle.
Use of the drawbar should be limited to the following
cases:
When the truck has bogged down in the mud or a
•
side ditch.
When loading onto or unloading from a trailer for
•
transportation.
FORK STOPPERS
LOCK
UNLOCK
FORK LOCK
BOLT
DRAWBAR
