06MACHINE PLATES
12
USA machine plates
The machine plate contains important information. Read it
carefully! Permitted loads may not be exceeded. The stated
load limit assumes that the load is evenly distributed over the
forks.

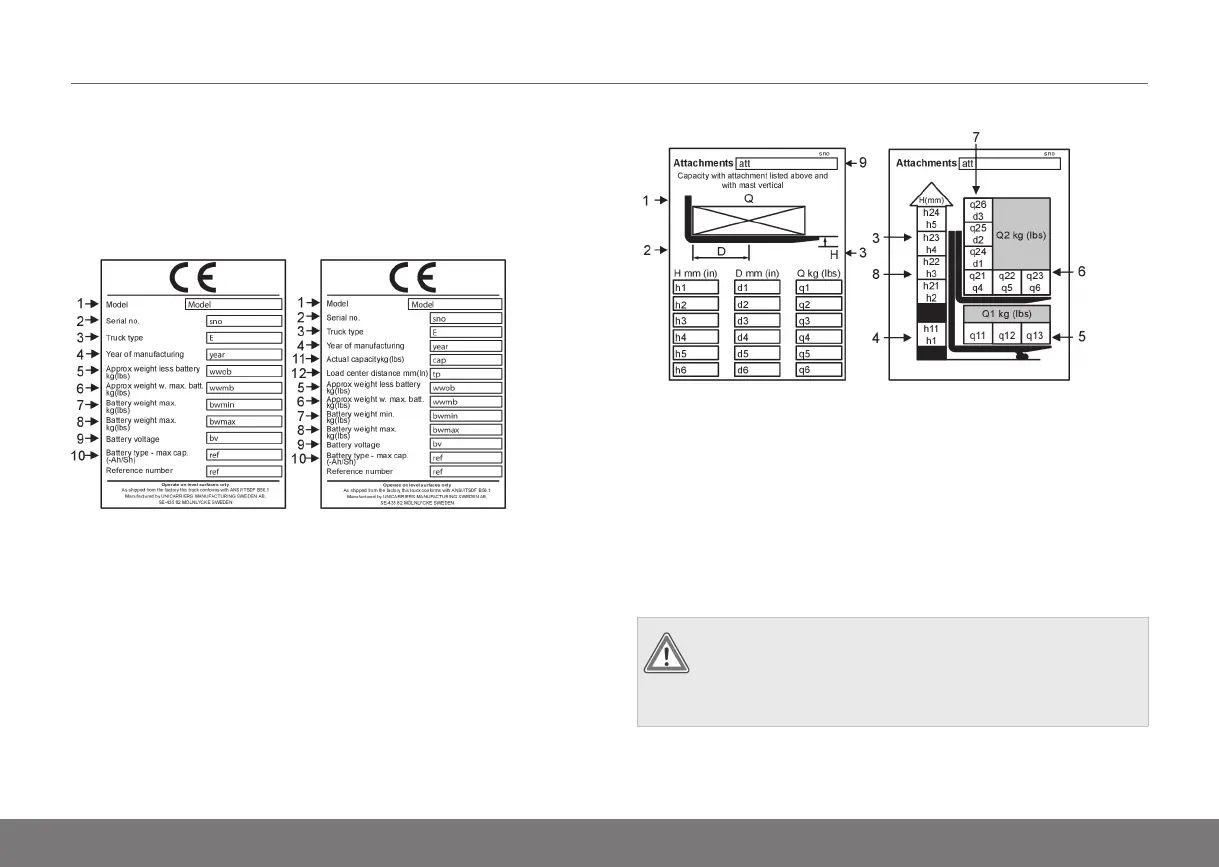

Figure 3. Machine plates
1. Model designation
2. Type Serial No./Version
(S=Special version)
3. Truck Type
4. Year of manufacture, week
and guarantee limit in
months
5. Weight without battery
6. Weight with battery
7. Minimum battery weight
8. Maximum battery weight
9. Battery voltage
10. Battery type maximum
capacity
11. Actual capacity, Q
12. Load centre distance, D
Figure 4. Load limit plates
1. Actual capacity, Q
2. Load centre distance, D
3. Lift height for fork lift, H
4. Lift height for straddle lift
5. Load limit for straddle lift,
Q1
6. Load limit for fork lift with load
on straddle lift, Q2
7. Load limit for fork lift without
load on straddle lift
8. Maximum lifting height for
fork lift with load on straddle
legs
9. Serial number of the
attachment
WARNING!
To ensure the machine meets the stability
requirements always ensure the the lift capacity
shown on the machine plate is observed.
