SERVICING AND MAINTENANCE14
49

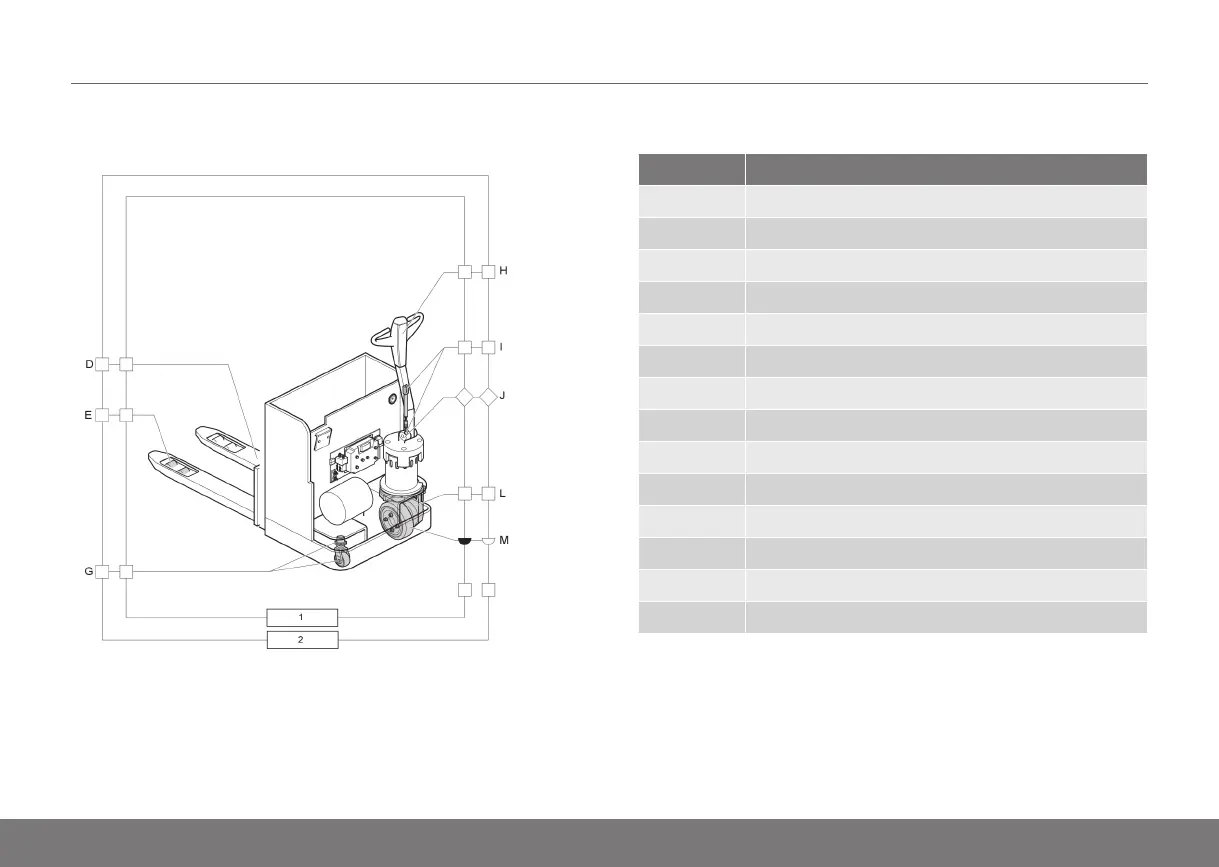

Figure 6. PLE, PLL
1. 500 hr service 2. Annual service
PL*/PS* components requiring lubrication
Location Explanation
A1 Mast profile roller surfaces and slide surfaces
A2 Thrust rollers
B Lift chains
C Straddle legs
D Fork carriage
E Bogie wheel
F Battery rollers
G Castor wheel - sliding bearing, grease nipple
H Speed and brake controls - slide surfaces and springs
I Steering arm - gas spring
J Steering arm housing
K Hydraulic tank
L Guide ring
M Gearbox
Instruction Handbook PLL, PLE, PSL, PSD, PS, PSH, PLP, TS — D002652, B, GBR, ForTranslation
