UniCarriers PLP 200 CD - Page 51

SERVICING AND MAINTENANCE14
51
PS/PSH components requiring lubrication
Location Explanation Location Explanation
A1 Mast profile roller
surfaces and slide
surfaces
G Castor wheel - sliding
bearing, grease nipple
A2 Thrust rollers H Speed and brake
controls - slide surfaces
and springs
B Lift chains I Steering arm - gas
spring
C Straddle legs J Steering arm housing
D Fork carriage K Hydraulic tank
E Bogie wheel L Guide ring
F Battery rollers M Gearbox

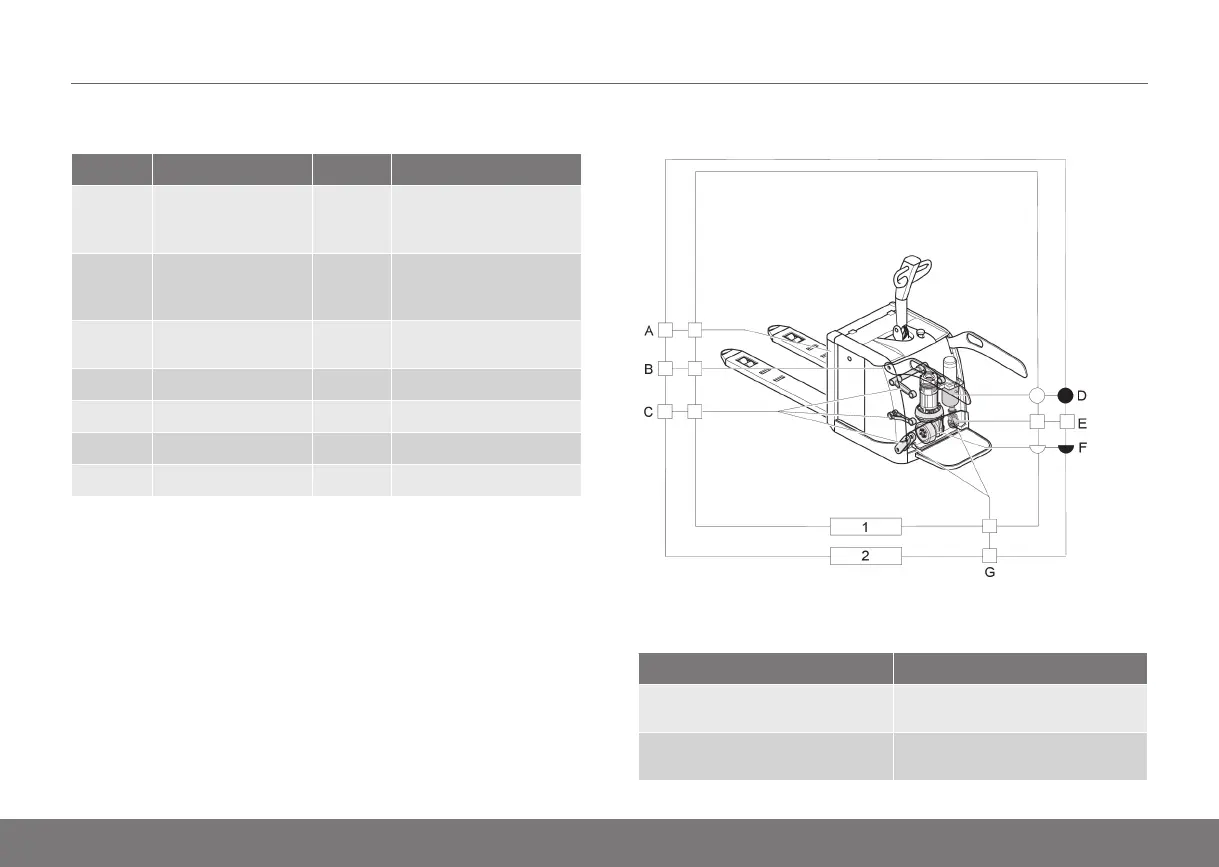

Lubrication chart PLP
1. 500 hr service 2. Annual service
Components to lubricate, PLP
Location Explanation
A Mast section - roller surfaces and
slide surfaces
B Gates – bearing surfaces
lubricated
