SERVICING AND MAINTENANCE14
53
PLP CD components requiring lubrication
Location Explanation
A Thrust rollers
B Mast profile roller surfaces and
slide surfaces
C Bogie wheel
D Gates, bearing surfaces
E Fork carriage
F Spring-mounted drive unit, link
bearings, 12 grease nipples
G Lift chains
H Hydraulic oil
I Castor wheel, sliding bearings, 2
grease nipples
J Gearbox oil
K Platform, 2 grease nipples

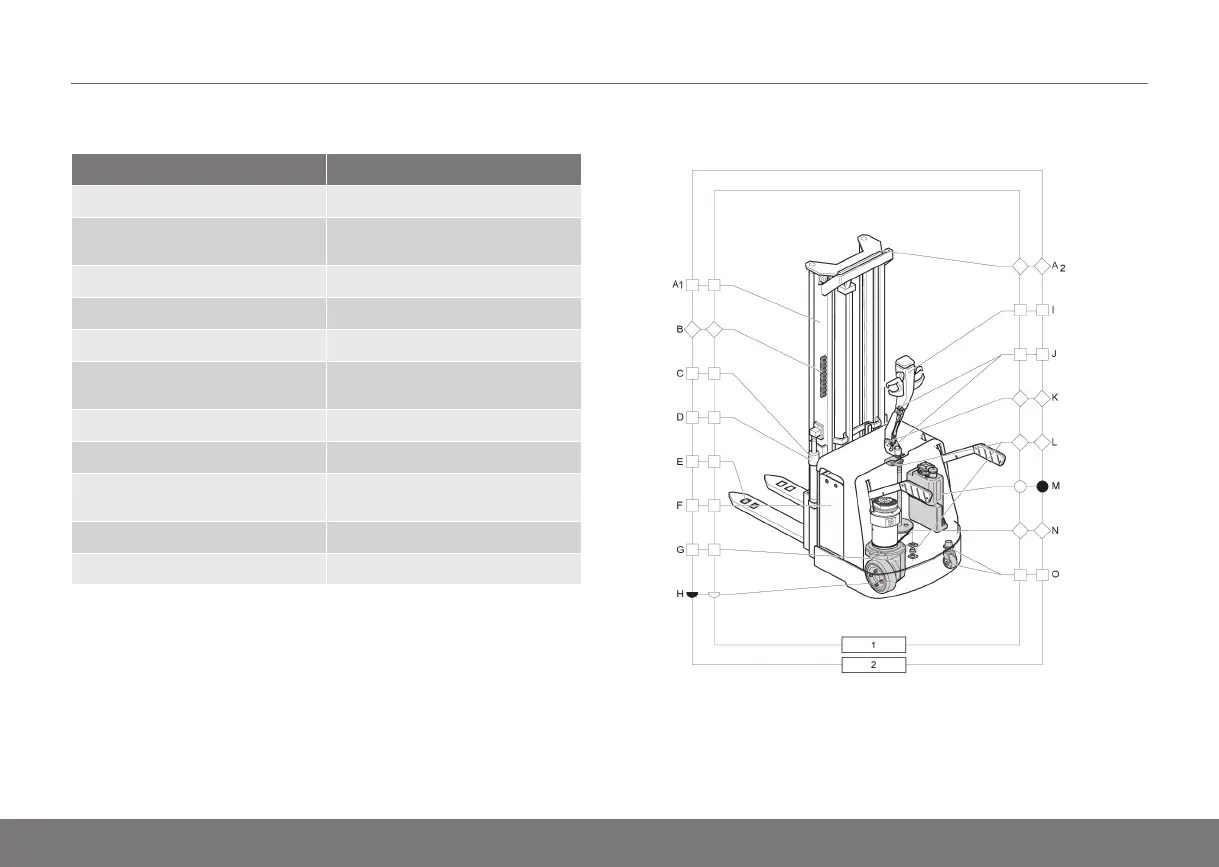

Lubrication chart TS
1. 500 hr service 2. Annual service
