ENDAT-3857 USERS MANUAL
UNICORN COMPUTER CORP.
11

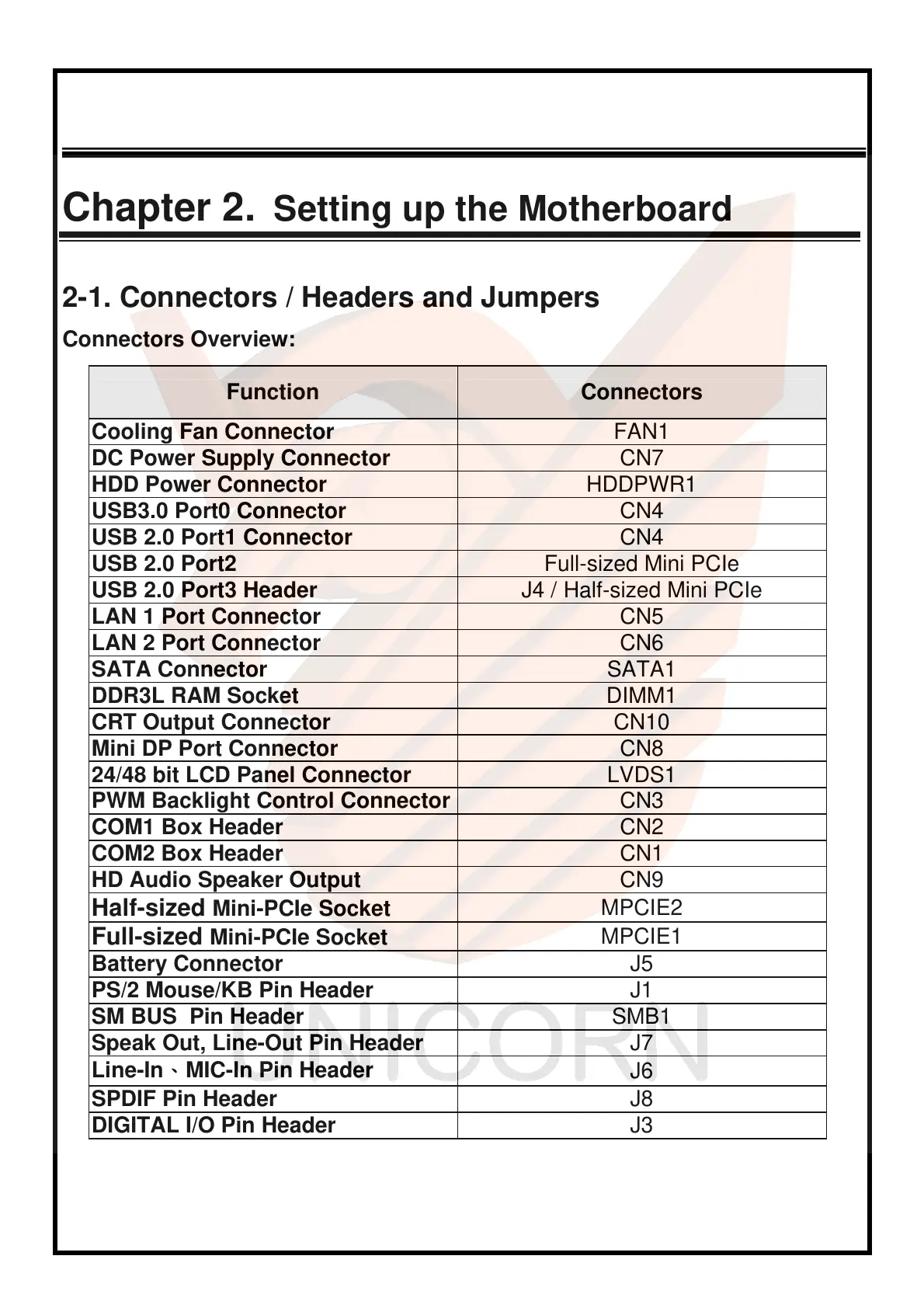

Chapter 2. Setting up the Motherboard
2-1. Connectors / Headers and Jumpers
Connectors Overview:
Function Connectors
Cooling Fan Connector FAN1
DC Power Supply Connector CN7
HDD Power Connector HDDPWR1
USB3.0 Port0 Connector CN4
USB 2.0 Port1 Connector CN4
USB 2.0 Port2 Full-sized Mini PCIe
USB 2.0 Port3 Header J4 / Half-sized Mini PCIe
LAN 1 Port Connector CN5
LAN 2 Port Connector CN6
SATA Connector SATA1
DDR3L RAM Socket DIMM1
CRT Output Connector CN10
Mini DP Port Connector CN8
24/48 bit LCD Panel Connector LVDS1
PWM Backlight Control Connector CN3
COM1 Box Header CN2
COM2 Box Header CN1
HD Audio Speaker Output CN9
Half-sized Mini-PCIe Socket
MPCIE2
Full-sized Mini-PCIe Socket
MPCIE1
Battery Connector J5
PS/2 Mouse/KB Pin Header J1
SM BUS Pin Header SMB1
Speak Out, Line-Out Pin Header J7
Line-In、MIC-In Pin Header
J6
SPDIF Pin Header J8
DIGITAL I/O Pin Header J3
