ENDAT-3857 USERS MANUAL
UNICORN COMPUTER CORP.
34

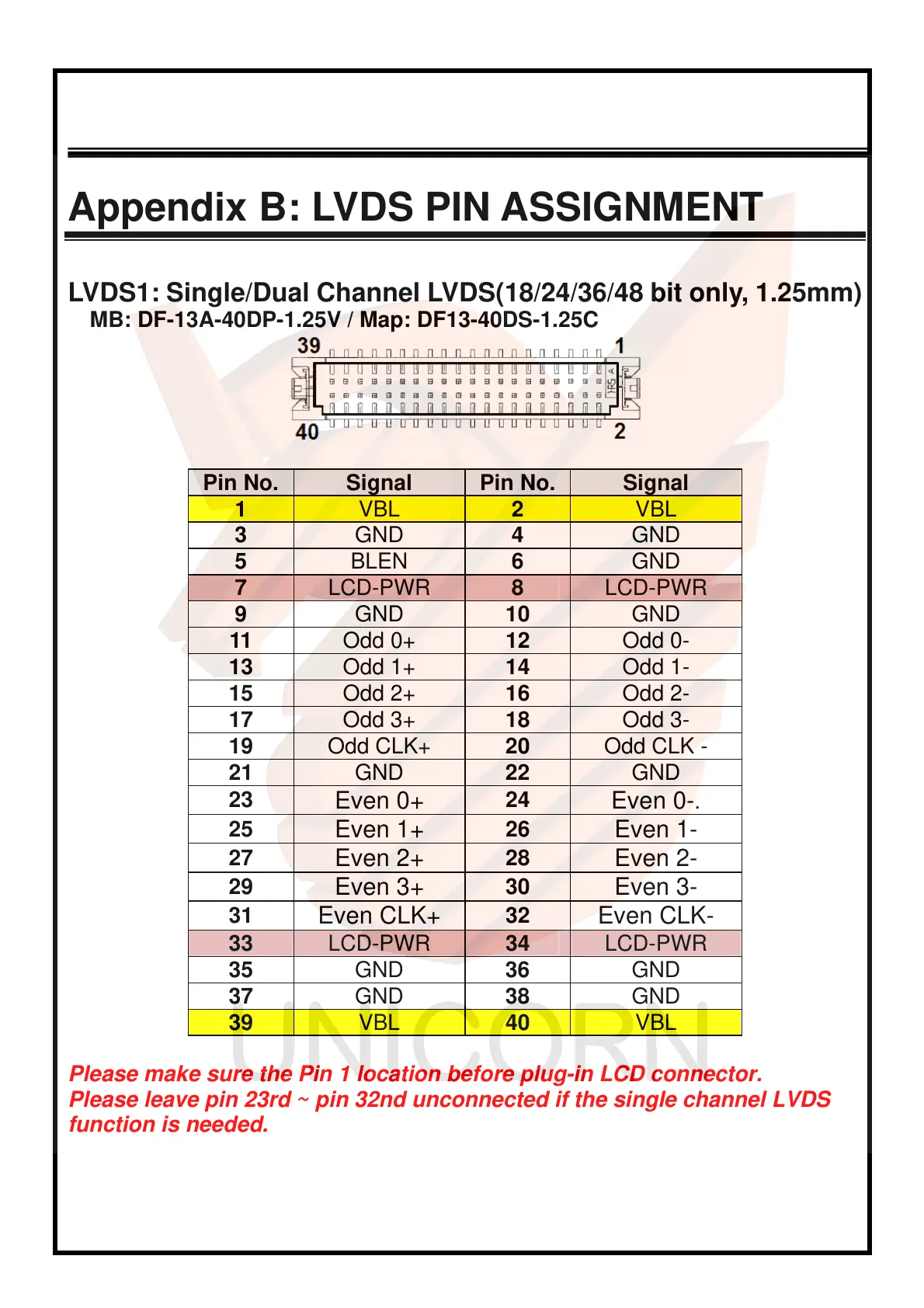

Appendix B: LVDS PIN ASSIGNMENT
LVDS1: Single/Dual Channel LVDS(18/24/36/48 bit only, 1.25mm)
MB: DF-13A-40DP-1.25V / Map: DF13-40DS-1.25C
Pin No. Signal Pin No. Signal
1 VBL 2 VBL
3 GND 4 GND
5 BLEN 6 GND
7 LCD-PWR 8 LCD-PWR
9 GND 10 GND
11 Odd 0+ 12 Odd 0-
13 Odd 1+ 14 Odd 1-
15 Odd 2+ 16 Odd 2-
17 Odd 3+ 18 Odd 3-
19 Odd CLK+ 20 Odd CLK -
21 GND 22 GND
23
Even 0+
24
Even 0-.
25
Even 1+
26
Even 1-
27
Even 2+
28
Even 2-
29
Even 3+
30
Even 3-
31
Even CLK+
32
Even CLK-
33 LCD-PWR 34 LCD-PWR
35 GND 36 GND
37 GND 38 GND
39 VBL 40 VBL
Please make sure the Pin 1 location before plug-in LCD connector.
Please leave pin 23rd ~ pin 32nd unconnected if the single channel LVDS
function is needed.
Please double check "jumper setting & LCD cable's orientation" before
power-on, any incorrect installation may caused damaged of the LCD.
