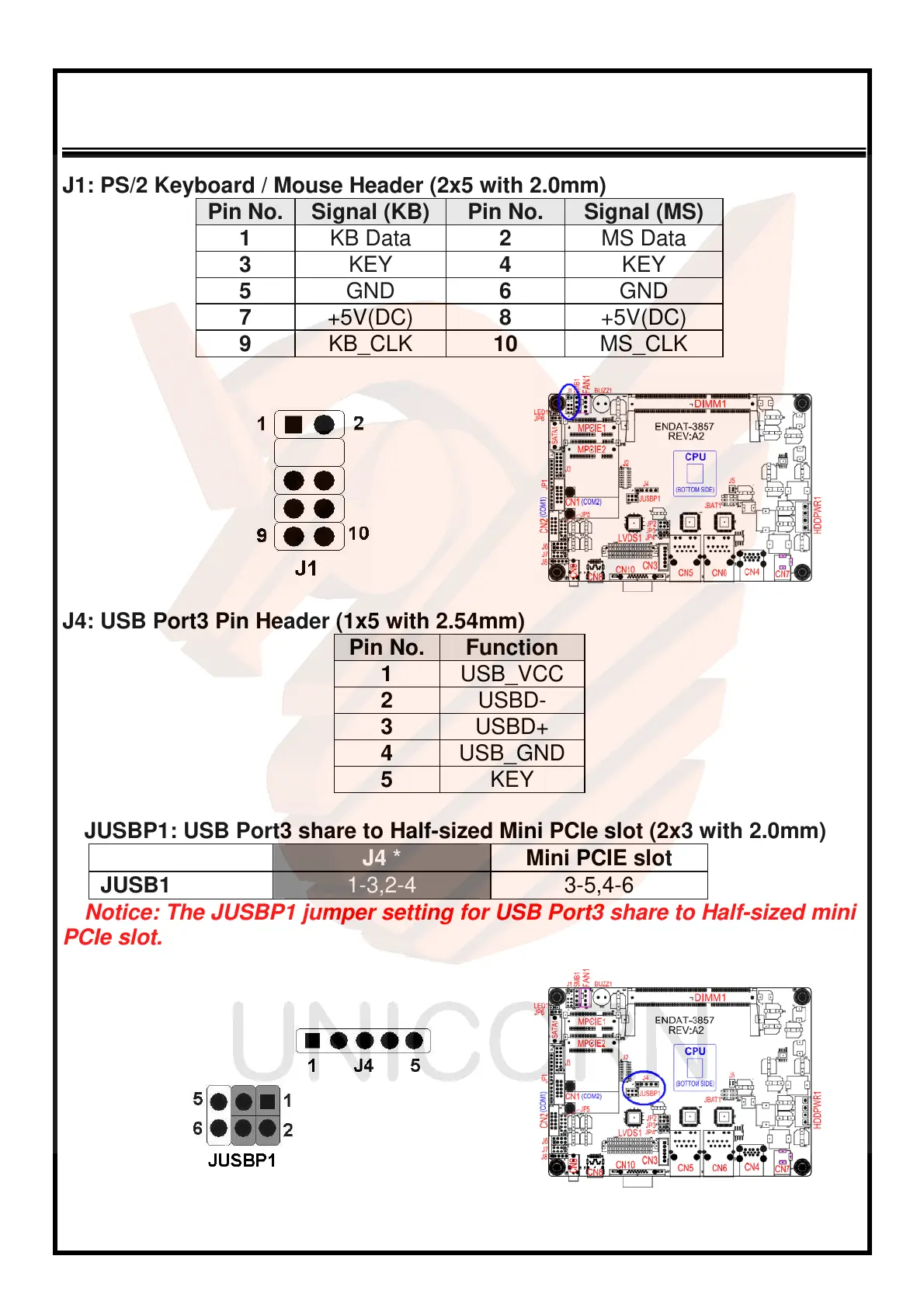

ENDAT-3857 USERS MANUAL

UNICORN COMPUTER CORP.

J1: PS/2 Keyboard / Mouse Header (2x5 with 2.0mm)

Pin No. Signal (KB) Pin No. Signal (MS)

1 KB Data 2 MS Data

3 KEY 4 KEY

5 GND 6 GND

7 +5V(DC) 8 +5V(DC)

9 KB_CLK 10 MS_CLK

J4: USB Port3 Pin Header (1x5 with 2.54mm)

Pin No. Function

1 USB_VCC

2 USBD-

3 USBD+

4 USB_GND

5 KEY

JUSBP1: USB Port3 share to Half-sized Mini PCIe slot (2x3 with 2.0mm)

J4 * Mini PCIE slot

JUSB1 1-3,2-4 3-5,4-6

Notice: The JUSBP1 jumper setting for USB Port3 share to Half-sized mini

PCIe slot.
