ENDAT-3857 USERS MANUAL
UNICORN COMPUTER CORP.
19

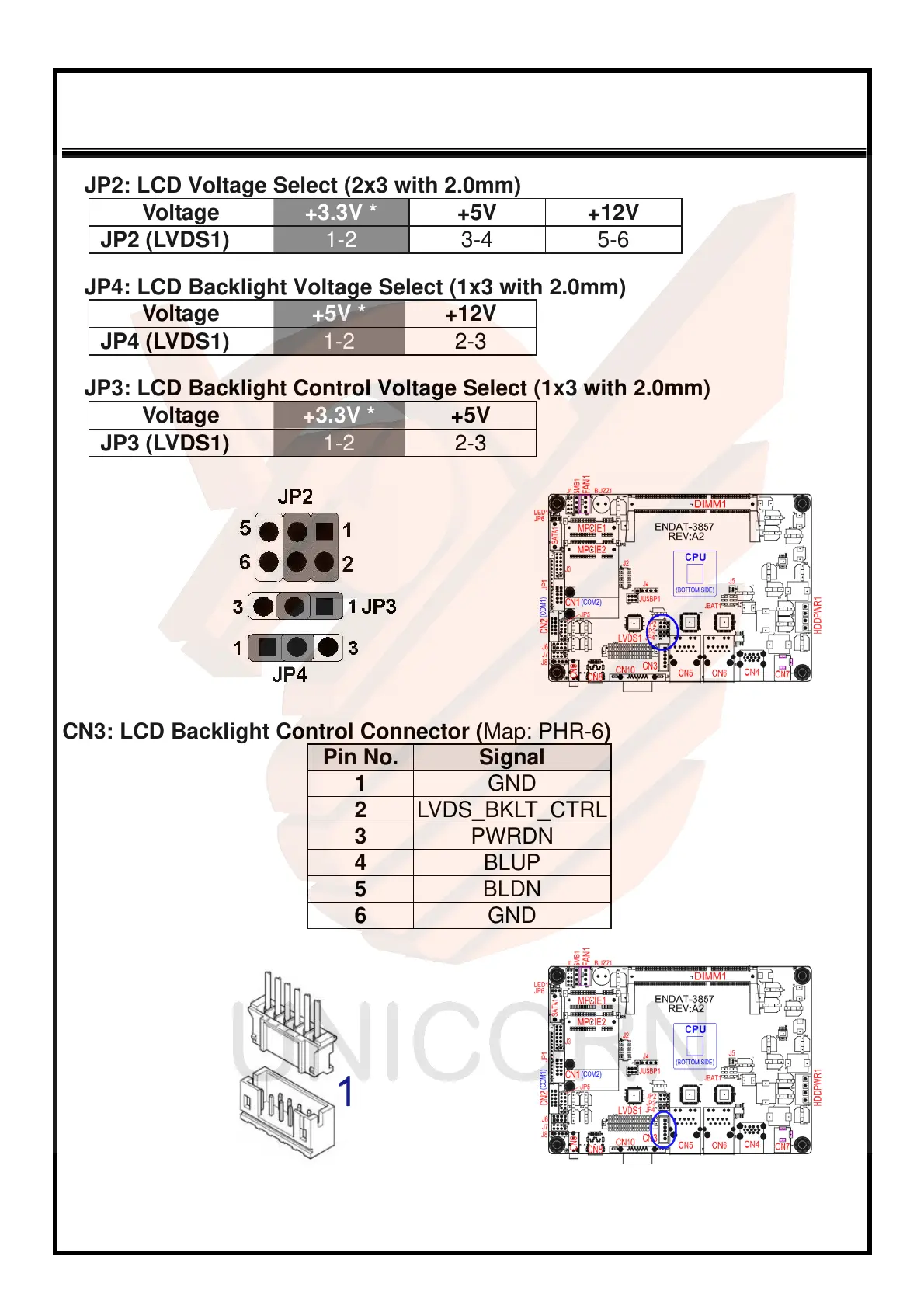

JP2: LCD Voltage Select (2x3 with 2.0mm)
Voltage +3.3V * +5V +12V
JP2 (LVDS1) 1-2 3-4 5-6
JP4: LCD Backlight Voltage Select (1x3 with 2.0mm)
Voltage +5V * +12V
JP4 (LVDS1) 1-2 2-3
JP3: LCD Backlight Control Voltage Select (1x3 with 2.0mm)
Voltage +3.3V * +5V
JP3 (LVDS1) 1-2 2-3
CN3: LCD Backlight Control Connector (Map: PHR-6)
Pin No. Signal
1 GND
2 LVDS_BKLT_CTRL
3 PWRDN
4 BLUP
5 BLDN
6 GND
