ENDAT-3857 USERS MANUAL
UNICORN COMPUTER CORP.
3

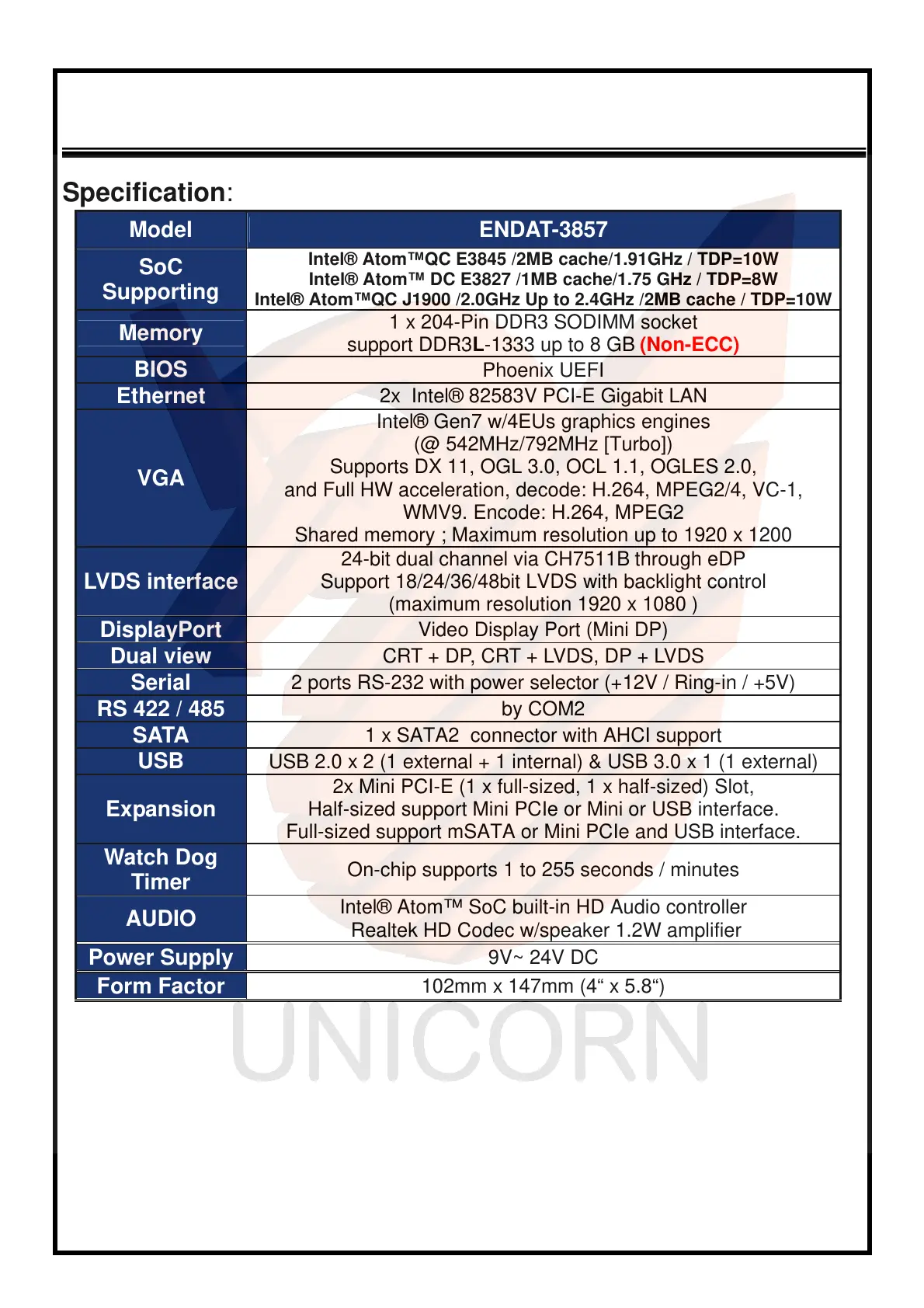

Specification:
Model ENDAT-3857
SoC
Supporting
Intel® Atom™QC E3845 /2MB cache/1.91GHz / TDP=10W
Intel® Atom™ DC E3827 /1MB cache/1.75 GHz / TDP=8W
Intel® Atom™QC J1900 /2.0GHz Up to 2.4GHz /2MB cache / TDP=10W
Memory
1 x 204-Pin DDR3 SODIMM socket
support DDR3L-1333 up to 8 GB (Non-ECC)
BIOS
Phoenix UEFI
Ethernet
2x Intel® 82583V PCI-E Gigabit LAN
VGA
Intel® Gen7 w/4EUs graphics engines
(@ 542MHz/792MHz [Turbo])
Supports DX 11, OGL 3.0, OCL 1.1, OGLES 2.0,
and Full HW acceleration, decode: H.264, MPEG2/4, VC-1,
WMV9. Encode: H.264, MPEG2
Shared memory ; Maximum resolution up to 1920 x 1200
LVDS interface
24-bit dual channel via CH7511B through eDP
Support 18/24/36/48bit LVDS with backlight control
(maximum resolution 1920 x 1080 )
DisplayPort
Video Display Port (Mini DP)
Dual view
CRT + DP, CRT + LVDS, DP + LVDS
Serial
2 ports RS-232 with power selector (+12V / Ring-in / +5V)
RS 422 / 485
by COM2
SATA
1 x SATA2 connector with AHCI support
USB
USB 2.0 x 2 (1 external + 1 internal) & USB 3.0 x 1 (1 external)
Expansion
2x Mini PCI-E (1 x full-sized, 1 x half-sized) Slot,
Half-sized support Mini PCIe or Mini or USB interface.
Full-sized support mSATA or Mini PCIe and USB interface.
Watch Dog
Timer
On-chip supports 1 to 255 seconds / minutes
AUDIO
Intel® Atom™ SoC built-in HD Audio controller
Realtek HD Codec w/speaker 1.2W amplifier
Power Supply
9V~ 24V DC
Form Factor
102mm x 147mm (4“ x 5.8“)
