Unipower HPL110A/S24 User Manual

Installation - Mechanical

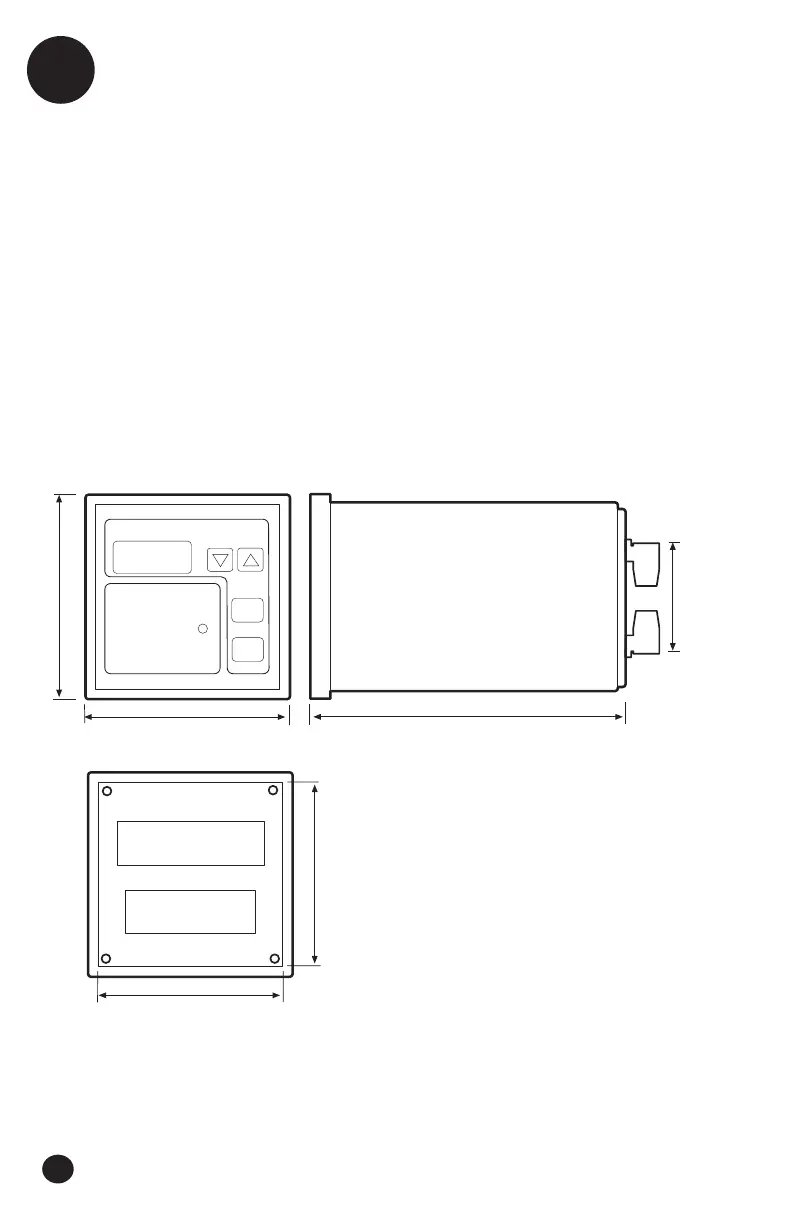

HPL110A Module
The HPL110A unit is designed to be mounted through a panel of an enclosure with
the face exposed and the body protected within.
A square cut-out is required of 2.64" x 2.64" (67 x 67 mm), the HPL110A is installed
through the cut-out and retained with fittings supplied.
A minimum depth of 5" (125 mm) will be required to allow space for the terminal
fittings and wire bend at the rear of the unit.
The HPL110A face is sealed to IP54 standards.
The terminal connections are rated for 12 AWG (4mm
2
) wires max.
14
7
72
110
43
72
67
67
Figure 7.1
