Unipower HPL110A/S24 - Current Transformer

15
Current Transformers
The optional HF3Axxx/x series current transformers may be mounted either directly to
standard 35mm DIN rail, as shown on Page 9, using accessory 741B0231 - not included -
or screwed directly to a panel using two M5 or #10 cap screws with accessory
741B0230/6 - not included - as shown in Fig. 7.2
60
54
Æ17
27
40
40
28
52
P1
P2
S1
S2

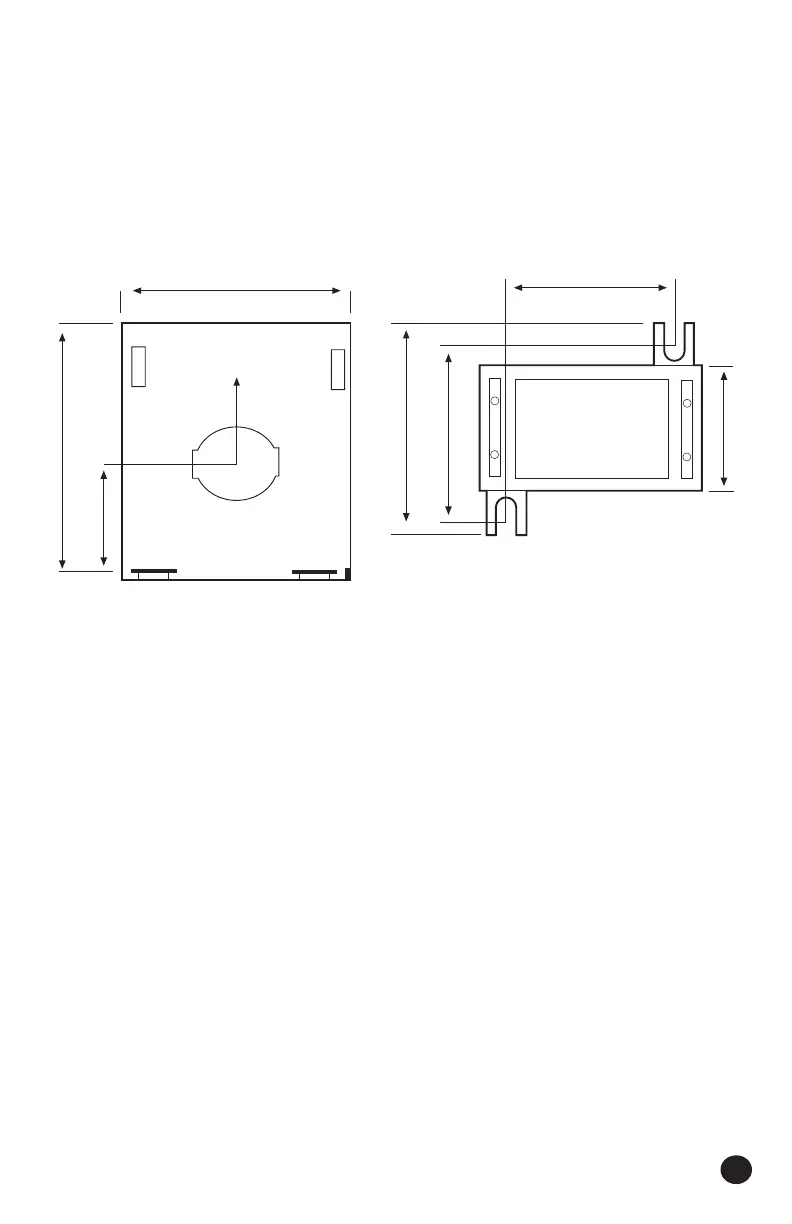

Figure 7.2
