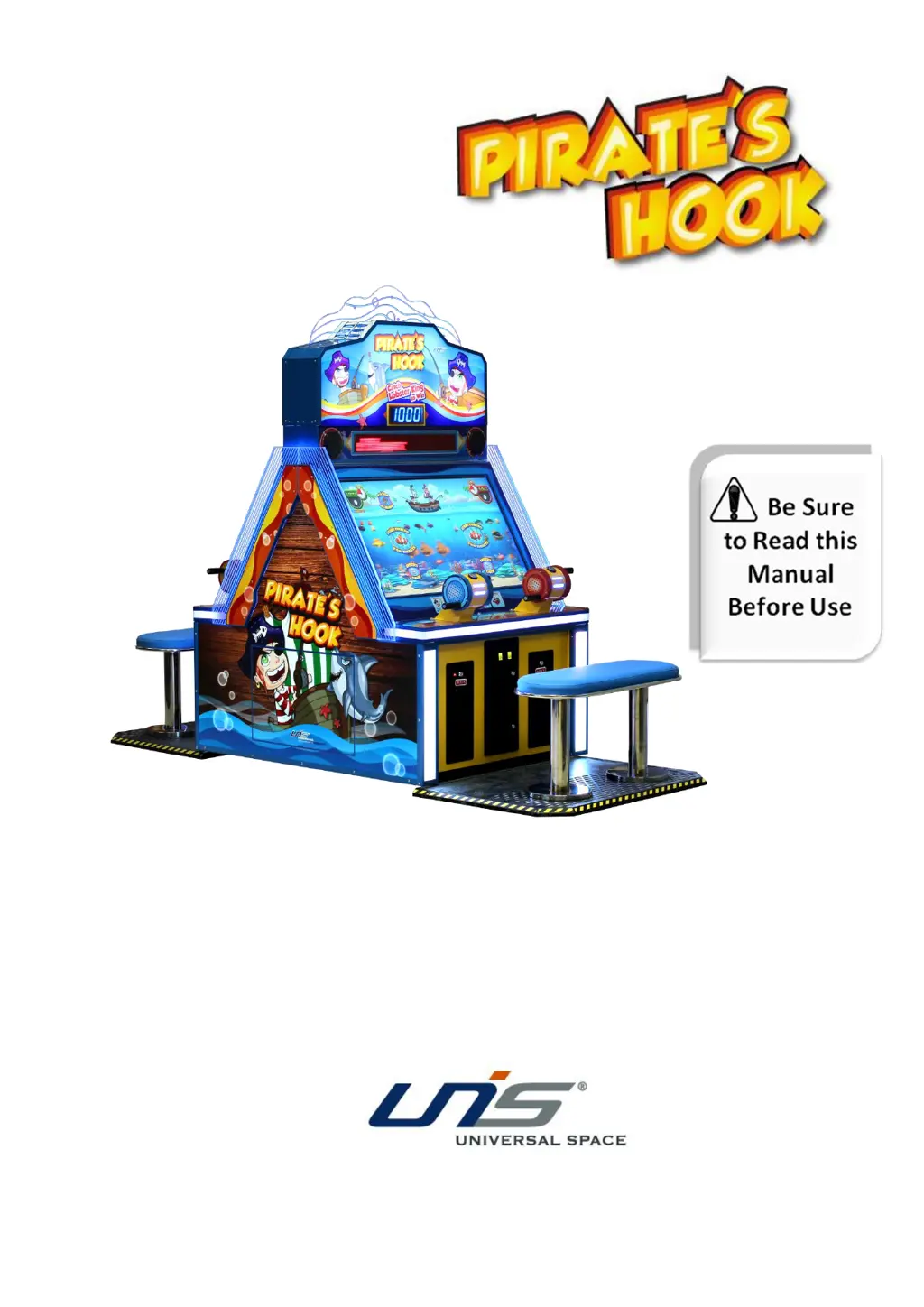

Operation Manual
www.universal-space.com

Questions and Answers

  • W
    Whitney WhiteSep 10, 2025
    How do I fix a UNIS Arcade Game Machine display that can't show the whole desktop?
    • L
      Linda BurnettSep 10, 2025
      If the display can't show the whole desktop, it's likely a screen resolution problem. For Windows 7, right-click in the blank space on the desktop, click “screen resolution,” and then click “change the appearance of the display” to adjust the screen resolution.
  • T
    Thomas RodriguezAug 23, 2025
    What to do if UNIS Pirate’s Hook 4p display a blue screen?
    • L
      Leonard OrtizAug 23, 2025
      If your display shows a blue screen, check the PC power cord and VGA signal cable to ensure they are not loose. Also, reseat the PC video card. If the PC has gone into protection mode (indicated by a flashing light when you open the front cover), press the power button for 30 seconds, then restart. If you see a “0X000000A” code, it indicates a conflict between the computer drive and software; try uninstalling or disabling any new drivers or software.
  • A
    Audrey MartinezAug 25, 2025
    What to do if UNIS Pirate’s Hook 4p Arcade Game Machines display a black screen?
    • O
      olsonrachelAug 25, 2025
      If the display shows a black screen, first, ensure all connectors are tightly plugged in. If that doesn't work, try connecting another source, like a PC, to see if the display is operational. If not, it could be a display fault. Also, check the RAM; if it's loose, pull it out and reinsert it, or consider changing the main board or RAM.
  • J
    Juan VegaAug 27, 2025
    What to do if my UNIS Arcade Game Machine keeps restarting or crashing?
    • S
      Stephen SmithAug 27, 2025
      If your PC restarts or crashes repeatedly, it may be due to poor heat dissipation. Try adding silicon to the cooling fin. It could also be a RAM or main board fault, so consider changing the RAM or the main board. Another potential cause is a power source problem, so try changing the power source.
  • M
    Michael GarciaAug 27, 2025
    What to do if UNIS Pirate’s Hook 4p Arcade Game Machines display abnormal color?
    • J
      Juan KentAug 28, 2025
      If the display shows abnormal colors, the issue might be a bad connection between the video card and the display video cable. Try reconnecting them. Alternatively, there might be a video card driver problem, in which case restarting the video driver may resolve the issue.
  • Z
    zburgessAug 29, 2025
    What to do if my UNIS Arcade Game Machine is playing normally, but the system halts?
    • D
      Daryl HudsonAug 29, 2025
      If the system halts during normal play, the video card might be loose or have poor contact. Try plugging the video card in again. It could also be due to a PC crash, in which case restarting or performing a system recovery might help.
  • T
    Troy FoxSep 18, 2025
    What causes UNIS Arcade Game Machines to fail to save the BIOS setting?
    • S
      Suzanne AdamsSep 18, 2025
      If the system fails to save the BIOS settings, it is likely due to a battery fault. Replace the battery on the main board.
  • M
    Michael CohenSep 12, 2025
    How to fix bouncing motion of the display on UNIS Pirate’s Hook 4p?
    • A
      alicia14Sep 12, 2025
      If the display exhibits a bouncing motion, the issue is likely a screen resolution problem. Adjust the screen refresh rate by going to “screen resolution” and then clicking “change the appearance of the display”.
  • A
    alicia26Sep 8, 2025
    Why is there no ticket dispensing on my UNIS Arcade Game Machine?
    • R
      rachelmoralesSep 8, 2025
      If no tickets are dispensing, first check if the machine is out of tickets. If so, add more tickets and press the reset button. Another reason could be ticket jamming; remove any jammed tickets and press the reset button. Also, check all connections to ensure they are correct.
  • W
    wongchristopherSep 5, 2025
    Why UNIS Pirate’s Hook 4p Arcade Game Machines game will not start?
    • M
      marshallmichaelSep 5, 2025
      If the game won't start, check if the frame assembly connector is loose and plug it in tightly. If the problem persists, it may indicate a frame assembly fault, and you should contact UNIS Service.

Summary

Important Safety Instructions

Electrical and Temperature Hazards

Details hazards related to high voltage, shock, and high temperatures during operation and servicing.

Technical Specifications

Package Contents and Accessories

Component Identification

Setup and Installation Guide

Transport, Leveling, and Placement

Guidance on moving the game, adjusting levelers, and determining play/service space.

Power Connection Safety Procedures

Instructions and warnings for safely connecting the game's power supply.

How to Play Pirates Hook

Game Interface Overview

Description of the game screen elements and player indicators.

Gameplay Instructions

Step-by-step guide on inserting coins, aiming, and catching fish.

Game Configuration and Options

Testing Button Distribution

Instructions on accessing the testing menu via the coin door meter panel.

Game Mode Settings

Details on configuring game modes, ticket payouts, volume, and other gameplay parameters.

Troubleshooting Common Issues

Problem Diagnosis and Solutions

Guide to identifying and resolving common operational problems like no start, power issues, or sound faults.

Maintenance and Inspection Guide

Routine Safety Checks and Precautions

Procedures for daily checks, monthly inspections, and safe handling during maintenance.

Overall Construction Details

Wooden Part Assembly

Diagram and list of wooden components used in the game's construction.

Marquee Assembly Components

Control Panel Assembly Components

Monitor Assembly Components

Fishing Mechanism Assembly

Stool Assembly Components

Electrical Components Identification

Identification of Decals

Nameplates and Warning Labels

Wiring Diagram Overview

UNIS Pirate’s Hook 4p Specifications

General IconGeneral
CategoryArcade Game Machines
ModelPirate’s Hook 4p
ManufacturerUNIS
Players4
DisplayLCD
Power Supply110V/220V
Game TypeRedemption
ControlButtons
