Unitech HT630 Quick Start Manual

Transfer Scanned Items to PC:
Data may be transferred to and from the PT630 with UTE’s PTComm Manager which
can be found on the CD that accompanies the device or at the following website:
http://www.ute.com/downloads.php?product_id=52
PTComm Manager must be installed on the PC in order to communicate with the PT630.
Once PTComm Manager is installed follow these steps to transfer the data file to the PC:
NOTE: The PT630 can be ON or OFF and these steps should successfully connect the
PT630 to the PC
1. Connect the PT630 to the back of the PC via RS232 or Set the PT630 on the PT063
cradle and ensure the cradle is connected to the PC and that is has power.

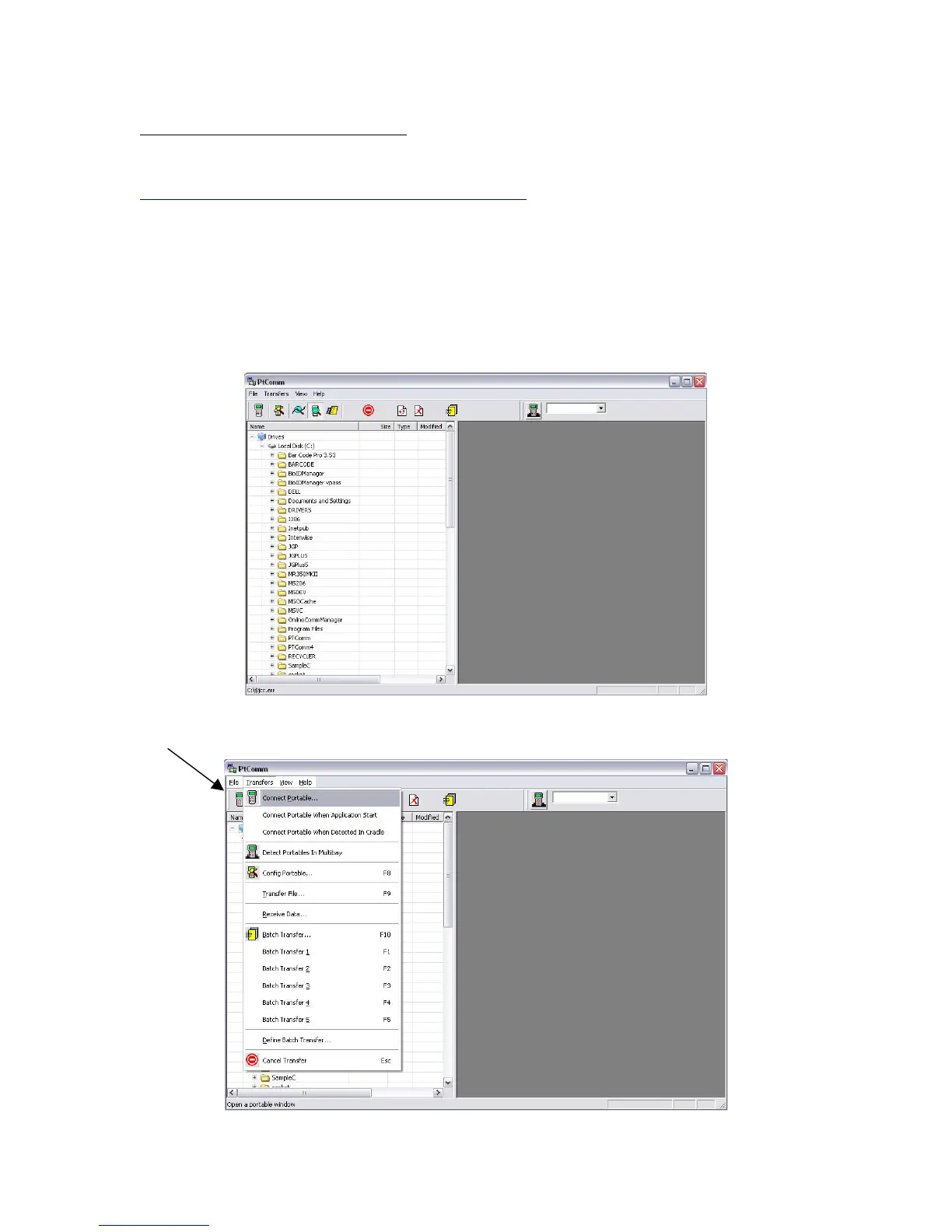

2. Open PTComm Manager
3. Click on the icon under “File” or click on “Transfers” -> “Open Portable”

Unitech HT630 Specifications

General

Display diagonal	- \
Display resolution	128 x 64 pixels
Display number of colors	Monochrome
ROM capacity	0.256 MB
Internal memory	0.0005 GB
Internal memory type	RAM
Compatible memory cards	Not supported
Maximum internal memory	4.5 MB
Processor family	-
Processor frequency	0.8 GHz
Interface	RS-232
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	120 mAh
Battery life (max)	12 h
Battery recharge time (off)	2.5 h
Certification	BSMI, CCC, CE, FCC, VCCI, RoHS
Product color	Blue
Barcode reader	Yes
Keyboard layout	Alphanumeric
Keypad number of keys	27

Weight and Dimensions

Depth	35.1 mm
Width	67.1 mm
Height	167.64 mm
Weight	243.81 g
