Unitronics IO-LC1 - Screw-Mounting

4/04 IO-LC1, IO-LC3 I/O Expansion Modules
Unitronics Industrial Automation 3
Screw-Mounting

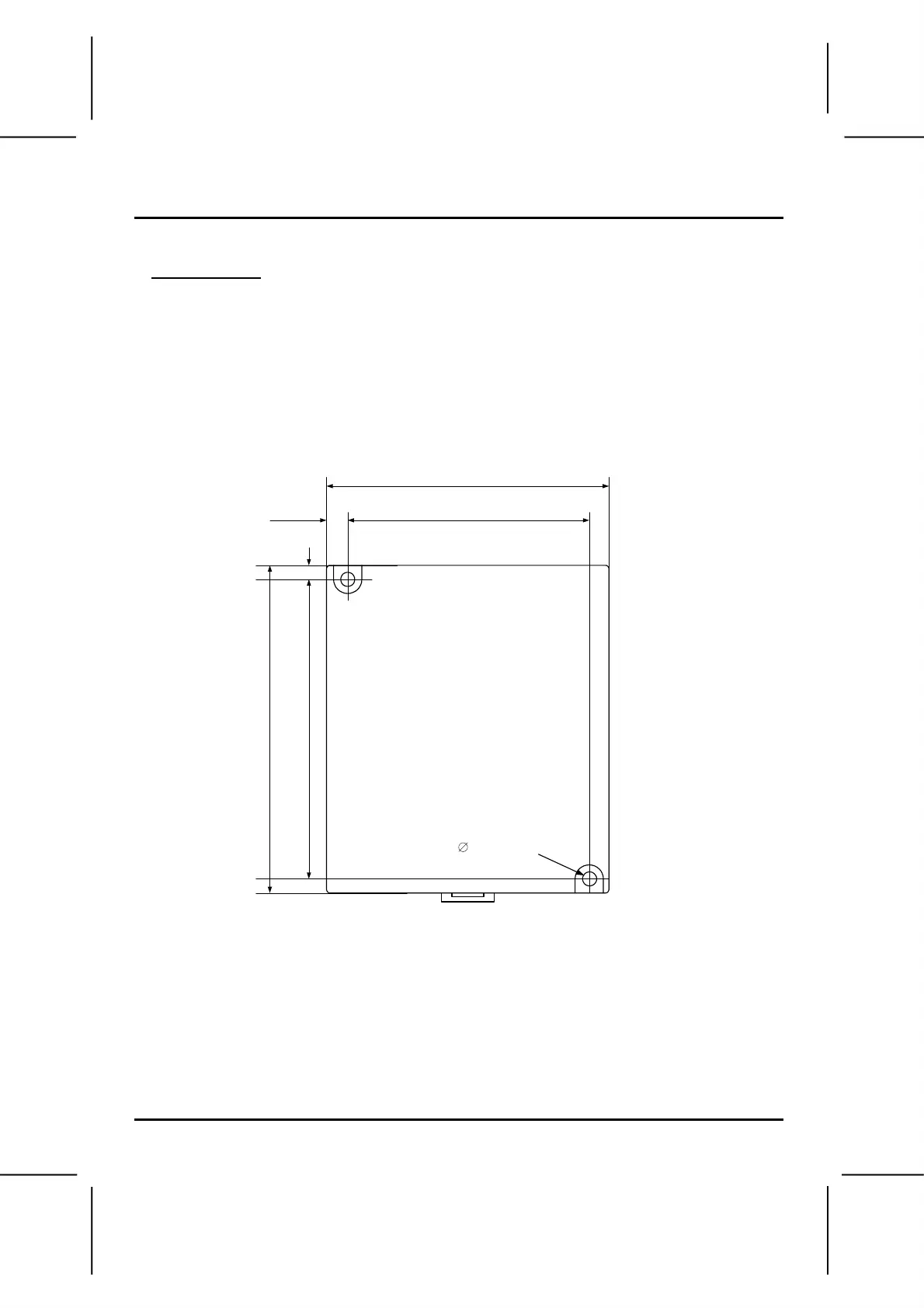

The figure below is not drawn to scale. It may be used as a guide for screw-mounting the module.
Mounting screw type: either M3 or NC6-32.
4mm
5.8mm
(0.228")
85mm
(3.346")
80mm
(3.15")
68.4mm
(2.693")
93mm
(3.66")
4mm (x2)
(0.16")
(0.16")
