I/O Configuration

Digital Inputs, Controller’s Power Supply

Note: The inputs are arranged in two groups. You can wire one group as npn and the other as

pnp,or wire both groups as npn, or as pnp. In either case, the npn/pnp pins must be connected.

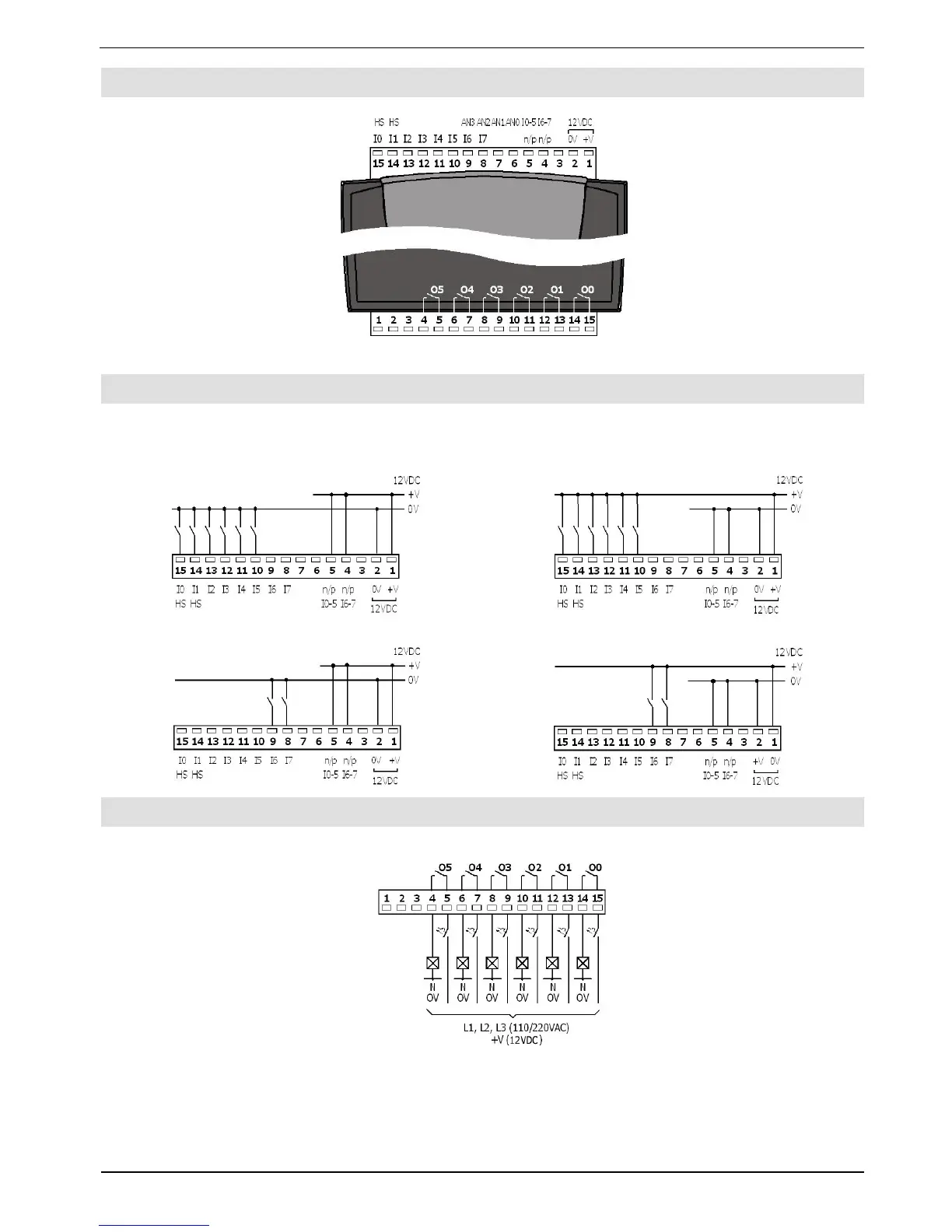

Input wiring (I0-I5), npn (sink) Input wiring (I0-I5), pnp (source)

Input wiring (I6-I7), npn (sink) Input wiring (I6-I7), pnp (source)

Digital Outputs

Output wiring
