V200-18-E3XBW Snap-in I/O Module
Unitronics 7

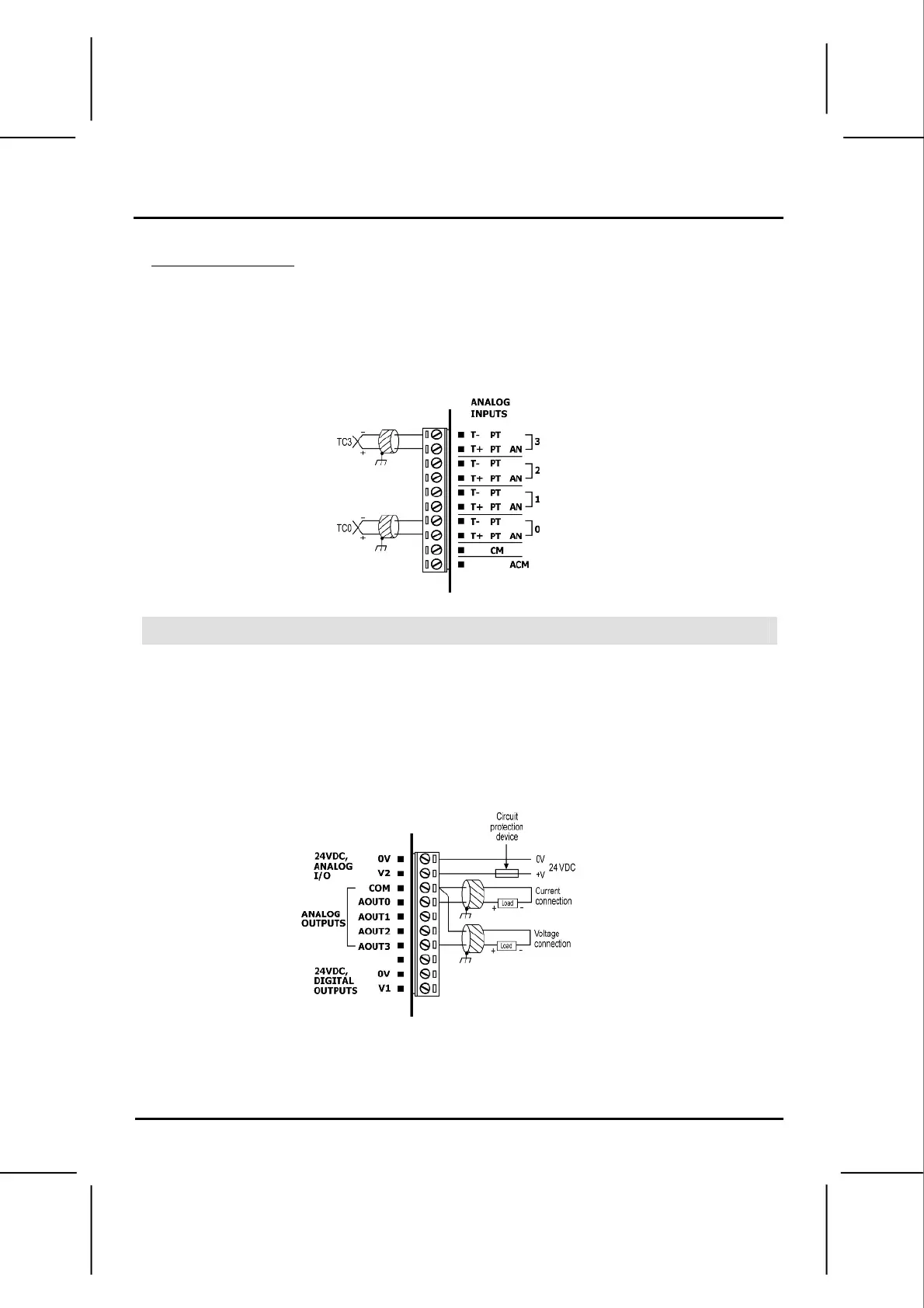

Thermocouple Inputs
Supported thermocouple types include B, E, J, K, N, R, S, and T, in accordance with software and
jumper settings. See table Thermocouple Input Ranges, on page 15.
Inputs may be set to mV by software settings (Hardware Configuration); note that in order to set
mV inputs, thermocouple jumper settings are used.
Thermocouple
Analog Outputs
Shields should be earthed, connected to the earth of the cabinet.
An output can be wired to either current or voltage.
- Use the appropriate wiring as shown below.
- Open the device and set the jumpers according to the instructions beginning on page 8.
To ensure proper performance, a warm-up period of a half an hour is recommended.
current/voltage
