Vision™PLC+HMI
Unitronics
3
Mounting
Note that figures are for illustrative purposes only.

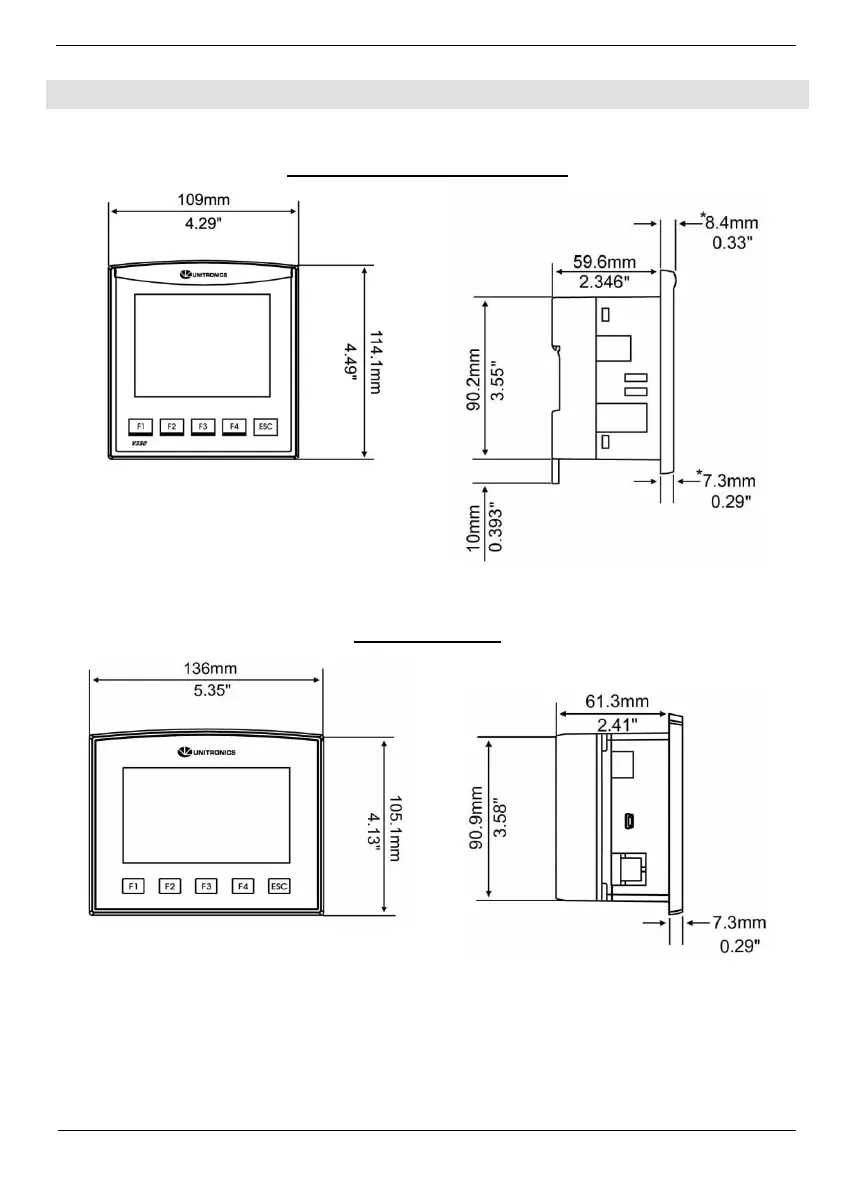

Dimensions: V130/V350/V130J/V350J
* Note that for models V130J/V350J, the bezel width is 6.7 mm (0.26”).
Dimensions: V430J
