Vision™ OPLC™
Unitronics 5
I/Os

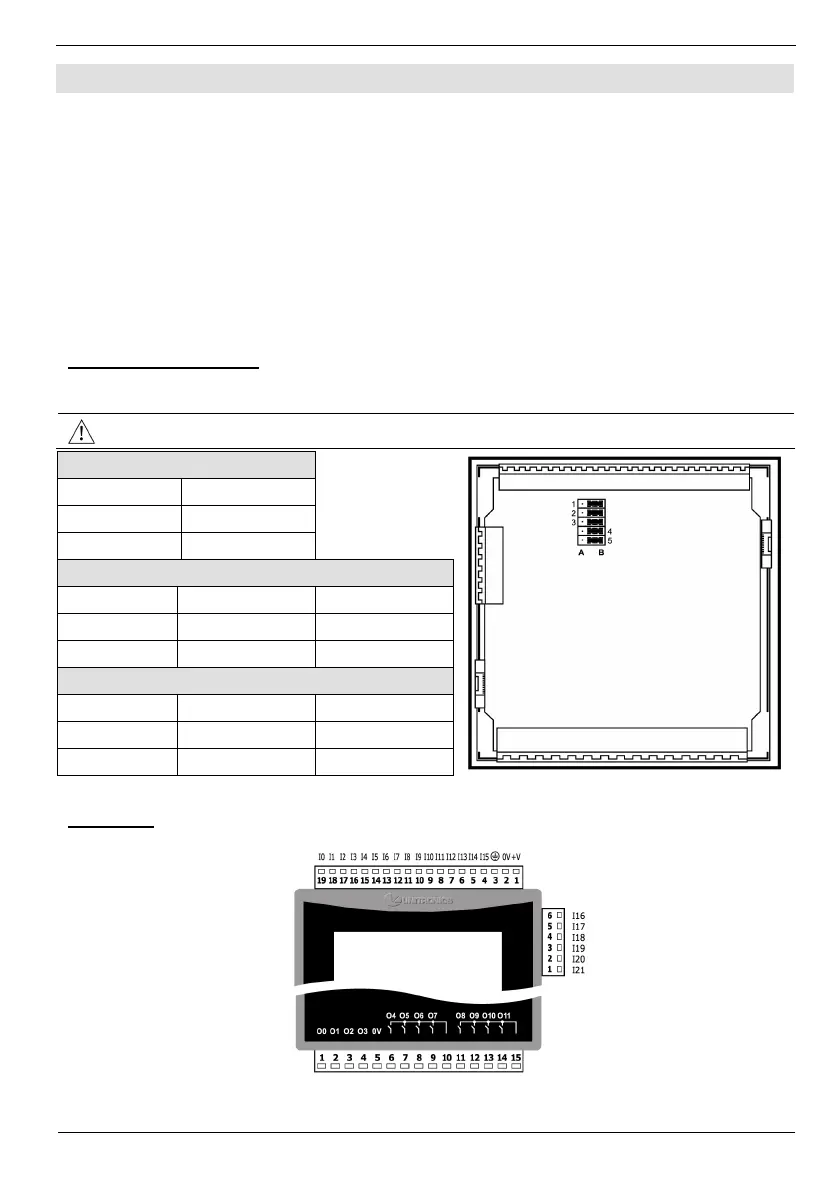

This model comprises a total of 22 inputs and 8 relay, 4 npn outputs. Input functionality can be
adapted as follows:
1. 22 inputs may be used as digital inputs. They may be wired, in a group, and set to either
npn or pnp via a single jumper.
In addition, according to jumper settings and appropriate wiring:
- Inputs 14 and 15 can function as either digital or analog inputs.
- Inputs 0, 2, and 4 can function as high-speed counters, as part of a shaft-encoder,
or as normal digital inputs.
- Inputs 1, 3, and 5 can function as either counter reset, as part of a shaft-encoder,
or as normal digital inputs.
- If inputs 0, 2 and 4 are set as high-speed counters (without reset), inputs 1, 3 and 5
can function as normal digital inputs.
Input Jumper Settings
The tables below show how to set a specific jumper to change input functionality. To access the I/O
jumpers, you must open the controller according to the instructions beginning on page 9.
Incompatible jumper settings and wiring connections may seriously damage the controller.
Digital Inputs 0-21: Set Type
Set to JP3 (all Inputs)
npn (sink) A
pnp (source)* B
Inputs 14/15: Set as Digital or Analog
Set to JP1 (Input 14) JP2 (Input 15)
Digital* B B
Analog A A
Analog Inputs AN0/AN1: Set Type
Set to JP5 (AN0) JP4 (AN1)
Voltage A A
Current* B B
*Default settings
I/O Wiring
I/O Configuration
