Unitronics Vision V350-35-TR34 - I;O Wiring Diagrams

V350-35-TR34 Installation Guide
6 Unitronics

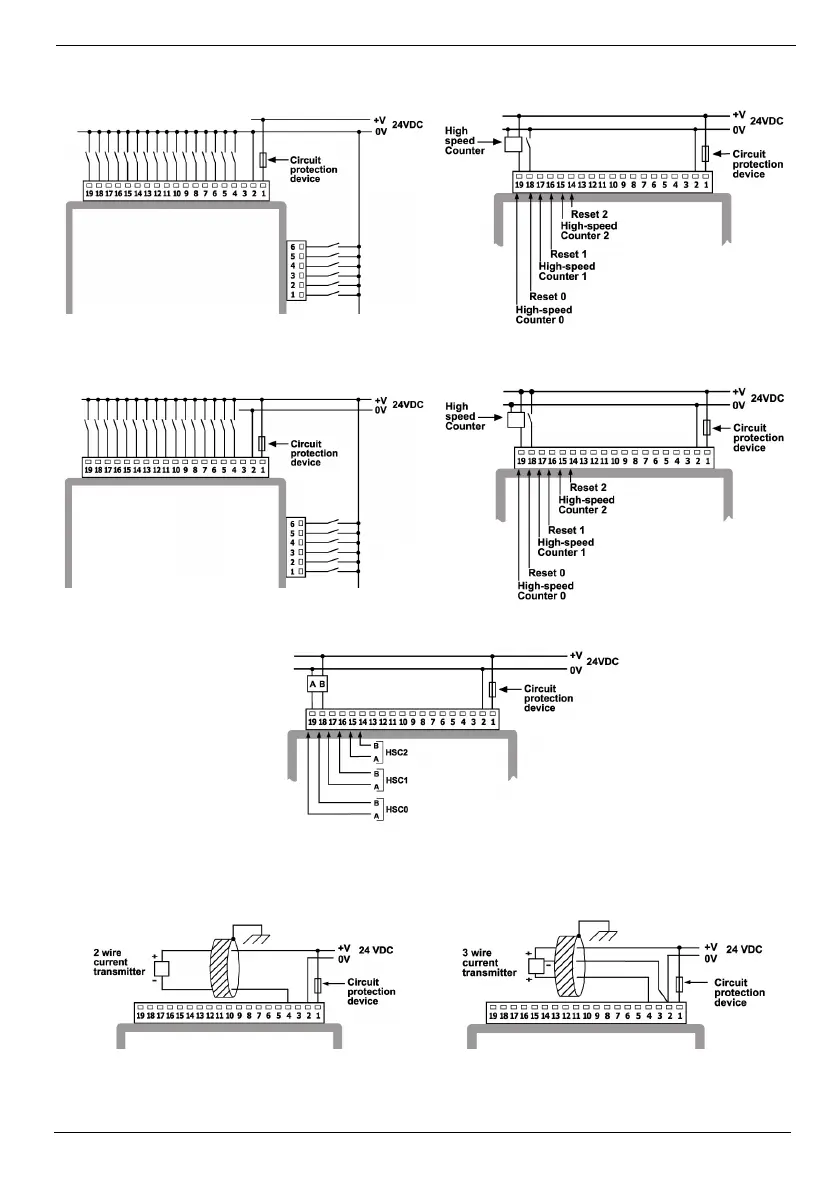

npn (sink) Input Wiring
Input wiring HSC input wiring
pnp (source) Input Wiring
Input wiring HSC input wiring
Shaft-encoder
Analog Input Wiring
Analog input wiring, current (2 wire) Analog input wiring, current (3-wire)
