Universal Audio 6176 Manual&Nbsp;

10
1176LN Operating Instructions
The 1176LN is an all discrete solid state FET based compressor/Limiter featuring
feedback style compression and offers extremely fast attack times.
1176LN Front Panel (right side)
RELEASE
Slow Fast
1
2
3
4
5
6
7
8
9
UNIVERSAL AUDIO
6176
610B Tube Preamplifier
1176LN Limiting Amplifier
RATIO
1
4
8
12
20
METER
PRE
GR
COMP
ATTACK
Slow Fast
1
2
3
4
5
6
7
8
9
INPUT
0 10
1
2
3
4
5
6
7
8
9
OUTPUT
0
1
2
3
4
5
10
6
7
8
9
ALLBP
ATTACK RELEASE METER
METER
ADJUST
INPUT OUTPUT RATIO

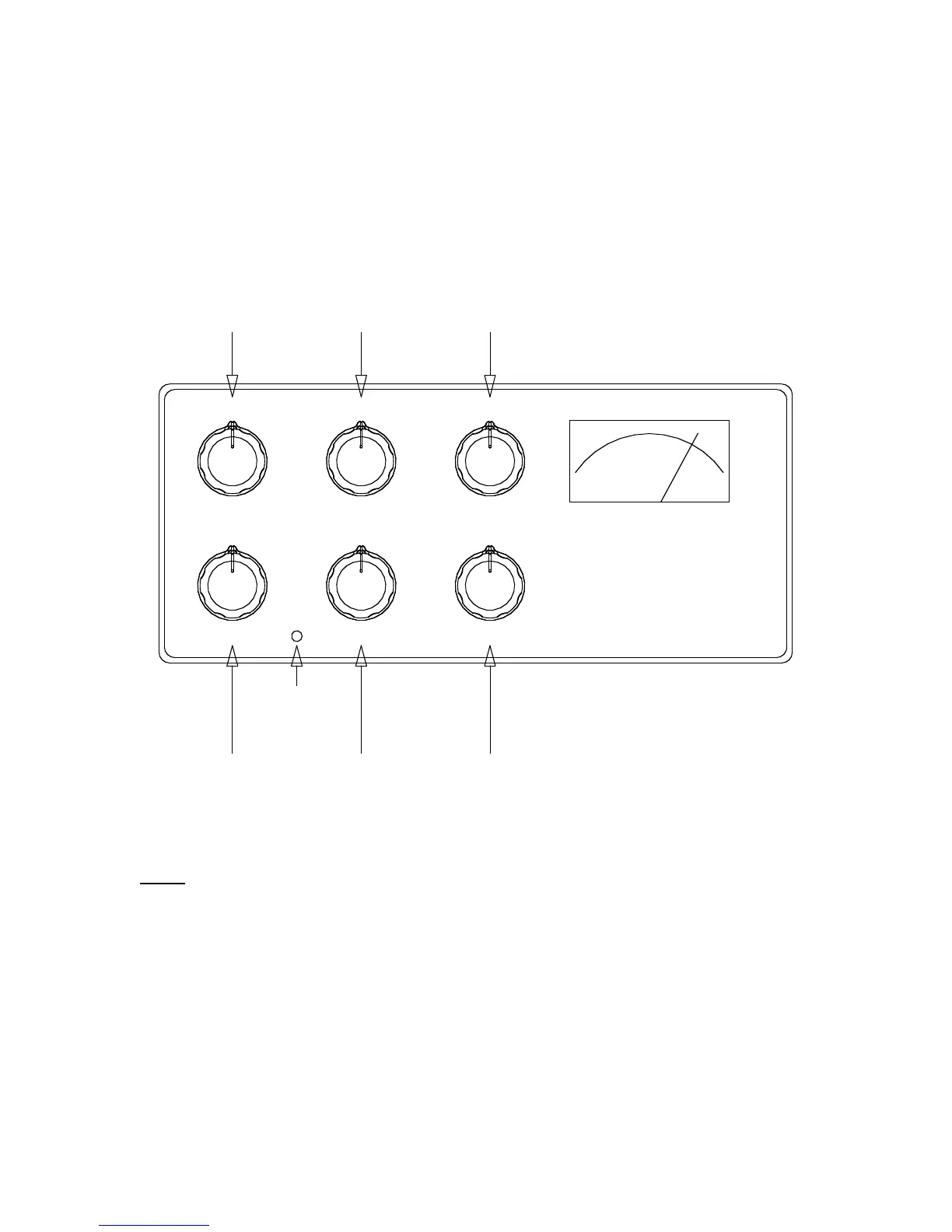

Figure 3: 1176LN Front Panel
Input
The 1176LN Input control determines when the compressor receives a signal “loud”
enough to trigger gain reduction as well as total output level. Higher settings will increase
the relative amount of compression.
In order to set the limiter to provide a specific amount of compression, first adjust the
Input and Output controls to a fully counterclockwise (CCW) position. Set the Attack
and Release controls to “5” so that Gain Reduction is enabled. Set the Meter switch to
it’s center position so that the meter reads Gain Reduction (GR). Rotate the Input Level
control CW until the desired amount of gain reduction is achieved.

Universal Audio 6176 Specifications

General

Type	Channel Strip
Channels	1
Preamp Type	Tube
Polarity Reverse	Yes
Preamp Section	610 Preamplifier
Compressor Section	1176 Compressor
Frequency Response	20Hz - 20kHz
Controls	Gain, Output
Power Requirements	100-240V, 50-60Hz
Inputs	Mic, Line
Outputs	1 x XLR, 1 x 1/4"
Phantom Power	Yes
610 Preamplifier	Yes
1176 Compressor	Yes
High Pass Filter	80Hz
Tube Type	12AX7
Voltage	100-240V
