UAD‑2 Live Rack Manual Chapter 3: System Setup 31
Multi-Unit Wiring with SoundCraft Vi Consoles
The diagram below illustrates connections for 2, 3, or 4 UAD‑2 Live Rack units for up to
64 MADI channels of UAD plug‑in processing (16 MADI channels for each UAD‑2 Live
Rack unit).
Cables Required (not included):
• One Thunderbolt 3 cable between UAD‑2 Live Rack and the computer for software
control
• One Thunderbolt 3 cable for each additional UAD‑2 Live Rack for unit interlinks
• One MADI optical cable between the MADI device and the first UAD‑2 Live Rack
for digital audio send
• One MADI optical cable between the last UAD‑2 Live Rack and Vi console for
digital audio return
• One MADI optical cable for each additional UAD‑2 Live Rack for unit interlink
Note: Duplex cables cannot be used with multi-unit configurations.
• One Cat 5 Ethernet cable between host Mac and Vi console for snapshot control
• One Belkin USB‑C to Gigabit Ethernet Adapter for Vi console Ethernet
• Apple store part number HJKF2ZM/A or MD463LL/A
• Belkin store part number F2CU040dsWHTAPL

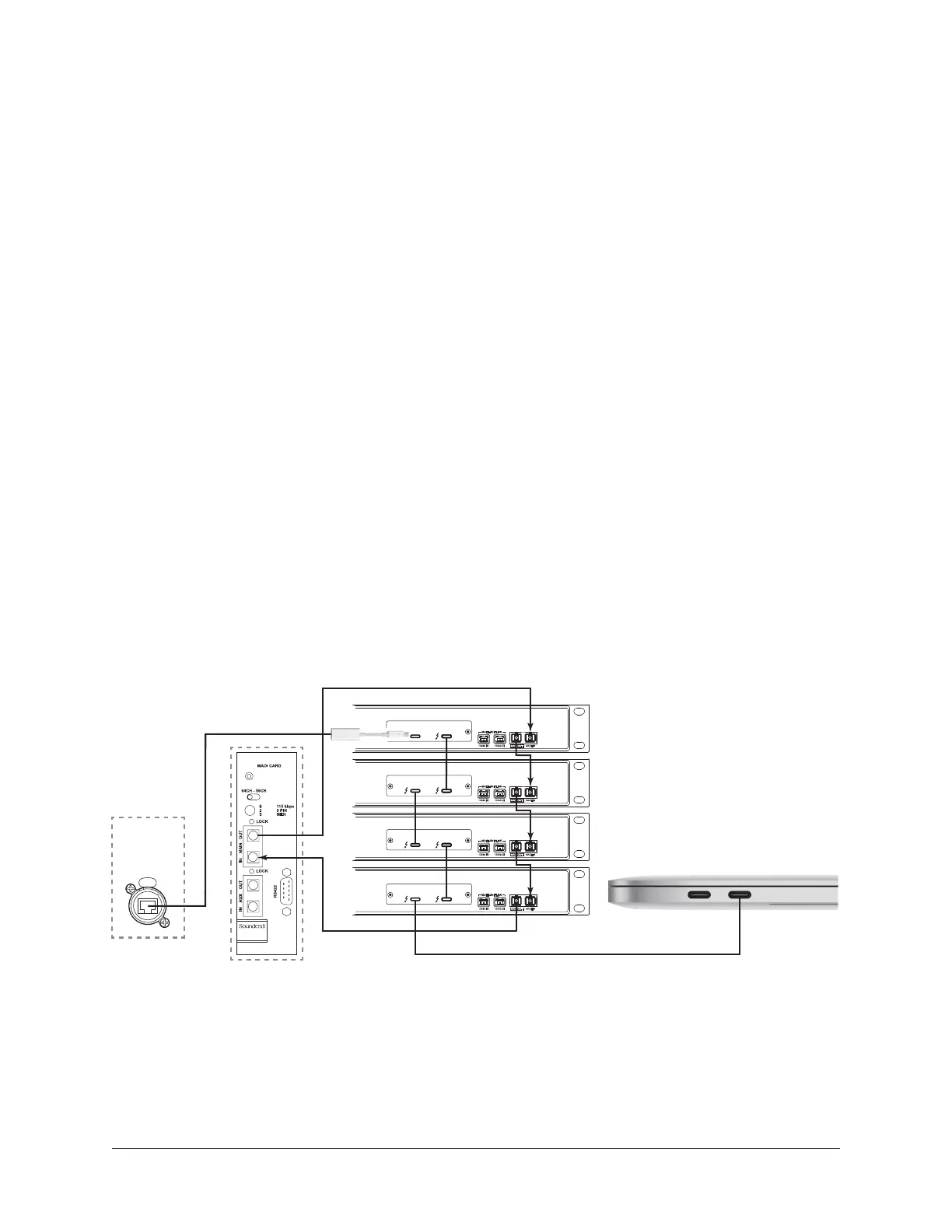

System connections for multi-unit setup with Soundcraft Vi console
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
MADI Device
MADI Optical SC
Thunderbolt 3
UAD-2 Live Rack Unit
UAD-2 Live Rack Unit
UAD-2 Live Rack Units
Thunderbolt 3 Mac
Thunderbolt 3 Mac
MADI Device
MADI Optical SC
Thunderbolt 3
Soundcraft Vi
MADI Ports
MADI Optical SC
Cat 5 Ethernet
Thunderbolt 3
Soundcraft Vi
Console Surface
Rear Panel
Vi Surface
Rear Panel
UAD-2 Live Rack Unit
UAD-2 Live Rack Units
Thunderbolt 3 Mac
Thunderbolt 3 Mac
USB-C
Ethernet
Adapter
Vi MADI Ports
MADI Optical SC
Cat 5 Ethernet
Thunderbolt 3
HiQnet™
Ethernet
Port
HiQnet™
Ethernet
Port
IN–MADI–OUT
IN–MADI–OUT
IN–MADI–OUT
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
MADI Device
MADI Optical SC
Thunderbolt 2
cable
Thunderbolt 2 Mac
Thunderbolt 3 to
Thunderbolt 2 Adapter
UNIVERSAL AUDIO, INC.
1394b 1 1394b 2
MADI IN
Soundcraft Vi
MADI Ports
MADI Optical SC
Cat 5 Ethernet cable
Thunderbolt 2
cable
Soundcraft Vi
Console Surface
Rear Panel
UAD-2 Live Rack Unit
Thunderbolt 2 Mac
USB-C
Ethernet
Adapter
Thunderbolt 3 to
Thunderbolt 2 Adapter
HiQnet™
Ethernet
Port

Universal Audio UAD-2 Live Rack Specifications

General

Plug-in Compatibility	UAD Powered Plug-Ins
Operating System Support	macOS
DSP	SHARC
Connectivity	2x Thunderbolt 3 ports
Sample Rates	44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Form Factor	Rackmount
Latency	< 2 ms
Word Clock	BNC I/O
Software	UAD software
Processing Power	Quad SHARC processors
Plugin Instances	Varies depending on plug-in
Supported DAWs	Pro Tools, Logic Pro, Cubase, Ableton Live
