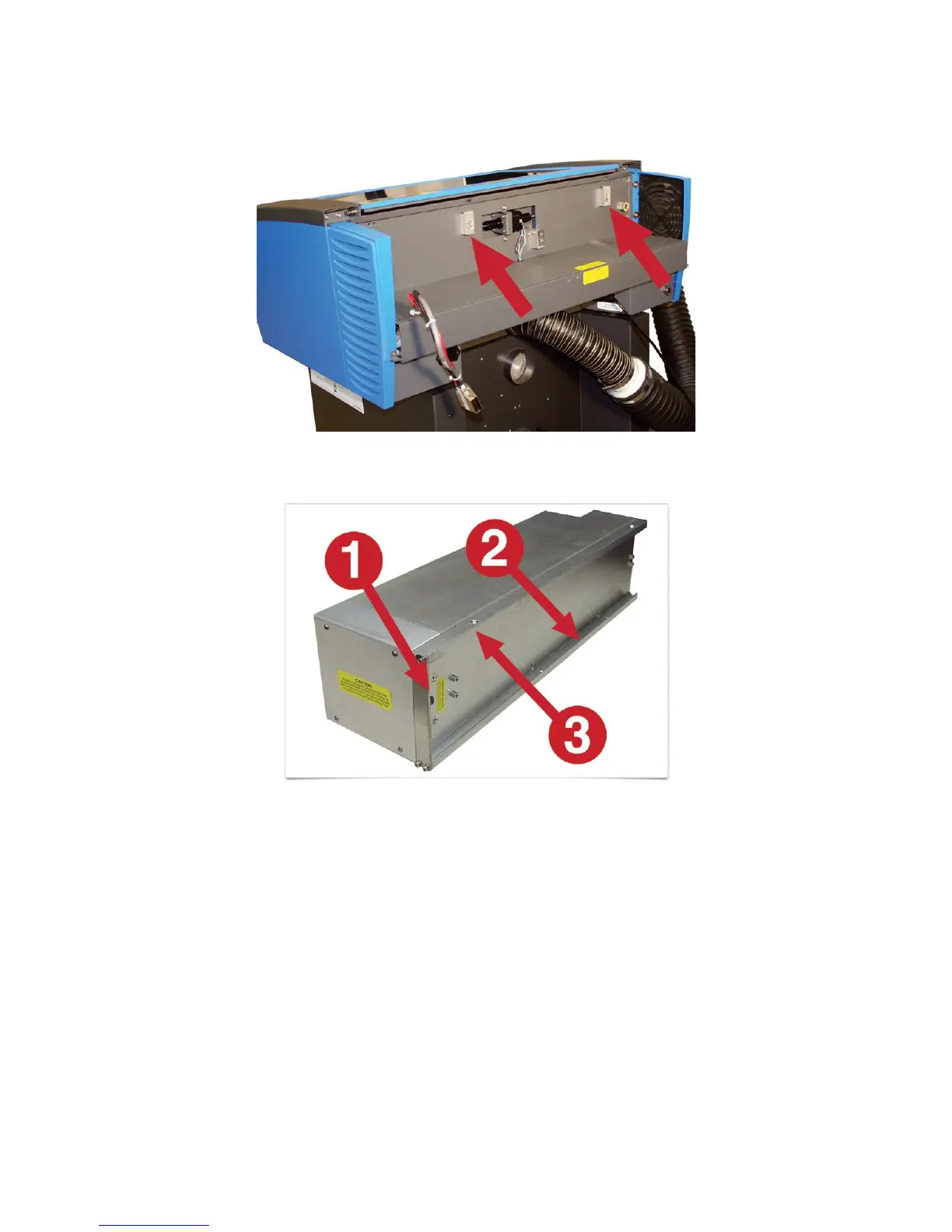

b. Locate the two mounting blocks shown with arrows below and the laser connector on the left side
of the laser compartment.
c. Locate the “V” groove along the upper (3) and lower (2) part of the laser cartridge base plate and
the alignment plate (1) at the end of the base plate.
