Page 6
PCL-300 PC UPGRADE LINK
Connecting to either the MX-350 or the MX-650

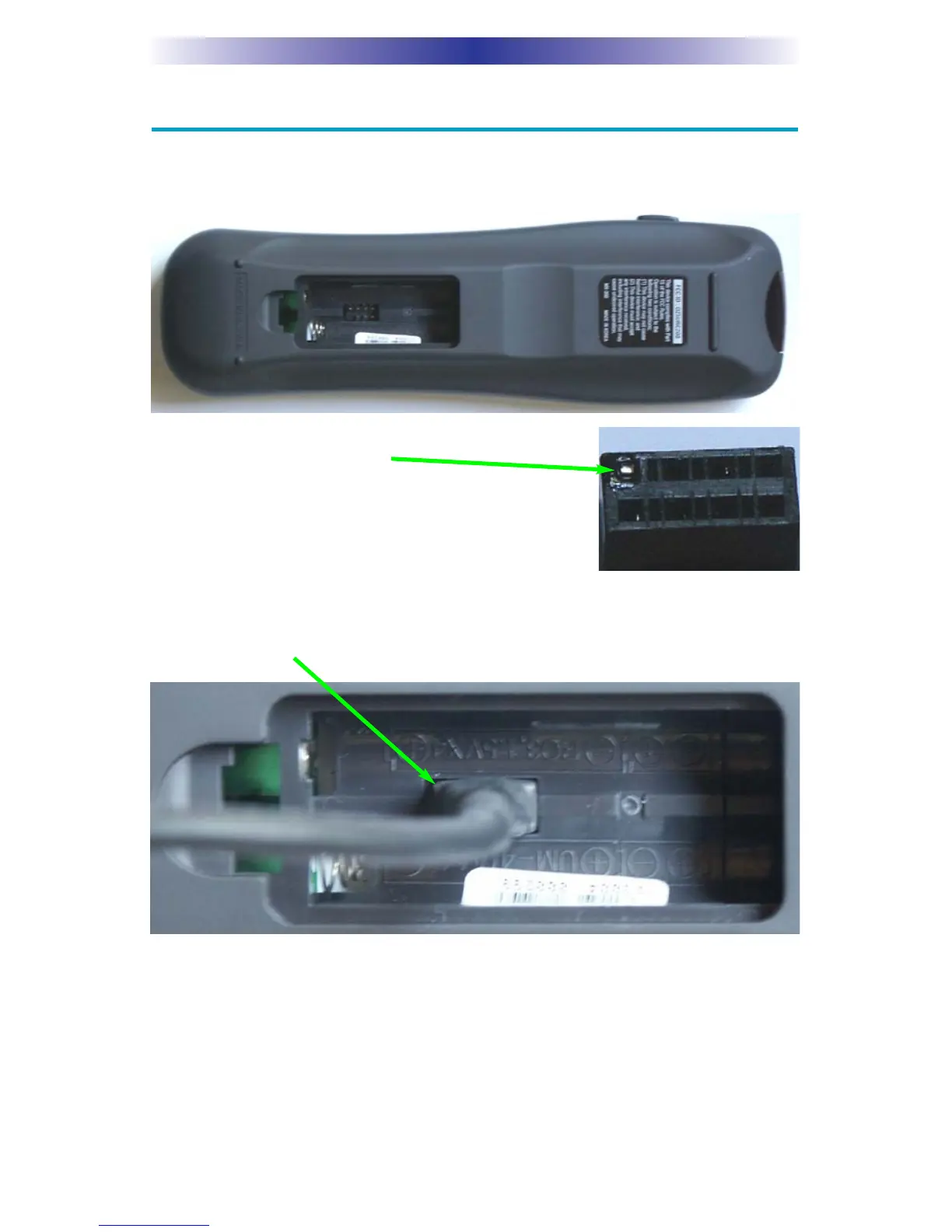

1. Open the battery compartment of the remote and remove at least two
batteries to reveal the multi pin connector for the PCL-300.
2. Note that one pin on the connector attached to
the PCL-300 is filled in.
Orient the connector of the PCL-300 so that the
filled in pin will match the pin pattern of the
socket inside the remote control.
3. Carefully fit the plug from the PCL-300 into the socket on the remote
control.
