STEP BY STEP
Note: Drawings are indicative and must be use as support for
assembly process.
Assembly of the blades (A)

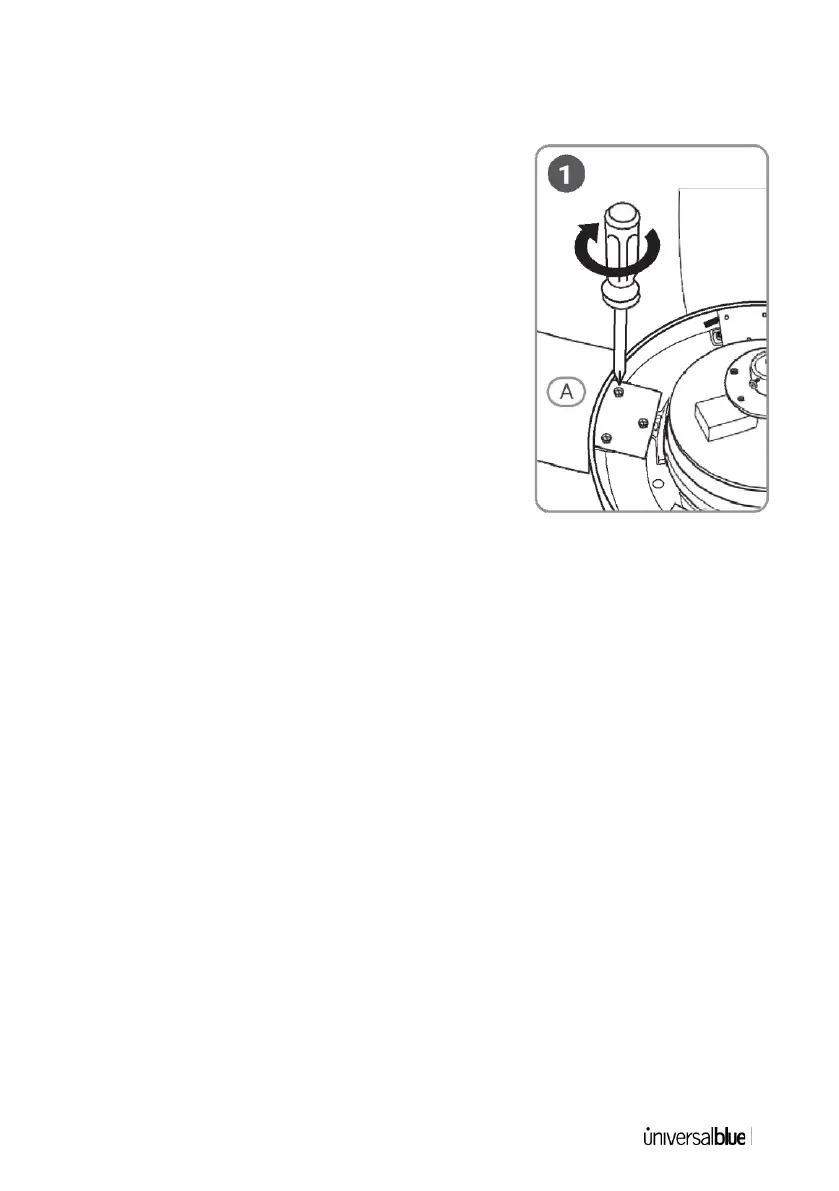

1. Insert the blades through the slots
and align the three holes in the
blades with the three holes in the
motor body (B) and tighten with the
two screws provided. The blade is
designed to fit perfectly. The
screws must be vertical to the
blade. Tighten all screws to the
blades evenly to prevent fan sway.
Mounting the bulb holder structure (C)
2. Unscrew the 3 screws on the lower part of the lamp structure
(B).
3. Place the bulb holder structure (C) by matching the holes with
the holes on the lamp structure (B) and return the screws (I) to
their original position.
