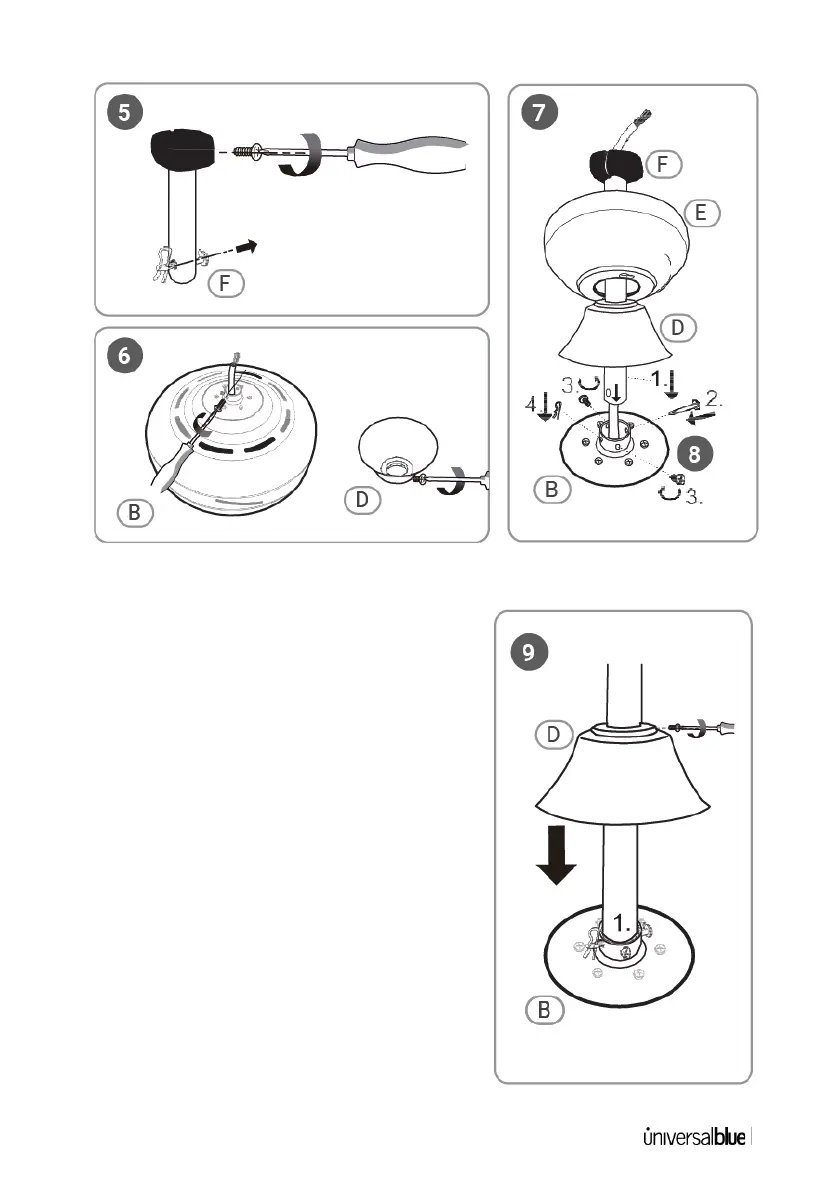

9. Place the lower canopy (D) on the
lamp structure (B) and tighten the
lower canopy screw (D).
10. Place the bar and screw into the
semi-sphere of the extension bar,
which you had previously
removed.
Assembling the fan to the wall
11. Unscrew the side screws of the
receiver bracket (H) as shown in
the figure below.
12. Make the necessary holes in the
wall so that the receiver bracket
(H) can be fixed to the ceiling.
Note the previously listed
annotations referring to roof
types.
