17. Then use the terminal strip on the receiver bracket (H) to insert
the 2 cables coming out from the other side of the signal
receptor (J).
18. The yellow and green (earth) cable coming out of the receiver
bracket (H) together with the cable of the same colour coming
out of the support rod (F), must be inserted through the same
fastening of the terminal strip (marked with the earth connection
symbol).

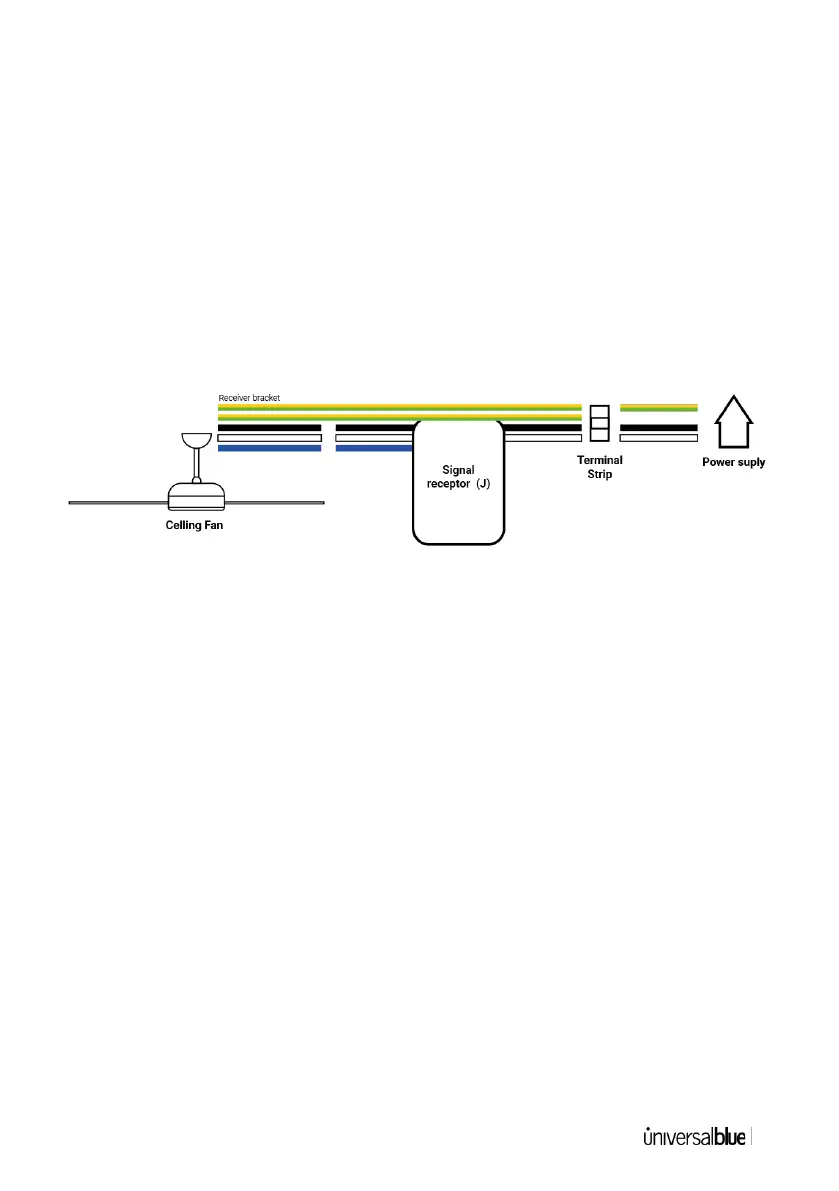

19. Using the strip, connect the cables on the wall to the fan,
following the colours.
20. Assemble the upper canopy (E) on the receiver bracket (H) with
the screws previously removed.
