Univex 6509 User Manual

6509
CAPACITOR PANEL
220-240V, 50/60HZ, 1PH

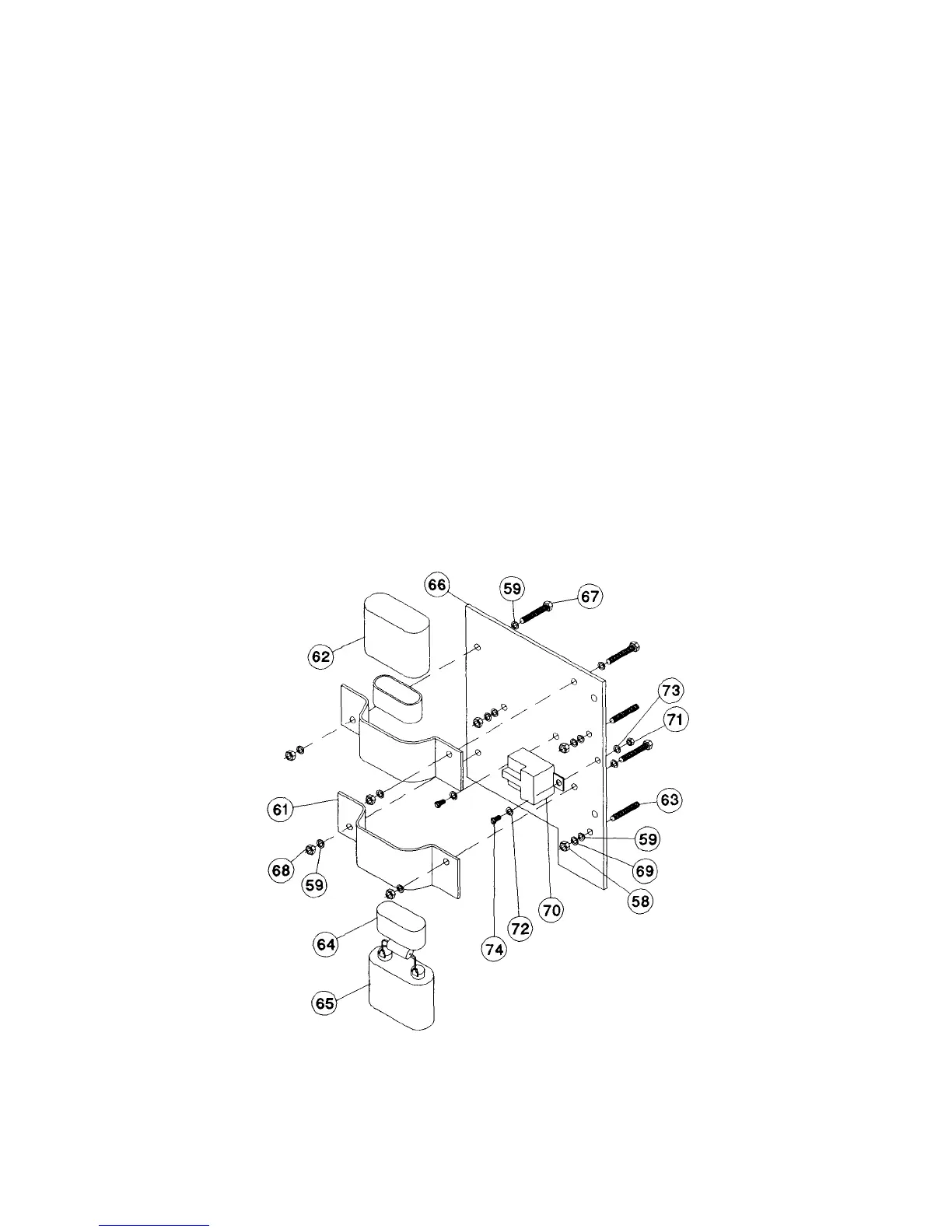

FIGURE 4A
ILLUS. NO. PART NO. DESCRIPTION QTY.
58 7120017 NUT, HEX M5-0.8 3
59 1200076 WASHER, FLAT NO. 10 11
60
NOT USED
61 4400224 BRACKET, CAPACITOR 220-240V 2
62
7120051
CAPACITOR, 5MFD
1
63 6509113 STUD, M5-0.8 X 25MM 3
64
7120008
BOOT, CAPACITOR
2
65
7120056
CAPACITOR WITH RESISTOR
1
66 7120052 PANEL, CAPACITOR 1
67 1200415 SCREW, HEX HD 10-32 X 1 1/4 4
68
1200060
NUT, HEX
10
-
32
4
69 4400065 WASHER, LOCK NO. 10 3
70
7120055
RELAY
1
71
120042
9
NUT, HEX
6
-
32
2
72 1200093 WASHER, FLAT NO. 6 2
73 1200430 WASHER, LOCK NO. 6 2
74 4400204 SCREW, PAN HD 6-32 2
PAGE 20
