Univex 6509 User Manual

6509
CAPACITOR PANEL
100V, 50/60HZ, 1PH

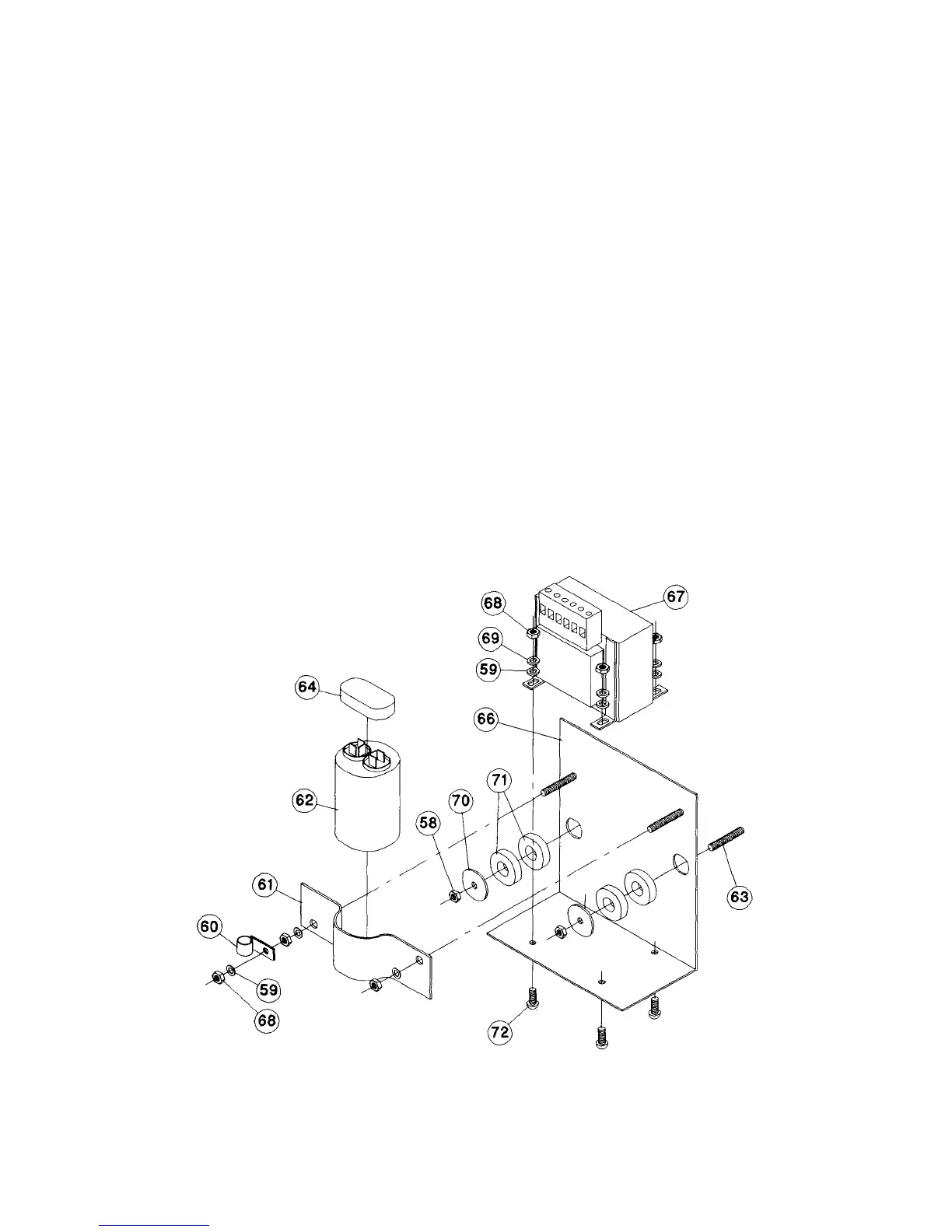

FIGURE 4B
ILLUS. NO. PART NO. DESCRIPTION QTY.
58 7120017 NUT, M5-0.8 2
59 1200076 WASHER , FLAT NO. 10 7
60 4400101 CLAMP, CABLE 1
61 4400024 BRACKET, CAPACITOR 1
62 7120001 CAPACITOR, 20MFD, 370V, 50/60HZ, 115V 1
63
6509113
STUD,
M5
-
0.8
X 25MM
2
64
7120008
BOOT, CAPACITOR
1
65
NOT USED
66 7100118 BRACKET, TRANSFORMER/CAPACITOR 1
67
7100117
TRANSFORMER
1
68 1200060 NUT, HEX 10-32 7
69 4400065 WASHER, LOCK NO. 10 4
70 4400414 WASHER, FENDER 1/4 ID 2
71
4400191
WASHER, RUBBER
4
62 1200012 SCREW, PPHD 10-32 X 1/2 4
PAGE 21
