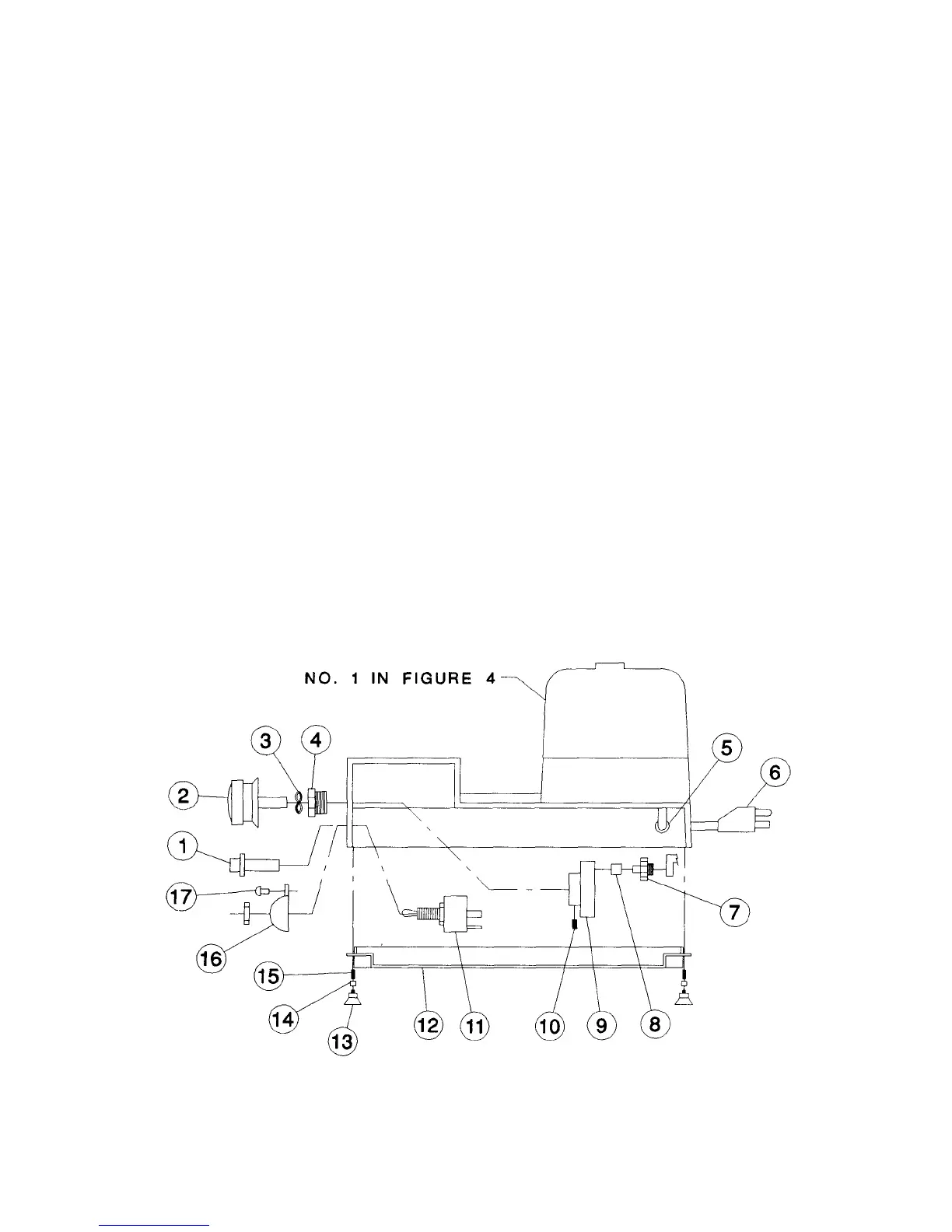

BASE & SLICE ADJUSTMENT KNOB ASSEMBLY FIGURE 5
ILLUS. NO. PART NO. DESCRIPTION QTY.
1 7120014 LIGHT, 125V 1
7120041 LIGHT, 220-240V 1
2 6509084 KNOB, SLICE ADJ 1
3 6509086 WASHER, SLICE ADJ 1
4
6509087
NUT, SLICE ADJ
1
5
1012042
STRAIN RELIEF
1
6 4400053 ELECTRIC CORD, 115V 1
ELECTRIC CORD, 220-240V 1
7
6509090
HOLDER, CAM INSERT
1
8 6509091 INSERT, CAM 1
9
6509088
CAM, SLICE ADJ
1
10 6509089 SET SCREW, M6-1.0 X 14, CUP POINT 1
11 7120009 SWITCH, 115V, 220-240V 1
12 6090006 COVER, BOTTOM 1
7120127 COVER, BOTTOM, (100V ONLY) 1
13 6509093 FEET, RUBBER SUCTION 4
14 7120128 SPACER, LEG, (100V ONLY) 4
15 7120129 STUD, LEG, M6-1.0 X 20MM, (100V ONLY) 4
16 7120011 GUARD, SWITCH 1
17
4400081
PIN, SWITCH GUARD
1
18 1024010 LABEL, UNIVEX (NOT SHOWN) 1
19 4400113 LABEL, STOP-UNPLUG (NOT SHOWN) 1
20
4400409
LABEL, DANGER (NOT SHOWN)
1
PAGE 22
