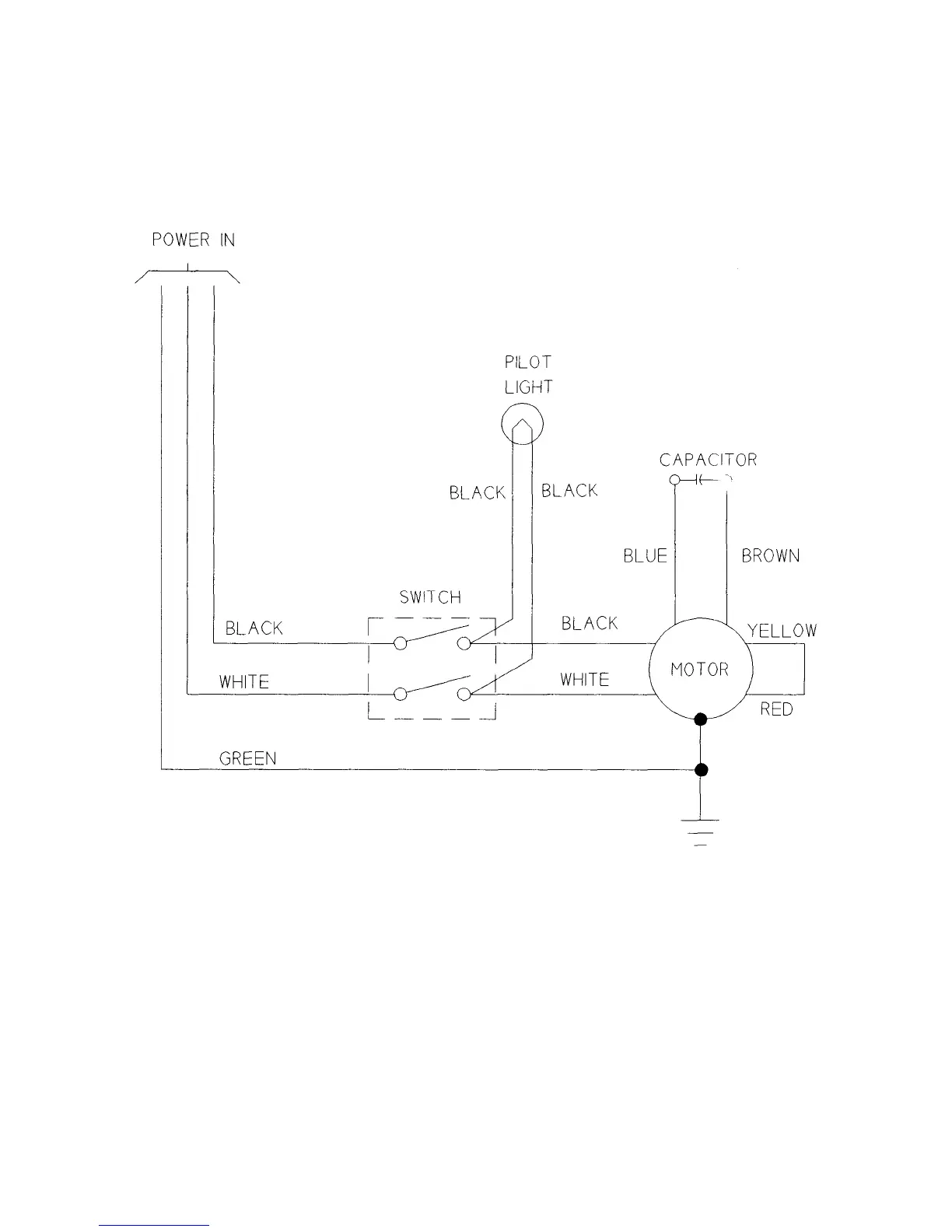

WIRING DIAGRAM
MODEL 6509, 115V, 50/60HZ, 1PH
FIGURE 6
IMPORTANT
Warning: Before making electrical connections, check the specifications on the data plate to assure they agree
with those of your electrical service.
Whenever cleaning or maintenance is being performed, DISCONNECT electrical cord.
