Univex VS2000 Instruction Manual

When ordering, specify #12 tapered hub or Univex rear hub. The Univex rear hub does not have
accommodation for a locating pin (17), and will only fit older Univex manufactured power source
equipment.
Page 12
VS2000

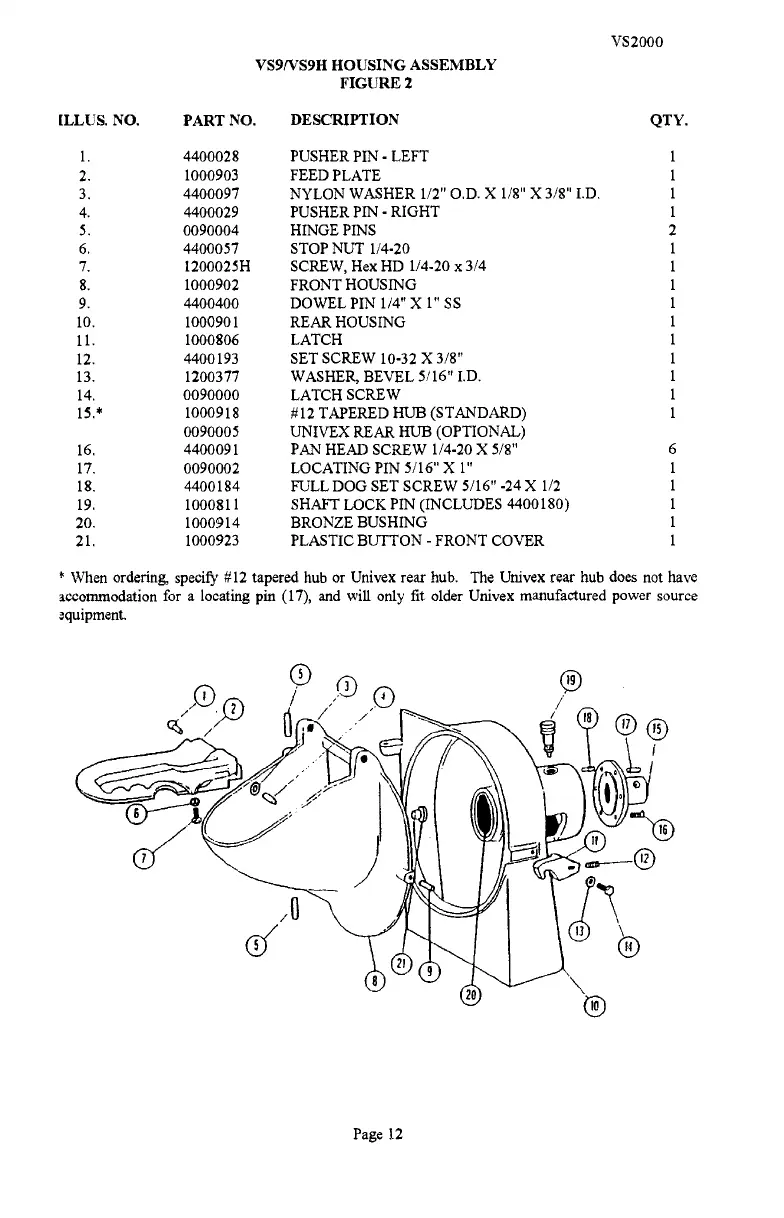

VS9IVS9H HOUSING ASSEMBLY
FIGURE 2
ELLUS. NO.
PART NO. DESCRIPTION
QTY.
1. 4400028 PUSHER PIN. LEFT
2.
1000903 FEED PLATE
3.
4400097 NYLON WASHER 1/2" O.D. X 1/8" X 3/8" ID.
4.
4400029
PUSHER PIN - RIGHT 1
5.
0090004 HINGE PINS 2
6. 4400057 STOP NUT 1/4-20 1
7. 1200025H
SCREW, Hex HD 1/4-20 x 3/4
1
8.
1000902
FRONT HOUSING
9.
4400400 DOWEL PIN 1/4" X 1" SS 1
10.
1000901
REAR HOUSING
1
11.
1000806
LATCH 1
12.
4400193
SET SCREW 10-32 X 3/8"
1
13.
1200377
WASHER, BEVEL 5/16" ID.
1
14.
0090000
LATCH SCREW
1
15.*
1000918
#12 TAPERED HUB (STANDARD)
1
0090005 UNI VEX REAR HUB (OPTIONAL)
16. 4400091 PAN HEAD SCREW 1/4-20 X 5/8"
6
17.
0090002 LOCATING PIN 5/16" X 1"
1
18. 4400184
FULLDOGSETSCREW5/16"-24X1/2
1
19.
1000811
SHAFT LOCK PIN (INCLUDES 4400180)
1
20. 1000914
BRONZE BUSHING
1
21.
1000923 PLASTIC BUTTON - FRONT COVER
1
