ALK3NMEI4T
PN LOCATiNG
HOLE
COVER CAP
Remove the chrome cover cap from the power takeoff hub. Carefully lift the VS9 and insert the square
milled shaft end into the hub intake port (See diagram above), while holding the VS9 at the angle
pictured below.
Slide the VS9 forward until the square milled shaft end firmly seats in the PTO adapter [Diagram 3].
Gently twist the VS9 to a fully upright position, slide locating pin [Figure 2 (17)] into PTO locating
hole and snug the thumb screw [Diagram 3 ].
NOTE: Only the #12 tapered hub is fitted with a
locating pin. The VS9 is now ready to process product.
DIAGRAM 4
MOUNTING ANGLE
(NOT OPERATING ANGLE)
Page 5
PTO
ADAPTOR
THUMB
SCREW
VS2000

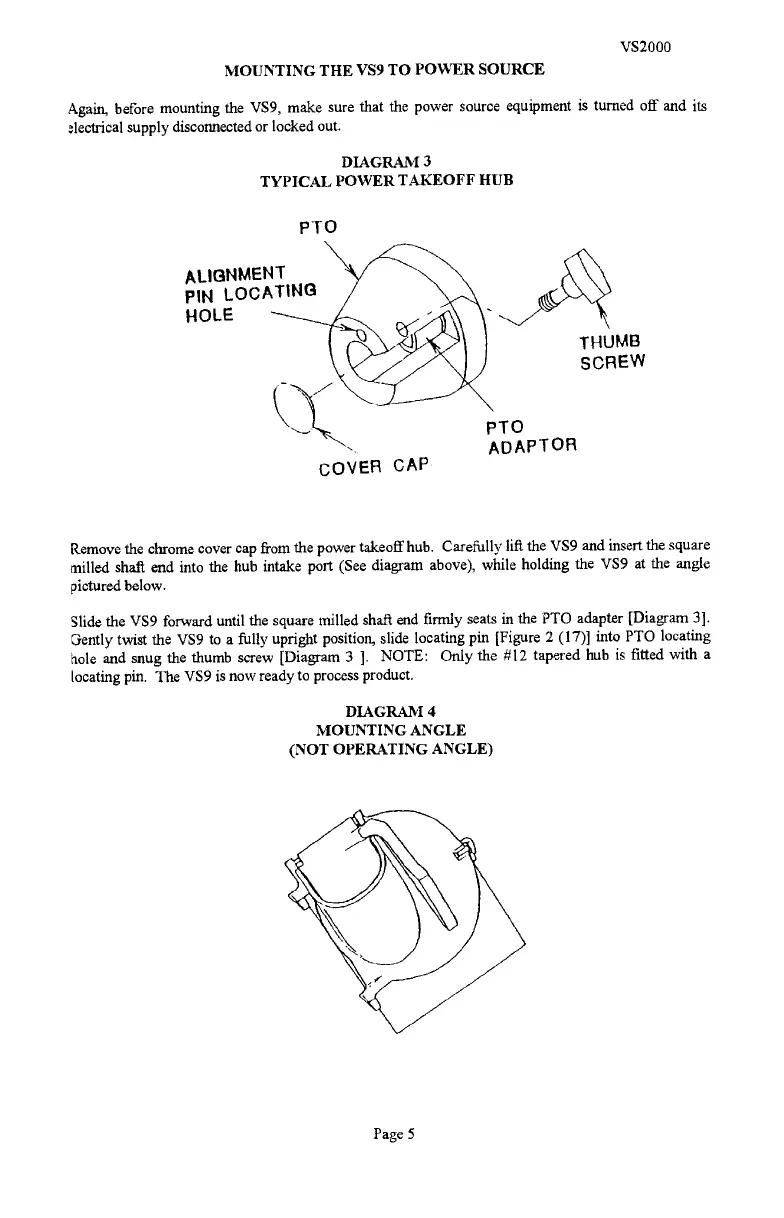

MOUNTING THE VS9 TO POWER SOURCE
Again, before mounting the VS9, make sure that the power source equipment is turned off and its
electrical supply disconnected or locked out.
DIAGRAM 3
TYPICAL POWER TAKEOFF HUB
PTO
