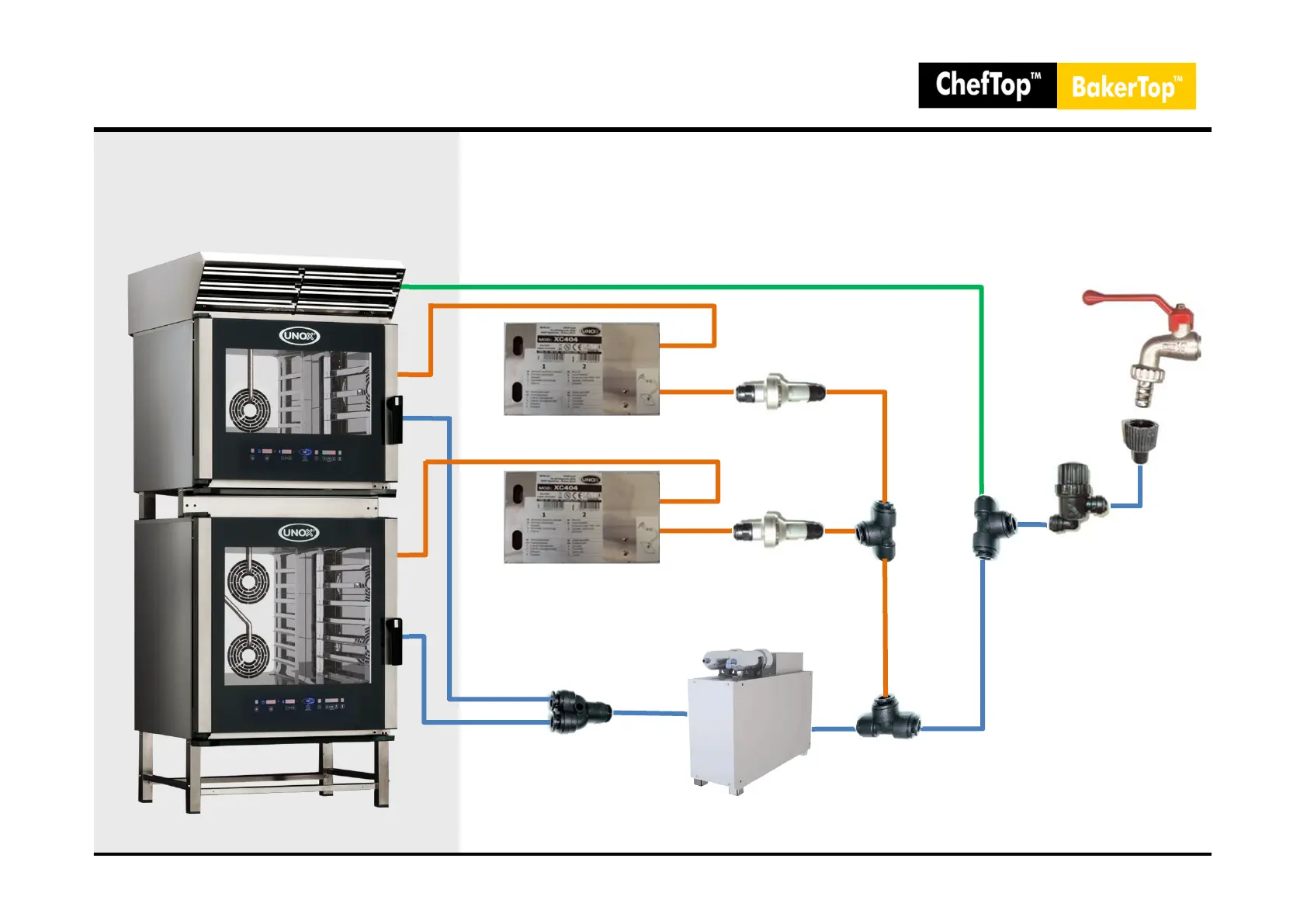

6. STEAM.Maxi™ Water Inlet
Connections examples
- 2 Ovens, Hood, 2 Washing System
and Osmosis Kit:
EL1370A0
Pressure
Reducer
EL1020A0
“T” Connection
EL1375A0
Mechanical Filter
RC1210A0
3/4 Straight
Connection Ø8
XC235
Osmosis Kit
EL1020A0
“T” Connection
XC315
Hood with Steam Condeser
XC405
Washing System
EL1115A0
“Y” Connection
28
